CAMSHAFT/TENSIONER

ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

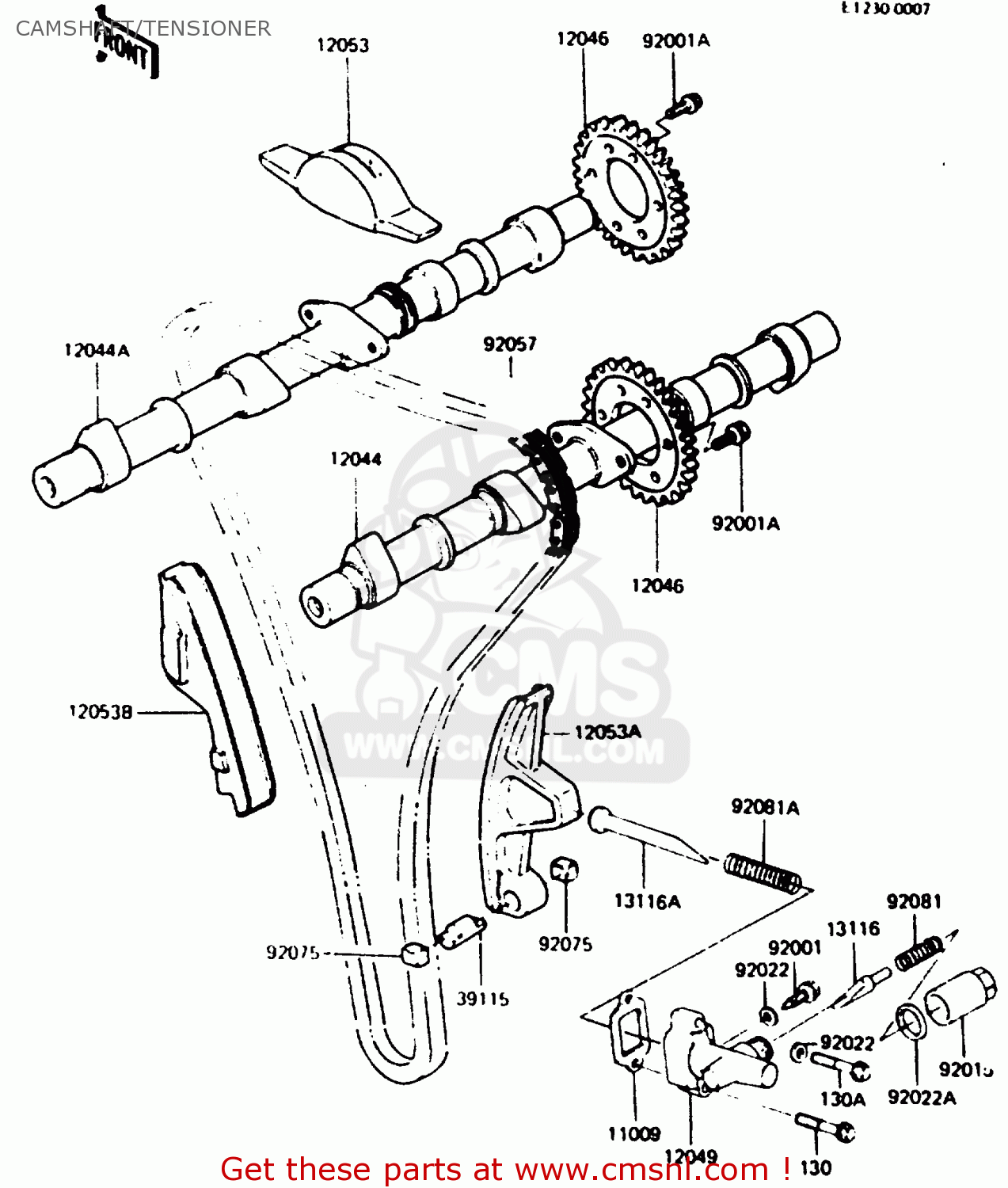

Camshaft/tensioner diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

CAMSHAFT/TENSIONER ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
CAMSHAFT/TENSIONER ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
CAMSHAFT/TENSIONER ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091179
ref: 11009
GASKET,TENSIONER (MCA)
110091179
€ 3.50
12044
12044012
ref: 12044
CAM SHAFT, INLET
12044012
€ 266.00
12044A
12044013
ref: 12044A
CAMSHAFT-VALVE,EXHAUS
12044013
€ 298.50
12046
120461021
ref: 12046
SPROCKET,CAMSHAFT,46T
120461021
€ 55.50
12049
120491015
ref: 12049
TENSIONER,CAM CHAIN
120491015
€ 37.00
12053
120531038
ref: 12053
GUIDE-CHAIN,UPP
120531038
€ 21.00
12053A
120531054
ref: 12053A
GUIDE-CHAIN,RR
120531054
€ 37.00
12053B
120531038
ref: 12053B
GUIDE-CHAIN,UPP
120531038
€ 21.00
13116
131161012
ref: 13116
ROD-PUSH,TENSIONER
131161012
€ 13.00
13116A
131161036
ref: 13116A
ROD-PUSH,TENSIONER
131161036
€ 41.50
39115
12052003
ref: 39115
SHAFT-IDLER,CAM CHAIN
12052003
€ 9.50
92001
920011155
ref: 92001
BOLT,TENSIONER ADJUST
920011155
€ 3.50
92001A
92003208
ref: 92001A
BOLT,SPROCKET FITTING
92003208
€ 2.50
92015
920151100
ref: 92015
NUT,CAP,18MM
920151100
€ 8.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92022A
920221175
ref: 92022A
WASHER,18.3X24X1.4
920221175
€ 3.00
92057
920571033
ref: 92057
CHAIN,CAMSHAFT
920571033
€ 34.50
92075
920751314
ref: 92075
DAMPER,CAM CHAIN GUID
920751314
€ 8.00
92081
920811302
ref: 92081
SPRING,TENSIONER
920811302
€ 3.50
92081A
920811374
ref: 92081A
SPRING
920811374
€ 3.00
130
130G0630
ref: 130
BOLT, FLANGED, 6X30
130G0630
€ 0.50
130A
130G0635
ref: 130A
BOLT, FLANGED, 6X35
130G0635
€ 0.50
