HANDLEBAR
ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

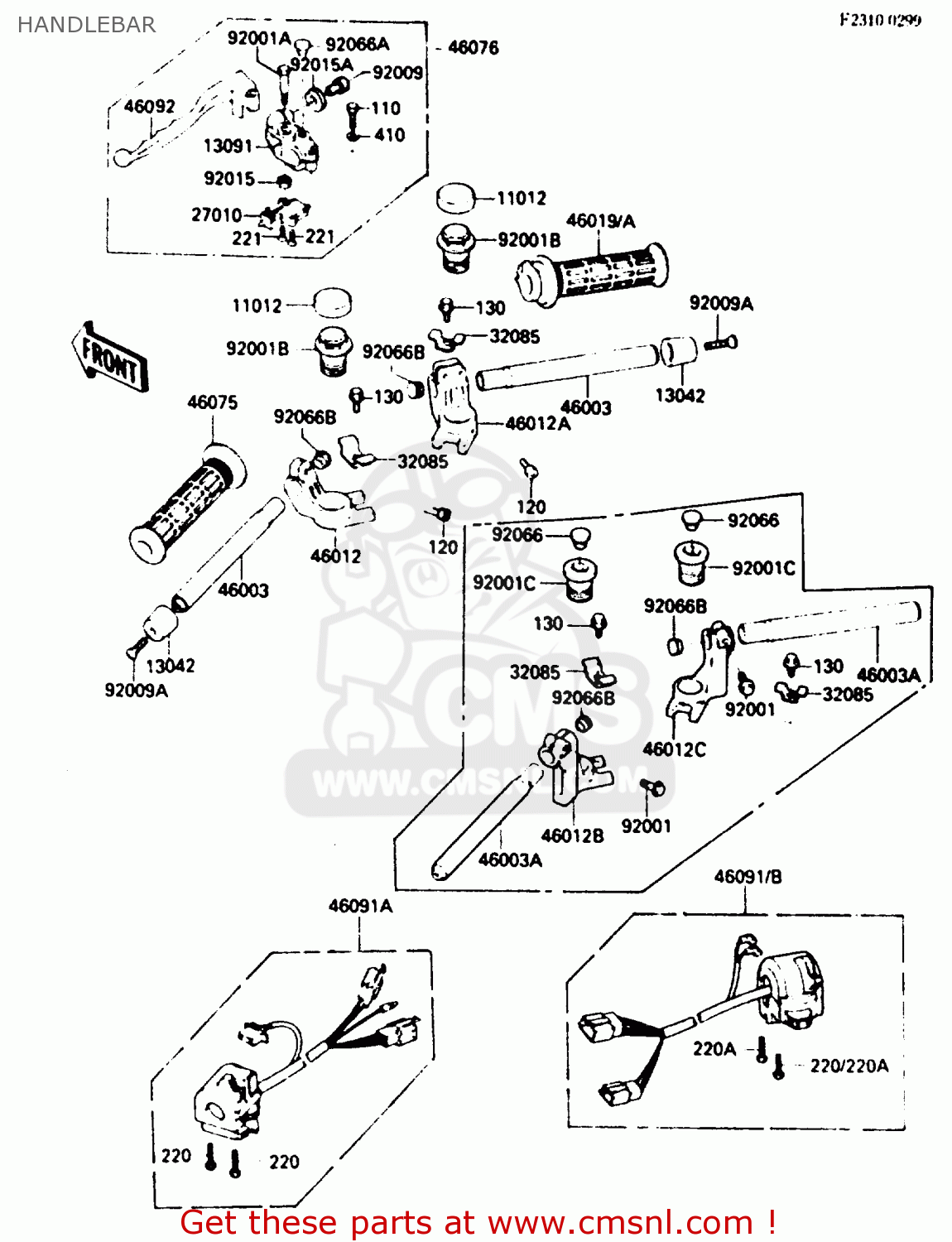

Handlebar diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
HANDLEBAR ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11012
110121069
ref: 11012
EU, GR, IT, NR, SD,
CAP,RUBBER
€ 4.50
13042
130421005
ref: 13042
WEIGHT,HANDLE
€ 21.50
13091
130911185
ref: 13091
HOLDER,CLUTCH LEVER,F
€ 37.50
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
32085
320851092
ref: 32085
STOPPER,HANDLE HOLDER
€ 9.50
46003
460031128
ref: 46003
EU, GR, IT, NR, SD,
HANDLE
€ 46.50
46003A
460031135
ref: 46003A
FA
HANDLE
€ 34.50
46012
460121033
ref: 46012
EU, GR, IT, NR, SD,
HOLDER-HANDLE,LH
€ 65.00
46012A
460121034
ref: 46012A
EU, GR, IT, NR, SD,
HOLDER-HANDLE,RH
€ 71.50
46012B
460121103
ref: 46012B
FR
HOLDER-HANDLE,LH
€ 96.50
46012C
460121104
ref: 46012C
FR
HOLDER-HANDLE,RH
€ 93.00
46019
460191021
ref: 46019
GRIP-ASSY,THROTTLE
€ 24.00
46075
460751028
ref: 46075
GRIP,LH
€ 9.00
46076
460761041
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 73.50
46091
460911215
ref: 46091
HOUSING-ASSY-CNTRL,RH
€ 134.00
46091A
460911271
ref: 46091A
HOUSING-ASSY-CONTROL
€ 148.50
46092
460921050
ref: 46092
LEVER-GRIP,CLUTCH,BLA
€ 13.50
92001
920011508
ref: 92001
FR
BOLT,FLANGED,8X28,BLA
€ 3.00
92001A
920011548
ref: 92001A
BOLT,CLUTCH LEVER,BLA
€ 5.50
92001B
920011665
ref: 92001B
EU, GR, IT, NR, SD,
BOLT,FLANGED,32X35,BL
€ 36.50
92001C
920011912
ref: 92001C
FR
BOLT,HANDLE HOLDER,BL
€ 29.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92009A
920091257
ref: 92009A
SCREW,HANDLE WEIGHT
€ 3.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92066
920661018
ref: 92066
FR
PLUG,END,17.5MM
€ 2.50
92066A
920661077
ref: 92066A
CAP,REAR VIEW MIRROR
€ 3.00
92066B
920661124
ref: 92066B
PLUG,HANDLE
€ 4.00
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
120
120S0625
ref: 120
EU, GR, IT, NR, SD,
BOLT-SOCKET,6X25,BLAC
€ 1.00
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
220
220B0535
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0540
ref: 220A
SCREW-PAN-CROS
€ 2.00
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
