FUEL PUMP
ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

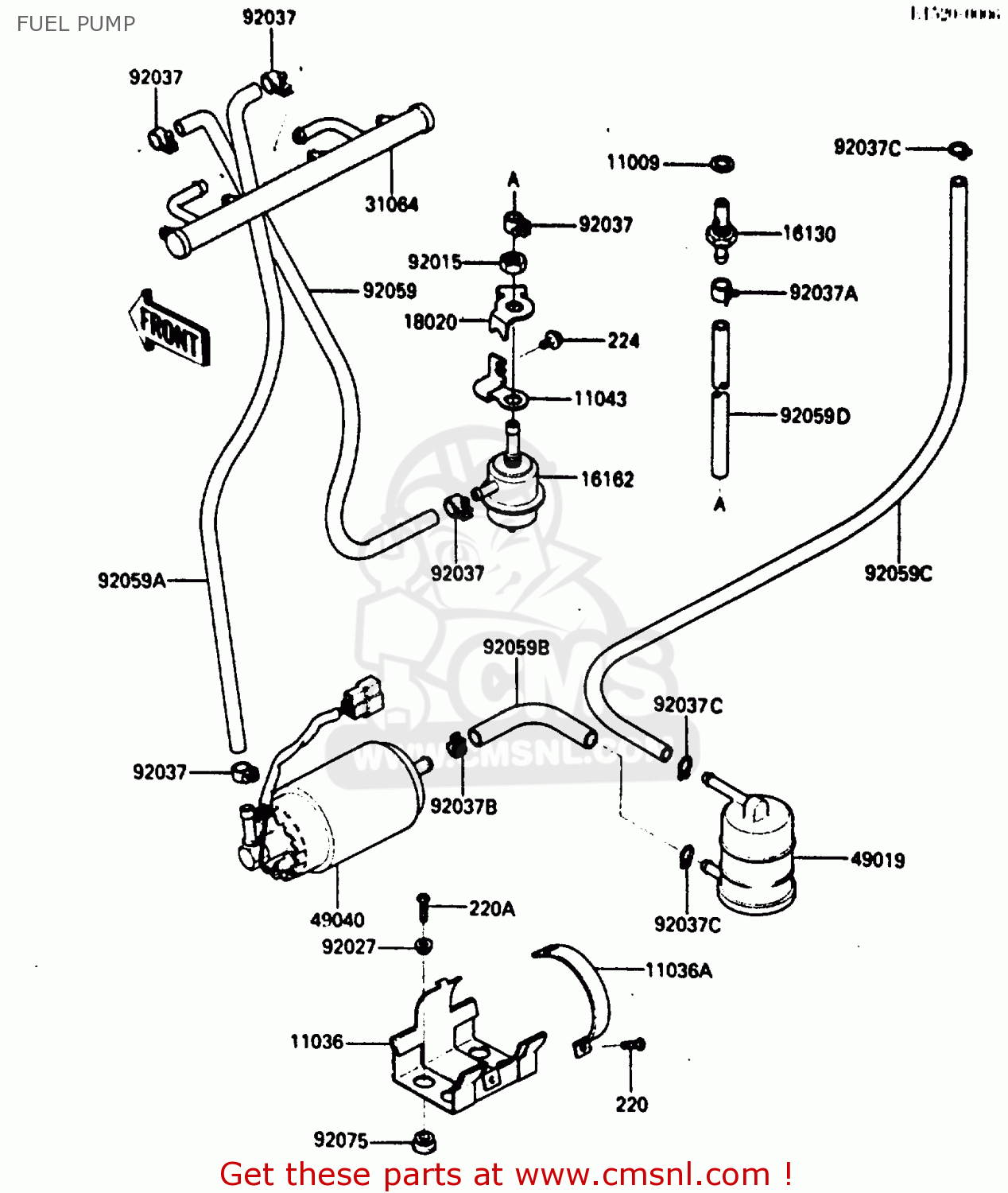

Fuel pump diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
FUEL PUMP ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091182
ref: 11009
GASKET,RELIEF VALVE (NAS)
€ 3.00
11036
110361632
ref: 11036
BRACKET-A,FUEL PUMP,L
€ 17.00
11036A
110361633
ref: 11036A
BRACKET-A,FUEL PUMP,U
€ 8.50
11043
110431230
ref: 11043
BRACKET-B,FUEL REGULA
€ 4.00
16130
161301002
ref: 16130
VALVE-ASSY-RELIEF
€ 47.50
16162
161621051
ref: 16162
REGULATOR-FUEL
€ 161.00
18020
180201125
ref: 18020
BAFFLE,FUEL REGULATOR
€ 3.50
31064
310641005
ref: 31064
PIPE-COMP,FUEL
€ 24.50
49019
490191001
ref: 49019
FILTER,FUEL
€ 24.50
49040
490401051
ref: 49040
PUMP-FUEL
€ 629.00
92015
920151395
ref: 92015
NUT,12MM
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371178
ref: 92037
CLAMP
€ 4.50
92037A
920371181
ref: 92037A
CLAMP
€ 1.00
92037B
920371244
ref: 92037B
CLAMP,FL TUBE,ID=14.8
€ 1.50
92037C
920371271
ref: 92037C
CLAMP,FUEL TUBE
€ 2.00
92059
920591121
ref: 92059
TUBE,7.5X13.5X272
€ 117.50
92059A
920591176
ref: 92059A
TUBE,FUEL PUMP,L=330
€ 117.50
92059B
920591361
ref: 92059B
TUBE,FILTER-PUMP
€ 12.50
92059C
920591362
ref: 92059C
TUBE,7.5X13.5X470
€ 75.00
92059D
920591363
ref: 92059D
TUBE,7.5X13.5X190
€ 117.50
92075
92075277
ref: 92075
DAMPER
€ 1.00
220
220B0514
ref: 220
ACREW-PAN HEAD,5X14
€ 2.50
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
€ 2.50
224
224C0508
ref: 224
SCREW-PAN-WP-CROS
€ 3.00
