GEAR CHANGE MECHANISM

ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

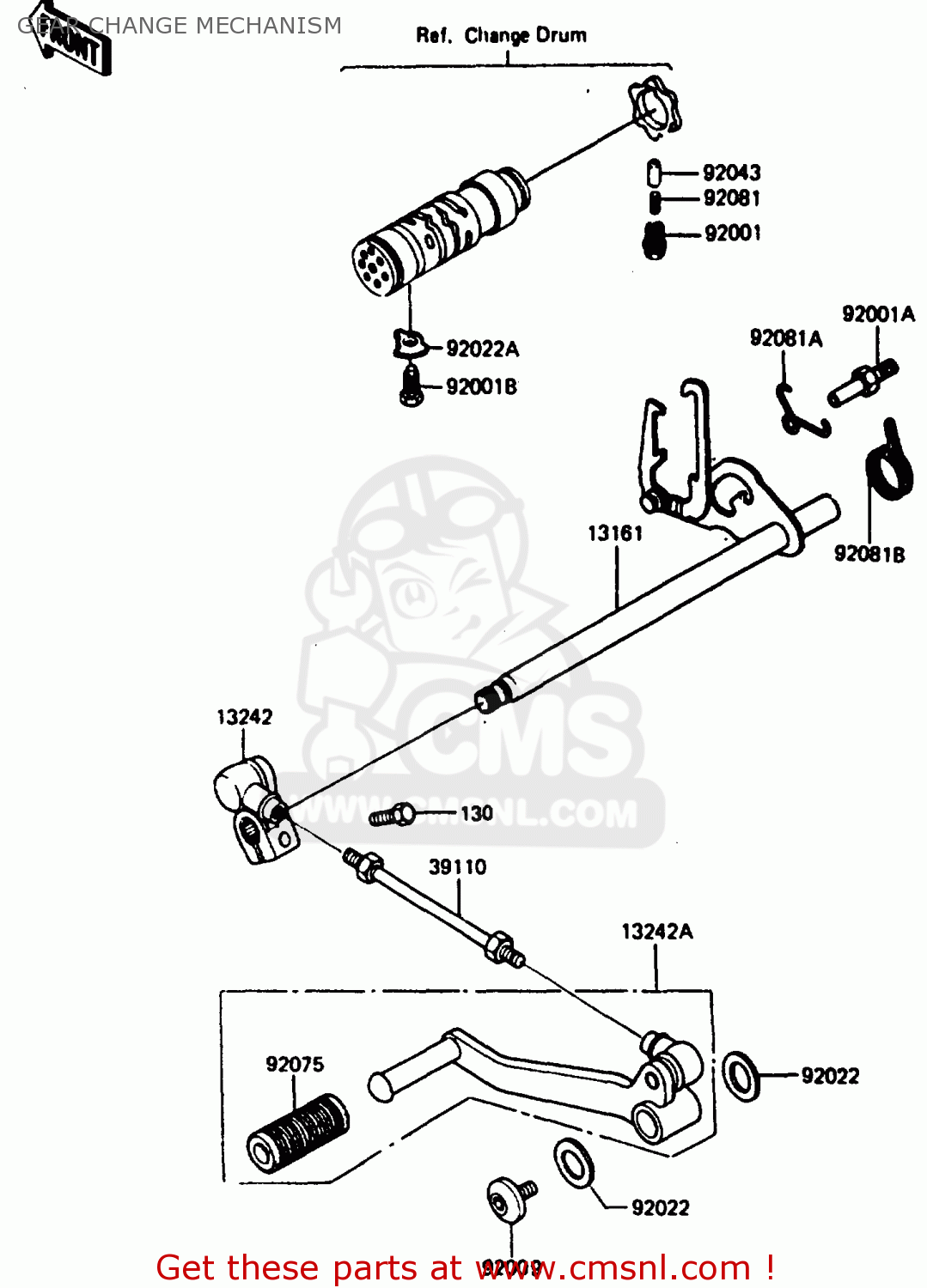

Gear change mechanism diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421098
ref: 13242

LEVER-ASSY-CHANGE

€ 23.00

13242A

132421155
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 25.00

39110

391101015
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 8.50

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011401
ref: 92001A

BOLT,RETURN SPRING

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92009

920091253
ref: 92009

SCREW,5X10

€ 2.00

92022

920221451
ref: 92022

WASHER,14.5X21X1.2

€ 0.50

92022A

92024074
ref: 92022A

WASHER,LOCK,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92075

13157004
ref: 92075

RUBBER-CHANGE PEDAL

€ 4.00

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92083018
ref: 92081A

SPRING-KICK PAWL

€ 6.00

92081B

92083028
ref: 92081B

SPRING,CHG PEDL RTRN

€ 9.50

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50
