COWLING
ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

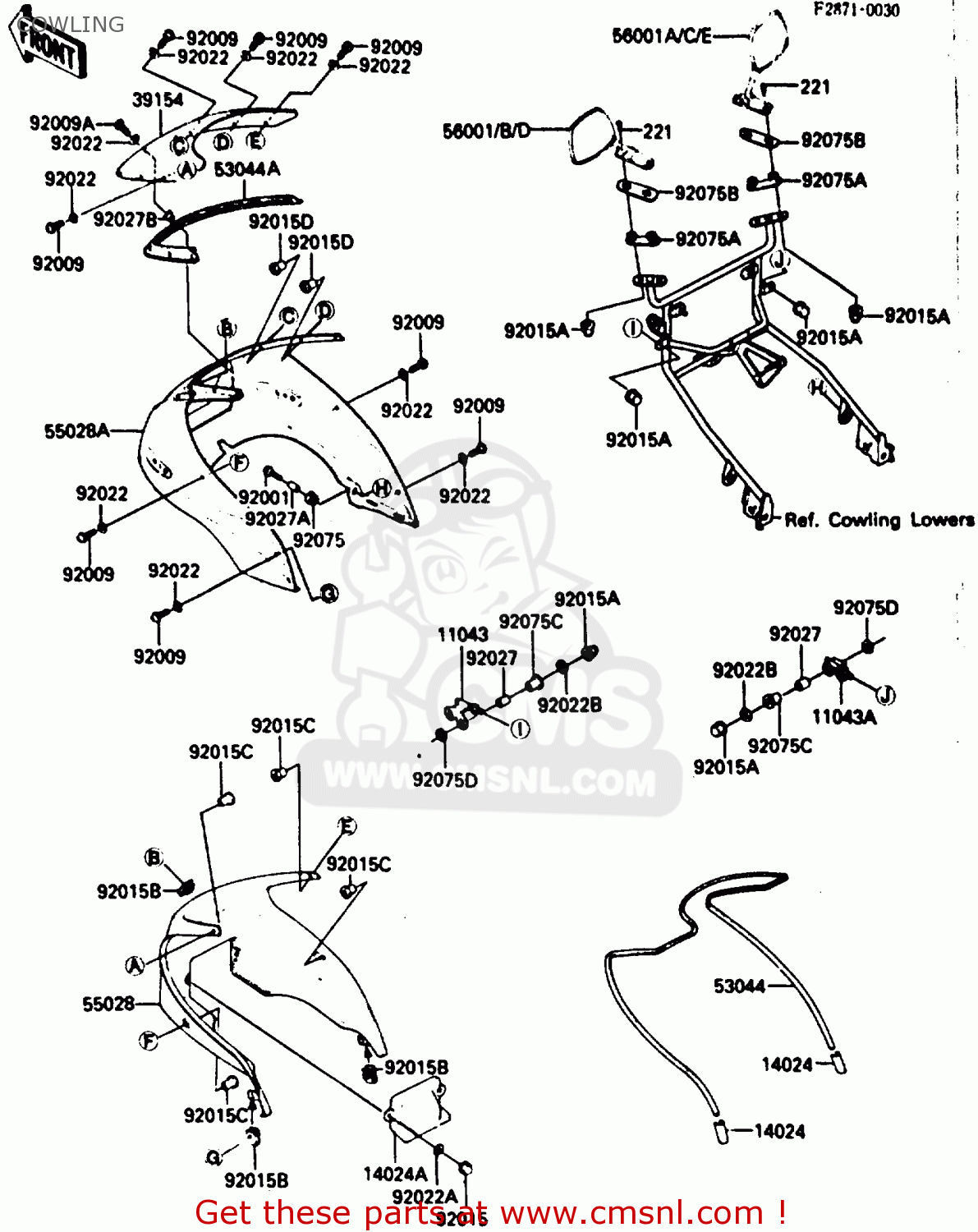

Cowling diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
COWLING ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11043
110431278
ref: 11043
BRACKET-B,SIGNAL LAMP
€ 23.50
11043A
110431279
ref: 11043A
BRACKET-B,SIGNAL LAMP
€ 23.50
14024
140251756
ref: 14024
COVER,TRIM END
€ 4.50
14024A
140251769
ref: 14024A
COVER,COWLING INNER
€ 17.50
39124
391541052
ref: 39124
WINDSHIELD
€ 422.00
53044
530441110
ref: 53044
TRIM,COWLING
€ 49.00
53044A
530441121
ref: 53044A
TRIM,WINDSHIELD
€ 28.00
53028
550281052
ref: 53028
COWLING,UPP,INNER
€ 44.00
53028A
550285034J3
ref: 53028A
COWLING,UPP,OUTER,EBO
€ 782.00
56001
560011142
ref: 56001
FR, UK
MIRROR-ASSY,LH
€ 58.50
56001A
560011143
ref: 56001A
FR, UK
MIRROR-ASSY,RH
€ 61.50
56001B
560011144
ref: 56001B
EU, GR, NR, SD, ST,
MIRROR-ASSY,LH
€ 58.50
56001C
560011145
ref: 56001C
EU, GR, NR, SD, ST,
MIRROR-ASSY,RH
€ 61.50
56001D
560011146
ref: 56001D
IT
MIRROR-ASSY,LH
€ 61.50
56001E
560011147
ref: 56001E
IT
MIRROR-ASSY,RH
€ 58.50
92001
920011852
ref: 92001
BOLT,6X25
€ 2.50
92009
920091301
ref: 92009
SCREW,5X16
€ 0.50
92009A
920091302
ref: 92009A
SCREW,5X25
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92015B
920151310
ref: 92015B
NUT
€ 4.00
92015C
920151351
ref: 92015C
NUT,COWLING,5MM
€ 2.50
92015D
920151352
ref: 92015D
NUT,COWLING,5MM
€ 3.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92022A
920221545
ref: 92022A
WASHER,7X18X1.2
€ 1.00
92022B
92022228
ref: 92022B
WASHER-PLAIN,7MM
€ 2.50
92027
920271400
ref: 92027
COLLAR,6.8X10X21
€ 3.50
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92027B
920271754
ref: 92027B
COLLAR,COWLING,L=5.5
€ 3.00
92075
920751057
ref: 92075
DAMPER
€ 3.00
92075A
920751492
ref: 92075A
DAMPER,MIRROR
€ 5.00
92075B
920751500
ref: 92075B
DAMPER,MIRROR
€ 5.50
92075C
92075174
ref: 92075C
DAMPER,MALE
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
221
221C0630
ref: 221
SCREW-CSK-CROS,6X30
€ 1.00
