FRAME FITTING

ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

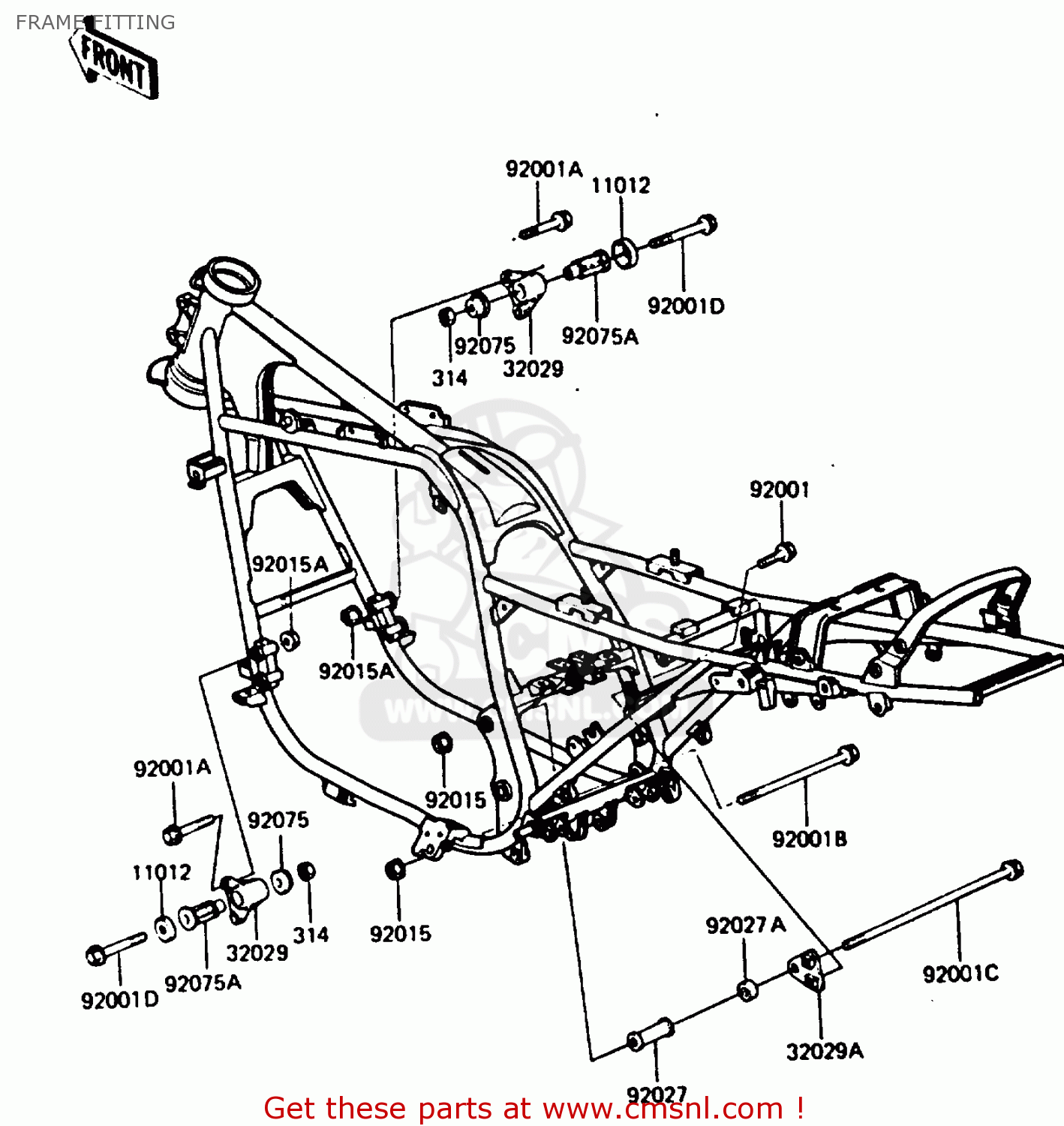

Frame fitting diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291254
ref: 32029

BRACKET-ENGINE,FR

€ 23.50

32029A

320291345
ref: 32029A

BRACKET-ENGINE,RR

€ 9.50

92001

920011613
ref: 92001

BOLT,FLANGED,8X45

€ 3.00

92001A

920011615
ref: 92001A

BOLT,FLANGED,8X60

€ 4.00

92001B

920011621
ref: 92001B

BOLT,FLANGED,10X180

€ 15.00

92001C

920011749
ref: 92001C

BOLT,FLANGED,10X125,B

€ 13.50

92001D

920011780
ref: 92001D

BOLT,FLANGED,10X115,B

€ 10.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92027

920271570
ref: 92027

COLLAR,L=56.8

€ 12.50

92027A

920271571
ref: 92027A

COLLAR,11X26X12.3

€ 6.00

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

314

314C1000
ref: 314

NUT-HEX-FINE,10MM,BLA

€ 2.50
