BRAKE PEDAL

ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

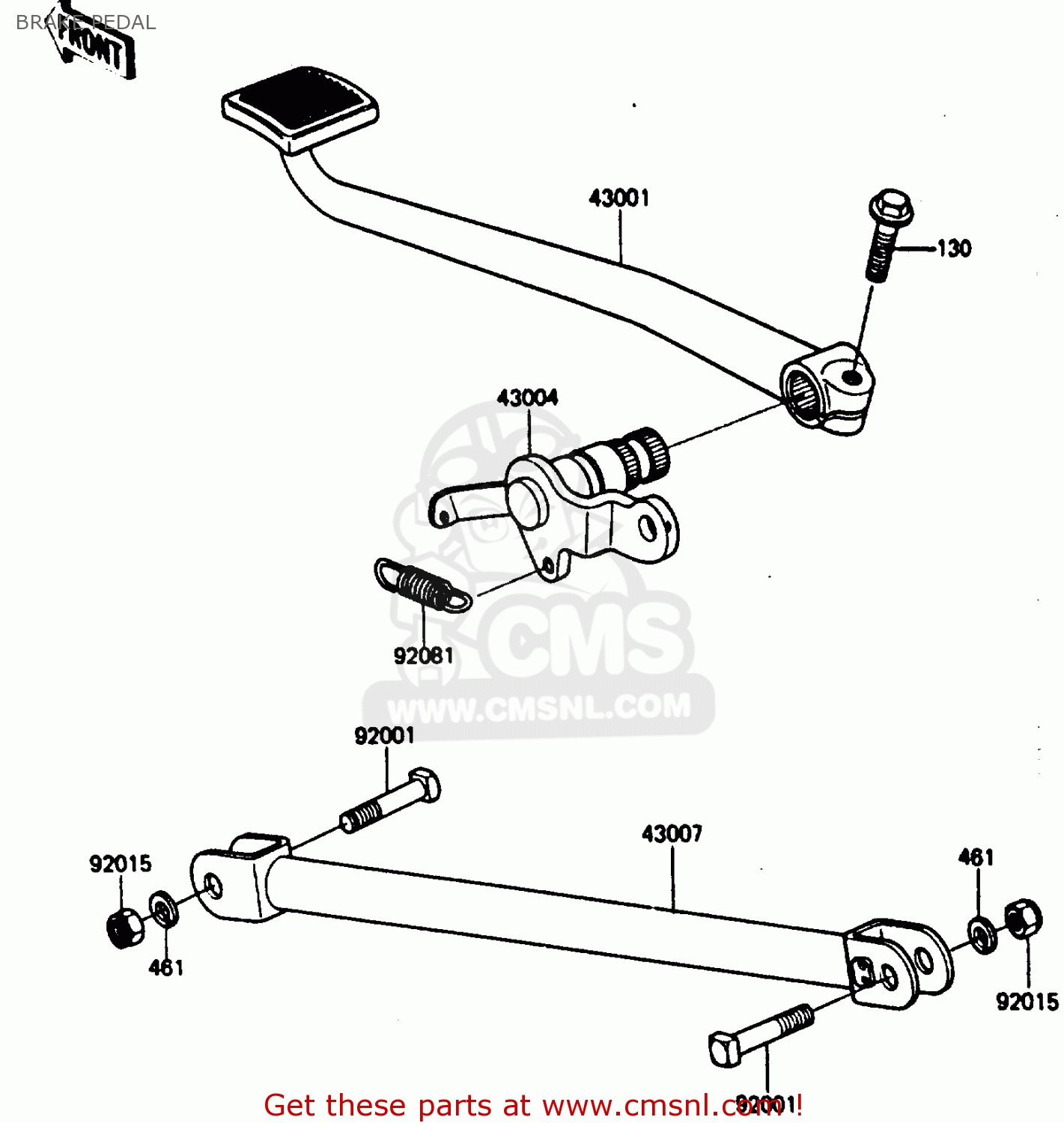

Brake pedal diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

BRAKE PEDAL ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

BRAKE PEDAL ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

43001

430011156
ref: 43001

LEVER-BRAKE,PEDAL

€ 59.50

43004

430041101
ref: 43004

SHAFT-BRAKE

€ 38.50

43007

430071046
ref: 43007

ROD-TORQUE

€ 22.50

92001

920011646
ref: 92001

BOLT,10X37

€ 4.50

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92081

920811561
ref: 92081

SPRING,SIDE STAND,BLA

€ 5.50

130

130Y0825
ref: 130

BOLT-FLANGED

€ 2.50

461

461K1000
ref: 461

461K1000
