IGNITION SWITCH

ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

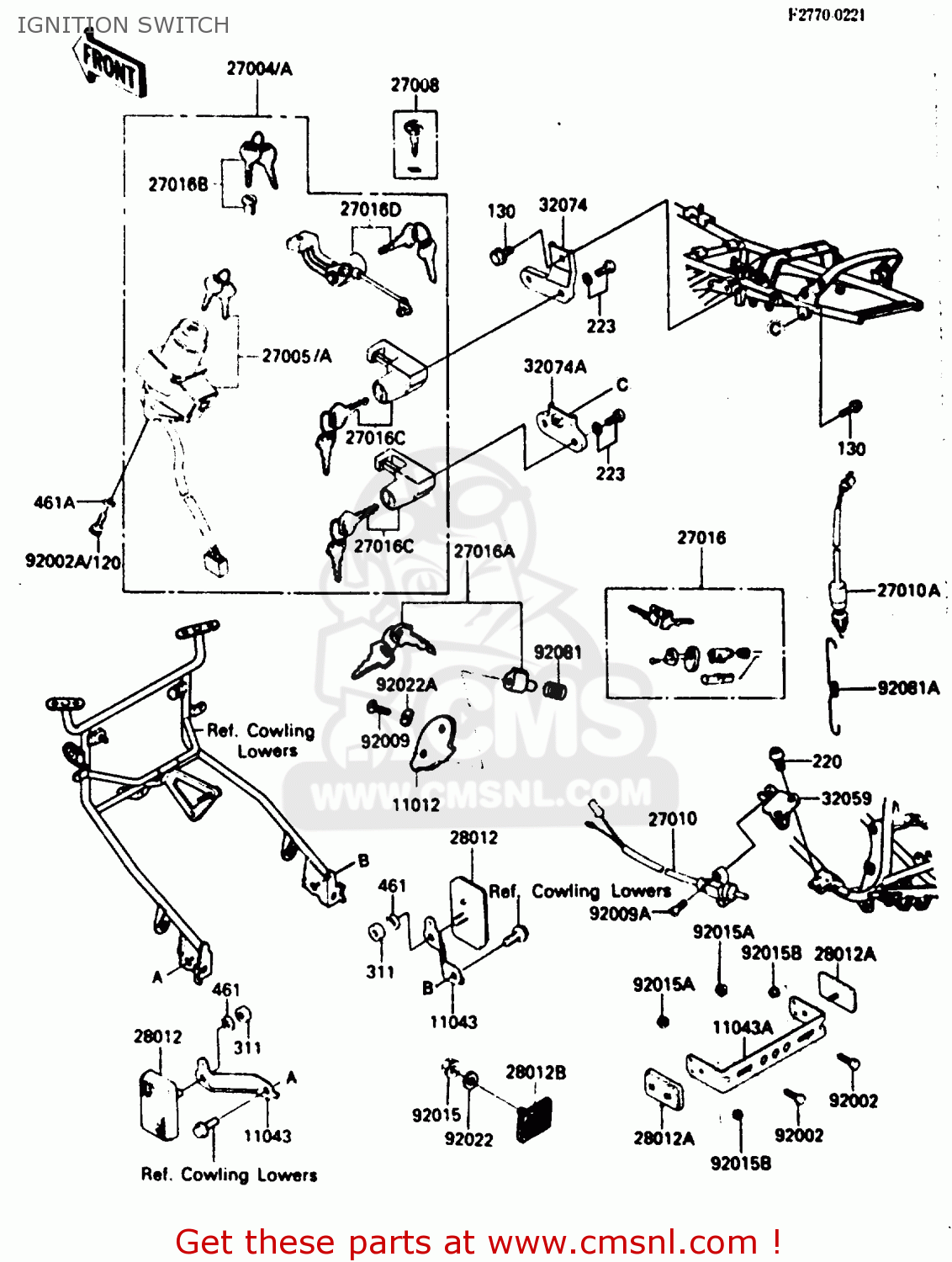

Ignition switch diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

IGNITION SWITCH ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
IGNITION SWITCH ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
IGNITION SWITCH ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
WG
CAP,STEERING LOCK
110121134
€ 4.50
11043
110431456
ref: 11043
EU
BRACKET-B,REFLECTOR
€ 9.50
11043A
110431619
ref: 11043A
EU
BRACKET,REFLECTOR,RR
110431619
€ 9.00
27004
270045212
ref: 27004
EU, FR, GR, IT, NR,
SWITCH-ASSY
€ 222.50
27004A
270045213
ref: 27004A
SD, WG
SWITCH-ASSY
€ 223.50
27005
270055036
ref: 27005
EU, FR, GR, IT, NR,
SWITCH-ASSY-IGNITION
€ 235.50
27005A
270055037
ref: 27005A
SD, WG
SWITCH-ASSY-IGNITION
€ 154.00
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101065
ref: 27010
SWITCH,SIDE STAND
270101065
€ 53.00
27010A
270101093
ref: 27010A
SWITCH,BRAKE LAMP
270101093
€ 20.00
27016

ref: 27016
SD
27016A

ref: 27016A
WG
27016B
270165068
ref: 27016B
LOCK-ASSY,FUEL TANK
270165068
€ 71.00
27016C
270165070
ref: 27016C
LOCK-ASSY,HELMET
270165070
€ 43.00
27016D
270165071
ref: 27016D
LOCK-ASSY,SEAT
270165071
€ 66.50
28012
280121003
ref: 28012
SU
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121003
ref: 28012A
EU (OPTION)
REFLECTOR,REFLEX
280121003
€ 15.00
28012B
280121055
ref: 28012B
REFLECTOR-REFLEX,RR
280121055
€ 12.50
32059
320591056
ref: 32059
BRACKET-SWITCH,SIDE S
€ 6.50
32074
320741058
ref: 32074
BRACKET-LOCK,HELMET,F
€ 7.50
32074A
320741059
ref: 32074A
BRACKET-LOCK,HELMET,R
320741059
€ 7.50
92002
920021132
ref: 92002
EU (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
NR
BOLT
920021333
€ 1.50
92009
92008007
ref: 92009
WG
SCREW-TAPPING
92008007
€ 2.50
92009A
920091303
ref: 92009A
SCREW,CLUTCH RELEASE
920091303
€ 8.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151193
ref: 92015A
EU (OPTION)
NUT,FLANGED,6MM
920151193
€ 0.50
92015B
920151259
ref: 92015B
EU (OPTION)
NUT,FLANGED,5MM
920151259
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
92097003
ref: 92022A
WG
WASHER
92097003
€ 2.50
92081
27032001
ref: 92081
WG
SPRING-STEERING LOCK
27032001
€ 3.50
92081A
920811146
ref: 92081A
SPRING,BRAKE LAMP SWI
920811146
€ 3.00
120
120T0616
ref: 120
EU, FR, GR, IT, SD,
BOLT-SOCKET
€ 1.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
220
220C0512
ref: 220
SCREW-PAN-CROS,5X12,B
220C0512
€ 2.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
223B0508
€ 0.50
311
311B0500
ref: 311
EU
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
EU
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461L0600
ref: 461A
WASHER-SPRING
€ 0.50
