CLUTCH
ZX750E1 1984 EUROPE FR FU GR IT NR SD ST

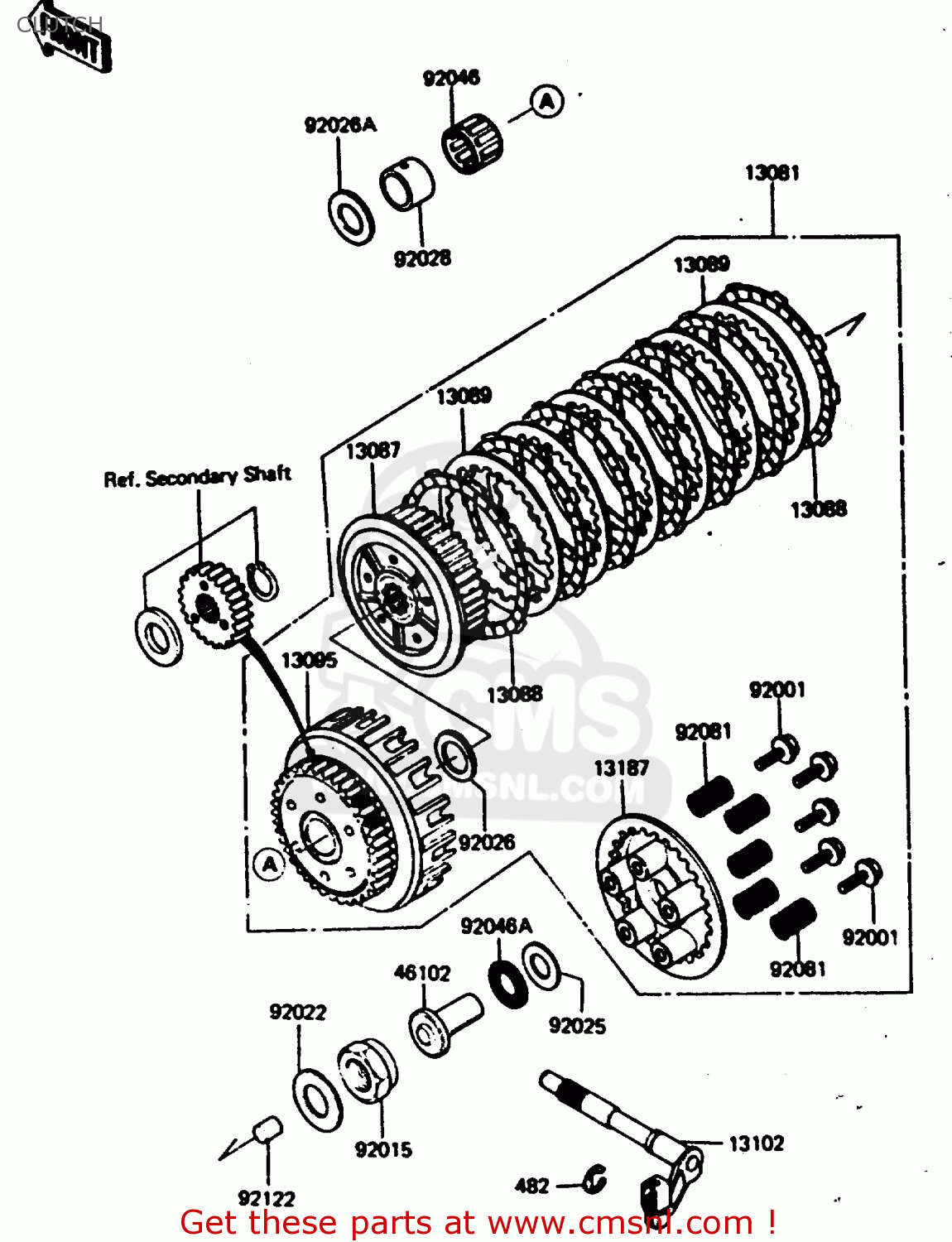

Clutch diagram ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
CLUTCH ZX750E1 1984 EUROPE FR FU GR IT NR SD ST
×
prices are in EUR
ref
part #
description
quantity
13081
130811167
ref: 13081
CLUTCH-ASSY
€ 645.00
13087
13087043
ref: 13087
HUB-CLUTCH
€ 131.00
13088
130881052
ref: 13088
PLATE-FRICTION (NAS)
€ 15.50
13089
13089022
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.50
13095
130951108
ref: 13095
HOUSING-COMP-CLUTCH
€ 264.00
13102
131021024
ref: 13102
RELEASE-COMP-CLUTCH
€ 24.00
13187
131871014
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 61.00
46102
461021061
ref: 46102
ROD,CLUTCH,6T
€ 23.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92013
920151053
ref: 92013
NUT,20M/M
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92025
920251022
ref: 92025
SHIM,15.3X27.5X1.20
€ 4.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
920261201
ref: 92026A
SPACER,25.3X42X2.3
€ 9.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92046A
920461052
ref: 92046A
BEARING-NEEDLE,AXK110
€ 14.00
92081
920811176
ref: 92081
SPRING,CLUTCH
€ 6.50
92122
921221019
ref: 92122
ROLLER,10X12
€ 3.50
482
482K9000
ref: 482
CIRCLIP-TYPE-E,9MM
€ 2.50
