TAIL LAMP
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

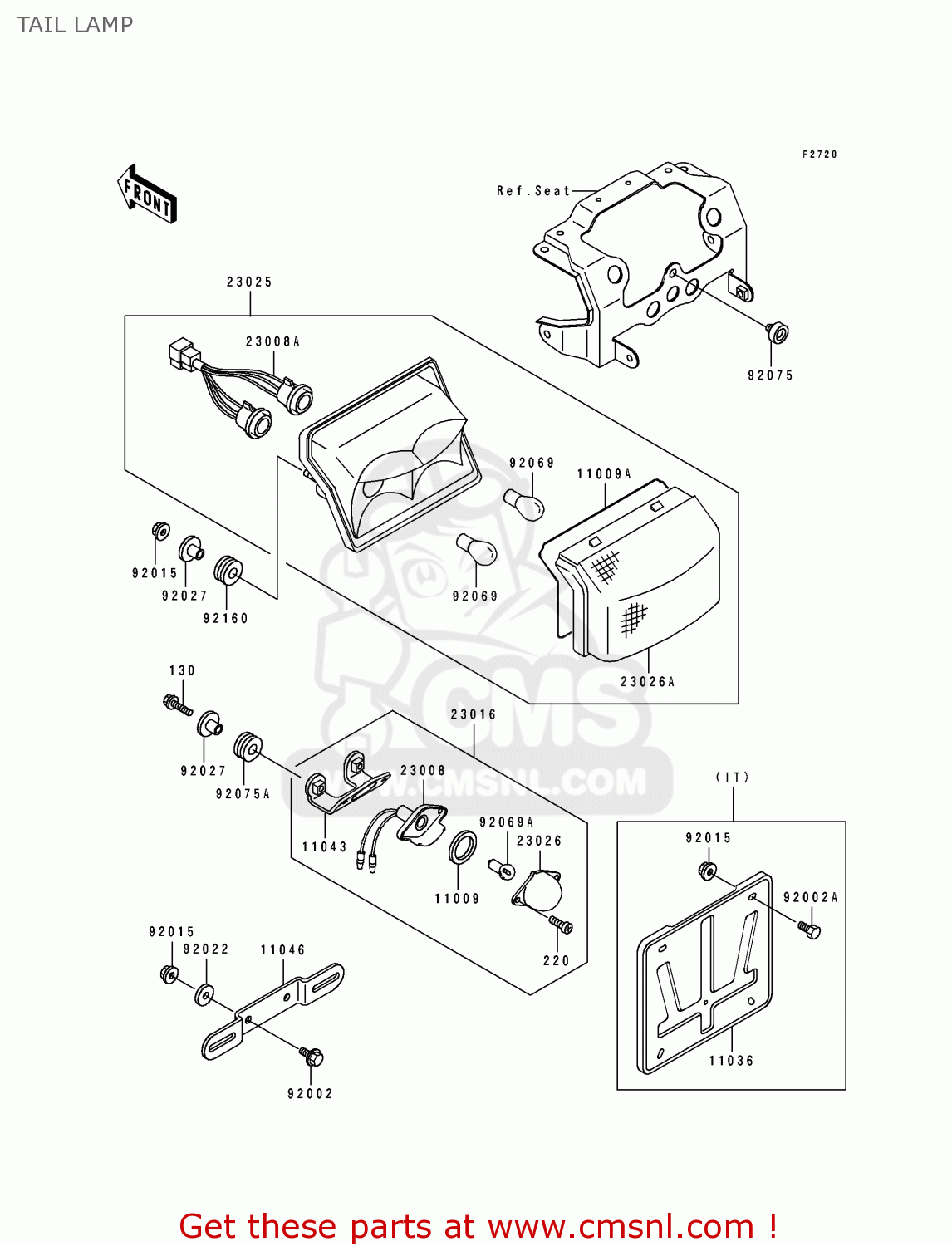

Tail lamp diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
TAIL LAMP ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091876
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
€ 6.00
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
€ 13.00
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081364
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 32.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251203
ref: 23025
LAMP-TAIL
€ 79.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261118
ref: 23026A
LENS,TAIL LAMP
€ 28.50
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075035
ref: 92075
DAMPER
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92160
921601162
ref: 92160
DAMPER
€ 3.00
