RADIATOR
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

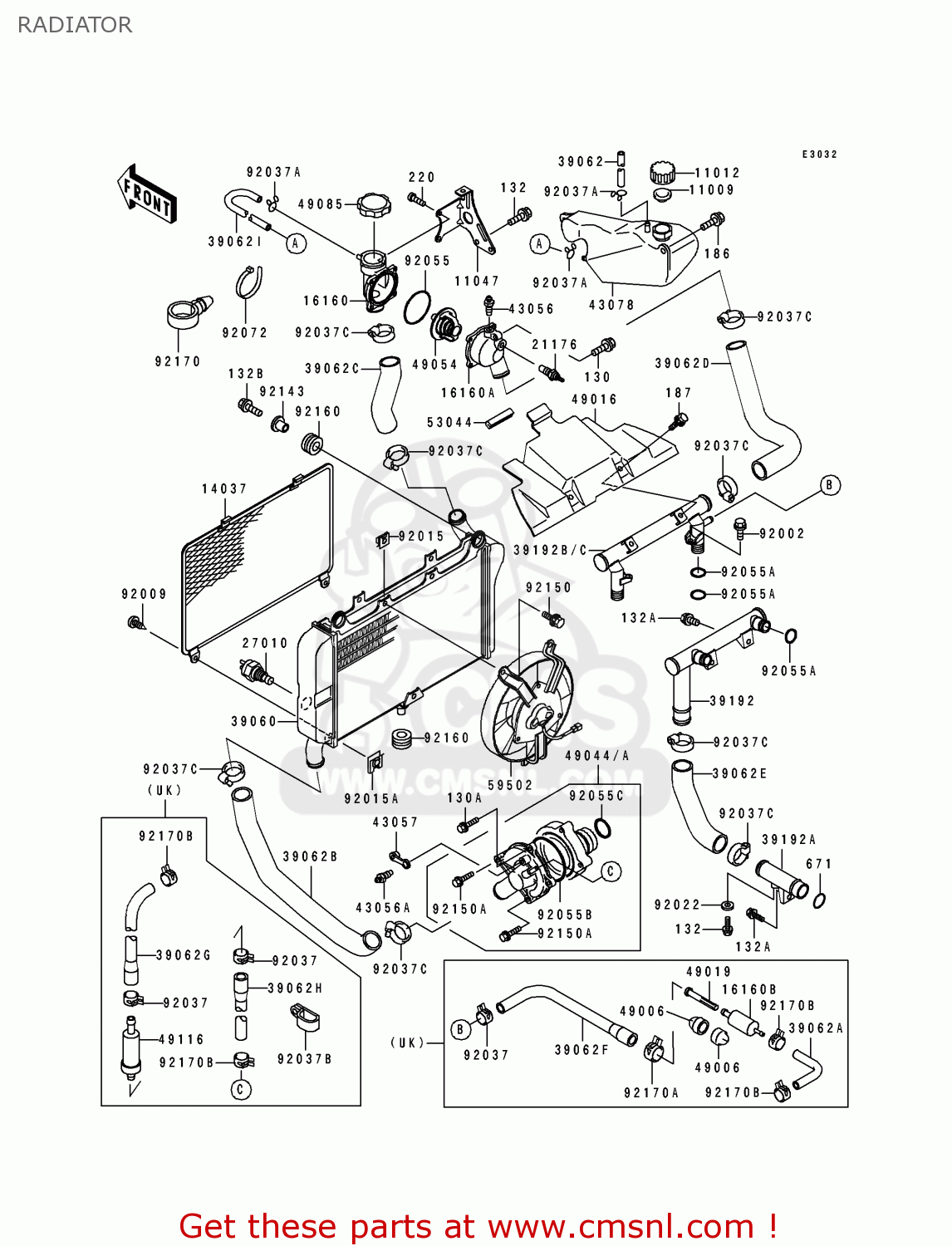

Radiator diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
RADIATOR ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11047
110461944
ref: 11047
BRACKET,THERMO BODY
€ 7.00
14037
140371129
ref: 14037
SCREEN
€ 50.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
€ 134.00
16160A
161601117
ref: 16160A
BODY,THERMOSTAT
€ 59.00
16160B
161601151
ref: 16160B
UK
BODY,FILTER
€ 6.50
21176
211761054
ref: 21176
SENSOR,WATER
€ 49.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
39060
390601095
ref: 39060
RADIATOR
€ 585.00
39062
390621110
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621304
ref: 39062A
UK
HOSE-COOLING,FILTER-C
€ 4.50
39062B
390621394
ref: 39062B
HOSE-COOLING,RADIATOR
€ 38.50
39062C
390621395
ref: 39062C
HOSE-COOLING,RADIATOR
€ 15.00
39062D
390621396
ref: 39062D
HOSE-COOLING,THERMO-H
€ 31.00
39062E
390621397
ref: 39062E
HOSE-COOLING,PUMP-CYL
€ 30.00
39062F
390621399
ref: 39062F
UK
HOSE-COOLING
€ 11.50
39062G
390621427
ref: 39062G
UK
HOSE-COOLING
€ 10.00
39062H
390621428
ref: 39062H
UK
HOSE-COOLING,CARBURET
€ 9.50
39062I
390621429
ref: 39062I
HOSE-COOLING,CAP-RESE
€ 10.50
39192
391921033
ref: 39192
PIPE-WATER
€ 110.50
39192A
391921034
ref: 39192A
PIPE-WATER
€ 42.00
39192B
391921039
ref: 39192B
FG
PIPE-WATER
€ 95.50
39192C
391921040
ref: 39192C
UK
PIPE-WATER
€ 80.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43056A
430561051
ref: 43056A
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43078
430781109
ref: 43078
RESERVOIR
€ 36.00
49006
490061187
ref: 49006
UK
BOOT
€ 7.00
49016
490161154
ref: 49016
COVER-SEAL
€ 22.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
49044
490441067
ref: 49044
FG
PUMP-WATER
€ 275.50
49044A
490441068
ref: 49044A
UK
PUMP-WATER
€ 275.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851054
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
€ 85.00
53044
530441174
ref: 53044
TRIM
€ 2.50
59502
595021094
ref: 59502
FAN-ASSY
€ 621.50
92002
920021572
ref: 92002
BOLT,6X12
€ 2.00
92009
920091436
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92037
920371181
ref: 92037
UK
CLAMP
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371608
ref: 92037B
UK
CLAMP
€ 5.50
92037C
920371985
ref: 92037C
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551282
ref: 92055A
RING-O
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
€ 4.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92143
921431450
ref: 92143
COLLAR
€ 6.50
92150
921501186
ref: 92150
BOLT
€ 3.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
€ 0.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0830
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
186
186H0614
ref: 186
BOLT-UPSET-WP
€ 1.50
187
187G0612
ref: 187
BOLT-UPSET-WSP
€ 2.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92150A
921501379
ref: 92150A
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701067
ref: 92170
CLAMP,HOSE
€ 5.00
92170A
921701118
ref: 92170A
UK
CLAMP
€ 5.00
92170B
921702042
ref: 92170B
UK
CLAMP
€ 1.00
