ENGINE COVER
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

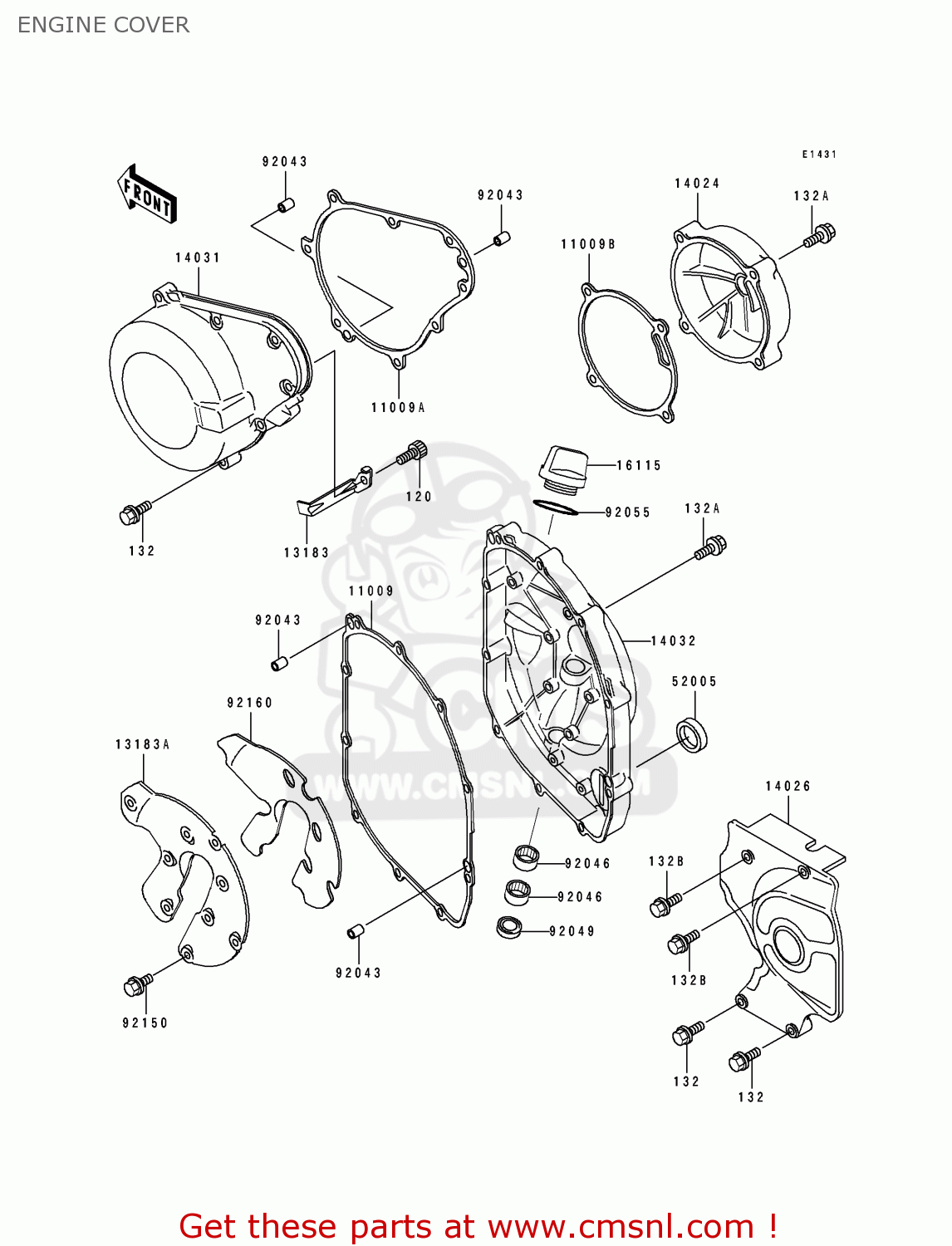

Engine cover diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
ENGINE COVER ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
132
132G0630
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132G0645
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
11009
110091867
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 17.50
11009A
110091868
ref: 11009A
GASKET,GENERATOR COVE (NAS)
€ 6.50
11009B
110091869
ref: 11009B
GASKET,PULSING COVER (NAS)
€ 4.50
13183
131831529
ref: 13183
PLATE,LEAD WIRE
€ 3.00
13183A
131831532
ref: 13183A
PLATE
€ 8.00
14024
140241881
ref: 14024
COVER,PULSING
€ 51.50
14026
140261160
ref: 14026
COVER-CHAIN
€ 67.50
14031
140311247
ref: 14031
COVER-GENERATOR
€ 162.00
14032
140321286
ref: 14032
COVER-CLUTCH
€ 194.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92150
921501406
ref: 92150
BOLT
€ 2.00
92160
921601195
ref: 92160
DAMPER
€ 20.50
