BRAKE PEDAL

ZX600D2A ZZR600 1991 UNITED KINGDOM FG

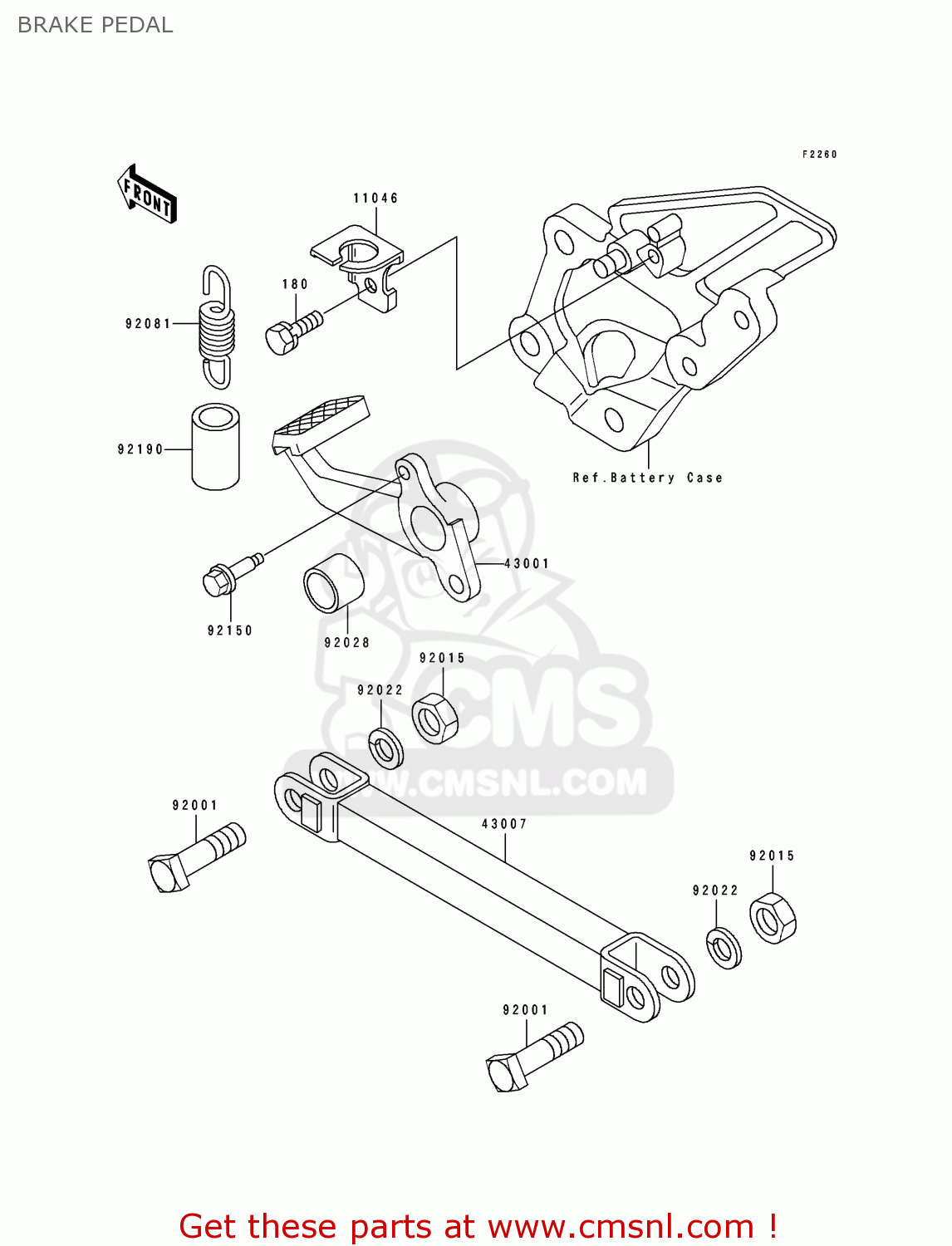

Brake pedal diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

11046

110461252
ref: 11046

BRACKET,REAR BRAKE SW

€ 5.50

43001

430011283
ref: 43001

LEVER-BRAKE,PEDAL

€ 39.00

43007

430071152GD
ref: 43007

ROD-TORQUE,G.GRAY

€ 55.00

92001

920011307
ref: 92001

BOLT,SQUARE HEAD

€ 4.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92022

920221540
ref: 92022

WASHER,SPRING,10MM

€ 2.50

92028

920281558
ref: 92028

BUSHING

€ 7.00

92081

920811147
ref: 92081

SPRING,BRAKE PEDAL

€ 8.00

92150

921501113
ref: 92150

BOLT,CENTER STAND SPR

€ 4.50

92190

921901185
ref: 92190

TUBE

€ 3.00
