FENDER
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

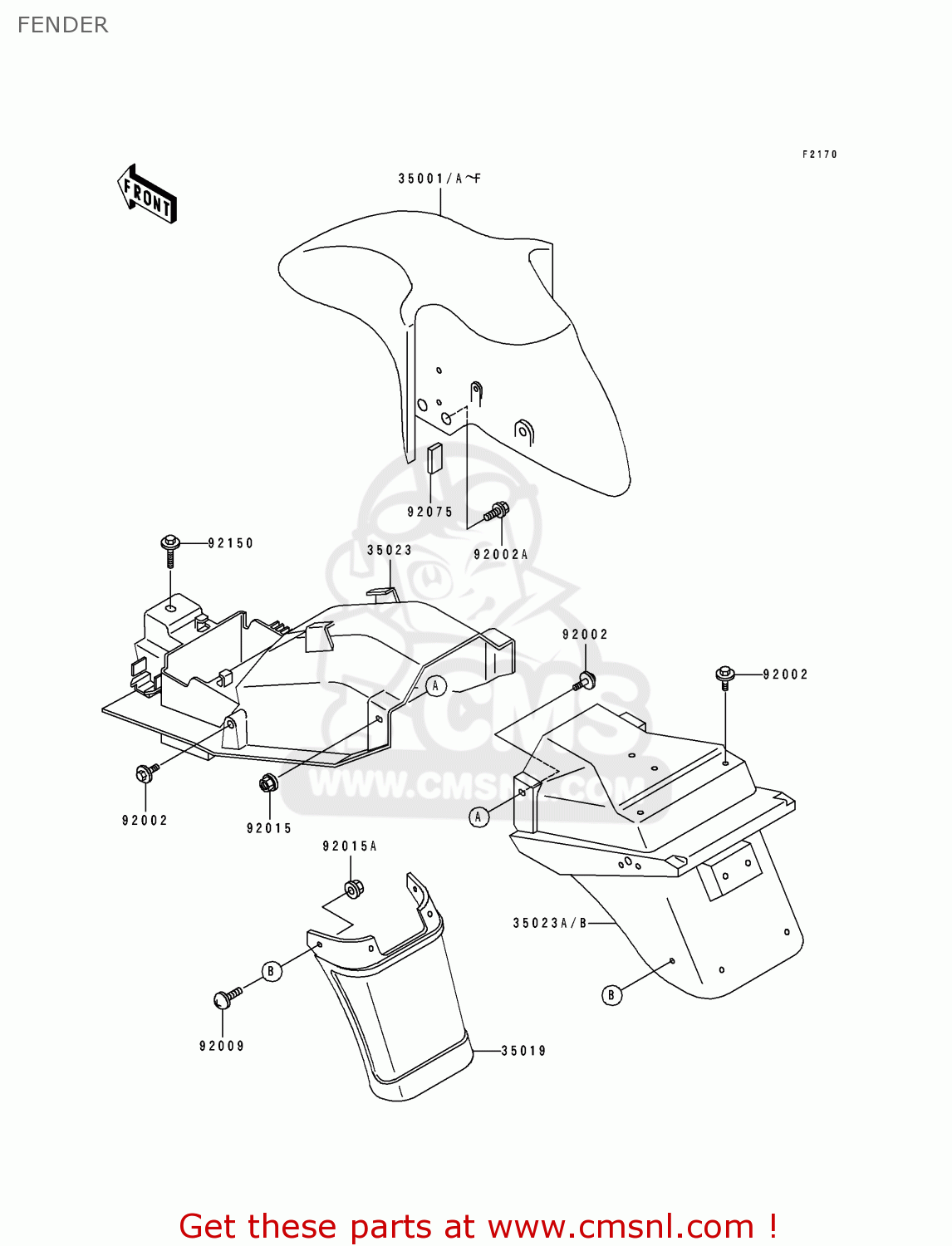

Fender diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
FENDER ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
35001C
350011147HM
ref: 35001C
FENDER-ASSY-FRONT,M.S
€ 91.50
35001D
350011147H8
ref: 35001D
FENDER-ASSY-FRONT,EBO
€ 125.00
35019
350191170
ref: 35019
FG
FLAP,REAR FENDER
€ 33.00
35023
350231266
ref: 35023
FENDER-REAR,FR
€ 59.00
35023A
350231267
ref: 35023A
UK
FENDER-REAR,RR
€ 99.00
35023B
350231270
ref: 35023B
FG
FENDER-REAR,RR
€ 94.00
92002
920011950
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021200
ref: 92002A
BOLT,FLANGED,8X16
€ 3.00
92009
920091182
ref: 92009
FG
SCREW,5X12,BLACK
€ 1.50
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92015A
920151328
ref: 92015A
FG
NUT,FLANGED,5MM
€ 2.00
92075
920751902
ref: 92075
DAMPER
€ 3.00
92150
920021407
ref: 92150
BOLT,6X25
€ 2.00
