REAR HUB

ZX600D2A ZZR600 1991 UNITED KINGDOM FG

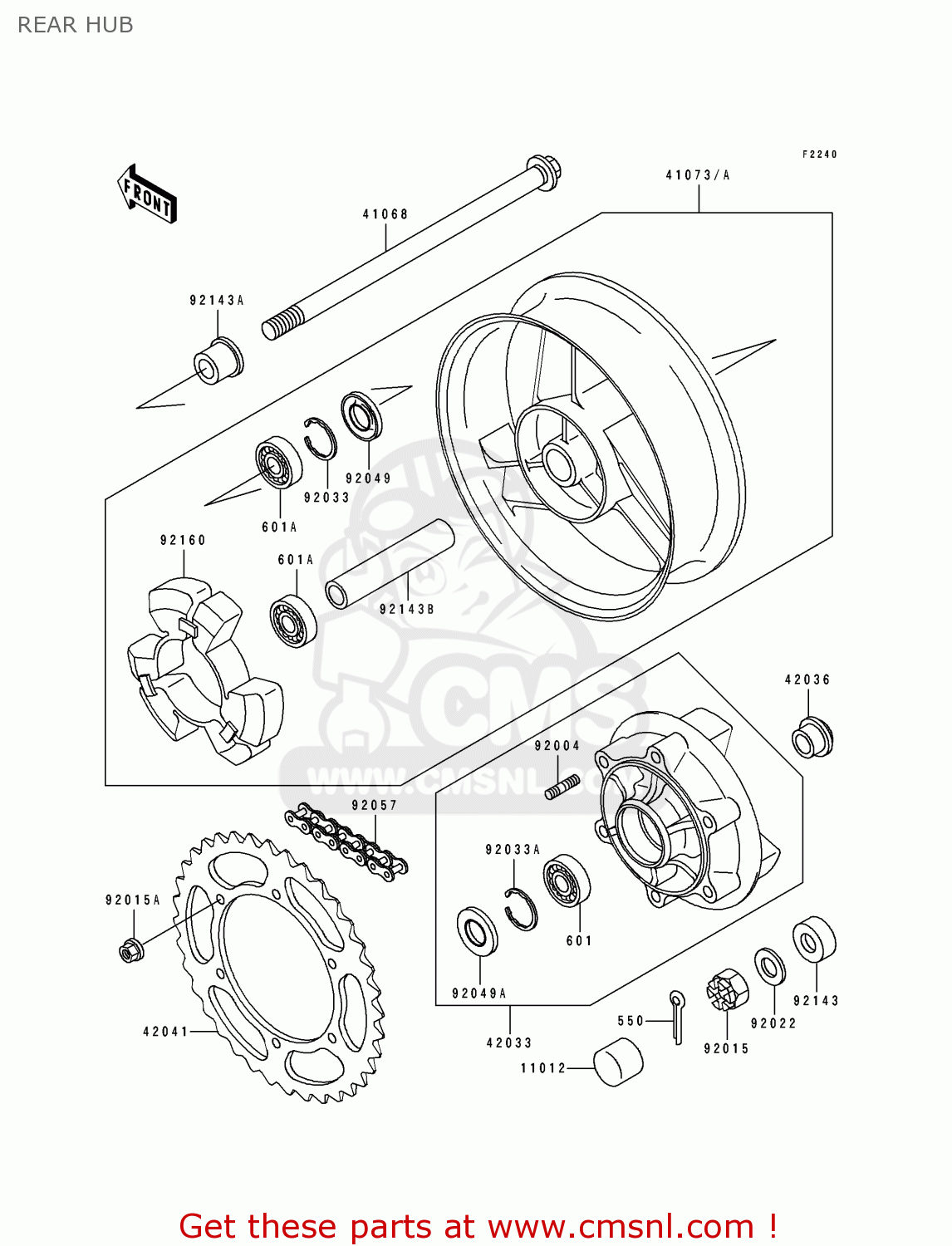

Rear hub diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG

REAR HUB ZX600D2A ZZR600 1991 UNITED KINGDOM FG
REAR HUB ZX600D2A ZZR600 1991 UNITED KINGDOM FG
REAR HUB ZX600D2A ZZR600 1991 UNITED KINGDOM FG
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
601B6205G
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
11012
110121592
ref: 11012
FG
CAP,AXLE NUT
110121592
€ 5.00
41068
410681314
ref: 41068
AXLE,RR
€ 99.00
41073
410731484GE
ref: 41073
WHEEL-ASSY
410731484GE
€ 720.50
42033
420331142GD
ref: 42033
COUPLING-ASSY,RR HUB,
420331142GD
€ 194.00
42036
420361233
ref: 42036
SLEEVE,RR AXLE,L=22
420361233
€ 17.00
42041
420411361
ref: 42041
SPROCKET-HUB
420411361
€ 33.50
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
42045014
€ 6.50
92015A
920151720
ref: 92015A
NUT,10MM
920151720
€ 3.50
92022
42046009
ref: 92022
WASHER-SLEEVE
42046009
€ 5.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92049A
92052006
ref: 92049A
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571221
ref: 92057
CHAIN,DRIVE,EK530MVOX
920571221
€ 142.50
92143
921431209
ref: 92143
COLLAR,RR AXLE,L=14.5
921431209
€ 11.00
92143A
921431210
ref: 92143A
COLLAR,RR AXLE,L=26
921431210
€ 13.50
92143B
921431393
ref: 92143B
COLLAR,RR HUB,L=125
921431393
€ 14.50
92160
921601248
ref: 92160
DAMPER,SHOCK,RR HUB
€ 94.00
