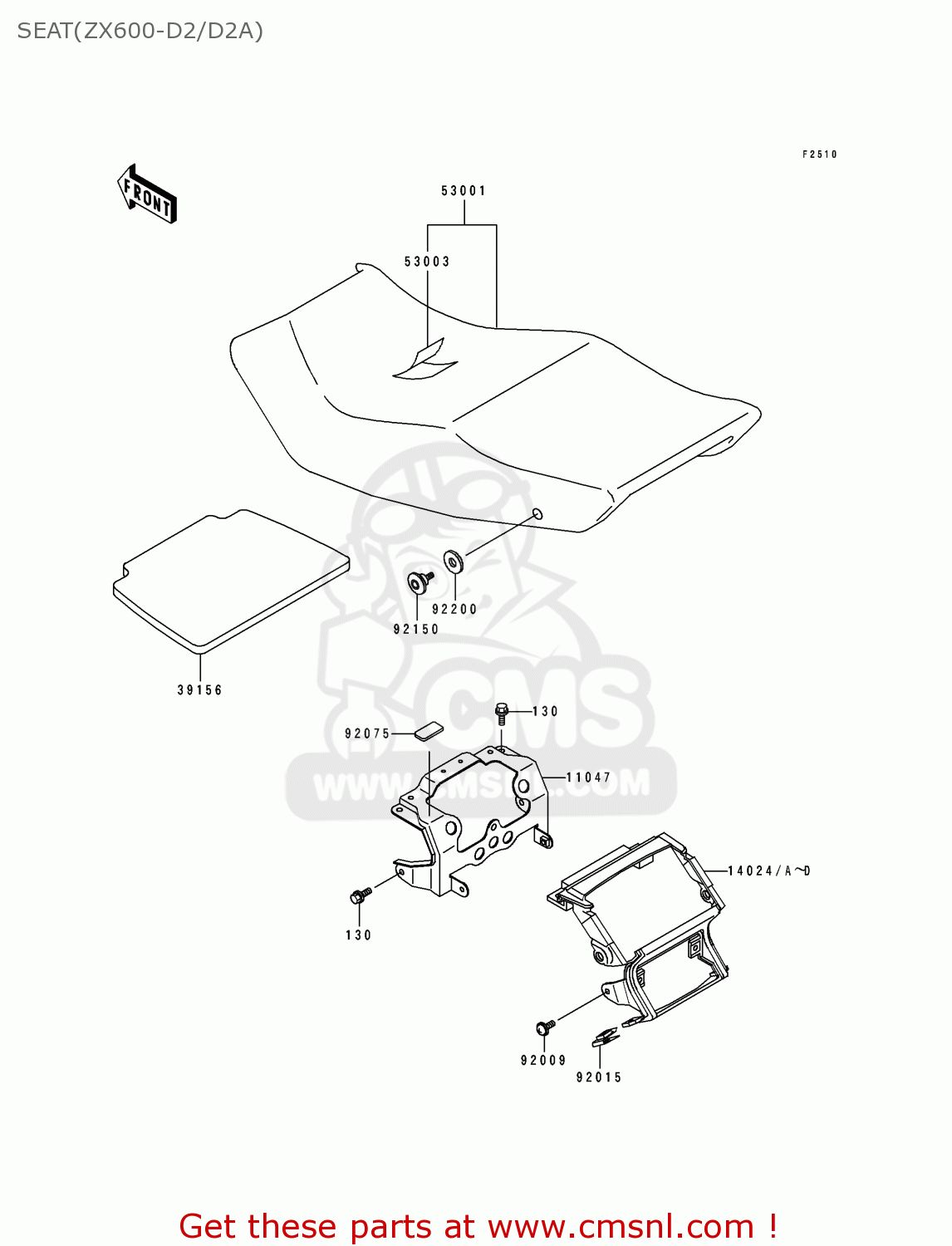

SEAT(ZX600-D2/D2A)

ZX600D2A ZZR600 1991 UNITED KINGDOM FG

Seat(zx600-d2/d2a) diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

11047

110461950
ref: 11047

BRACKET,TAIL

€ 33.50

14024B

140241897HS
ref: 14024B

COVER.TAIL,ROSE OPERA

€ 112.00

14024D

140241897KP
ref: 14024D

COVER,TAIL,M.O.SILVER

€ 112.00

39156

391561214
ref: 39156

PAD,SEAT

€ 13.50

53001

530011601MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 314.00

53003

530031237MA
ref: 53003

LEATHER,SEAT,BLACK

€ 72.50

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92015

920151798
ref: 92015

NUT

€ 4.50

92075

920751883
ref: 92075

DAMPER

€ 2.50

92150

921501154
ref: 92150

BOLT,SOCKET,6MM

€ 5.00

92200

922001013
ref: 92200

WASHER,10.3X20X1

€ 3.00
