CYLINDER HEAD
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

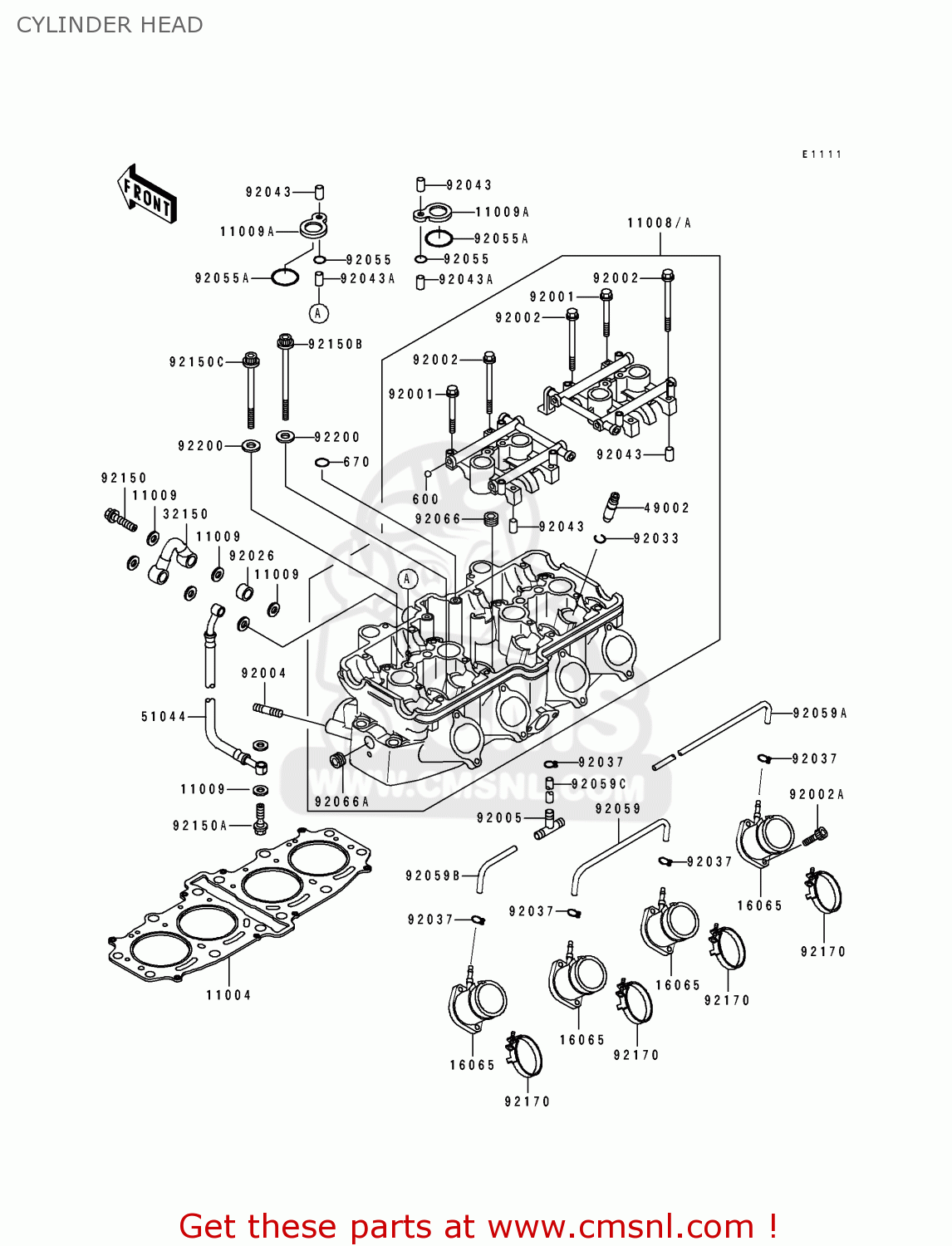

Cylinder head diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
CYLINDER HEAD ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11004
110041206
ref: 11004
GASKET-HEAD (NAS)
€ 73.00
11008A
110081242
ref: 11008A
HEAD-COMP-CYLINDER
€ 1,475.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
110091990
ref: 11009A
GASKET,SPARK PLUG (NAS)
€ 5.00
16065
160651213
ref: 16065
HOLDER-CARBURETOR
€ 22.00
32150
321501621
ref: 32150
PIPE,HEAD
€ 34.50
49002
490021109
ref: 49002
GUIDE-VALVE
€ 14.00
51044
510441121
ref: 51044
TUBE-ASSY,HEAD-OIL PA
€ 83.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92002
920011872
ref: 92002
BOLT,6X46
€ 2.50
92002A
920021143
ref: 92002A
BOLT,6X16
€ 2.50
92004
920041186
ref: 92004
STUD,8X18
€ 3.50
92005
920051017
ref: 92005
FITTING,TUBE
€ 6.50
92026
920261393
ref: 92026
SPACER,10.5X15.1X10
€ 3.50
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92037
920371712
ref: 92037
CLAMP
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92055A
920551470
ref: 92055A
RING-O,27.5X2
€ 2.50
92059
920591033
ref: 92059
TUBE,4X9X155
€ 12.50
92059A
920591068
ref: 92059A
TUBE,4 X9 X230M/M
€ 12.50
92059B
920591365
ref: 92059B
TUBE,4X9X80
€ 9.50
92059C
920591533
ref: 92059C
TUBE,4X9X500,WHITE
€ 12.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
92066A
920661346
ref: 92066A
PLUG,PT3/8X10
€ 3.50
92150
921501122
ref: 92150
BOLT
€ 8.00
600
600A0900
ref: 600
BALL-STEEL,9/32
€ 2.50
670
670D1508
ref: 670
O RING,8MM
€ 2.50
92150A
921501123
ref: 92150A
BOLT
€ 3.00
92150B
921501368
ref: 92150B
BOLT,10X165
€ 13.00
92150C
921501369
ref: 92150C
BOLT,10X151
€ 12.50
92170
921701146
ref: 92170
CLAMP
€ 6.50
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
€ 2.50
