HEAD LAMP

ZX600D2A ZZR600 1991 UNITED KINGDOM FG

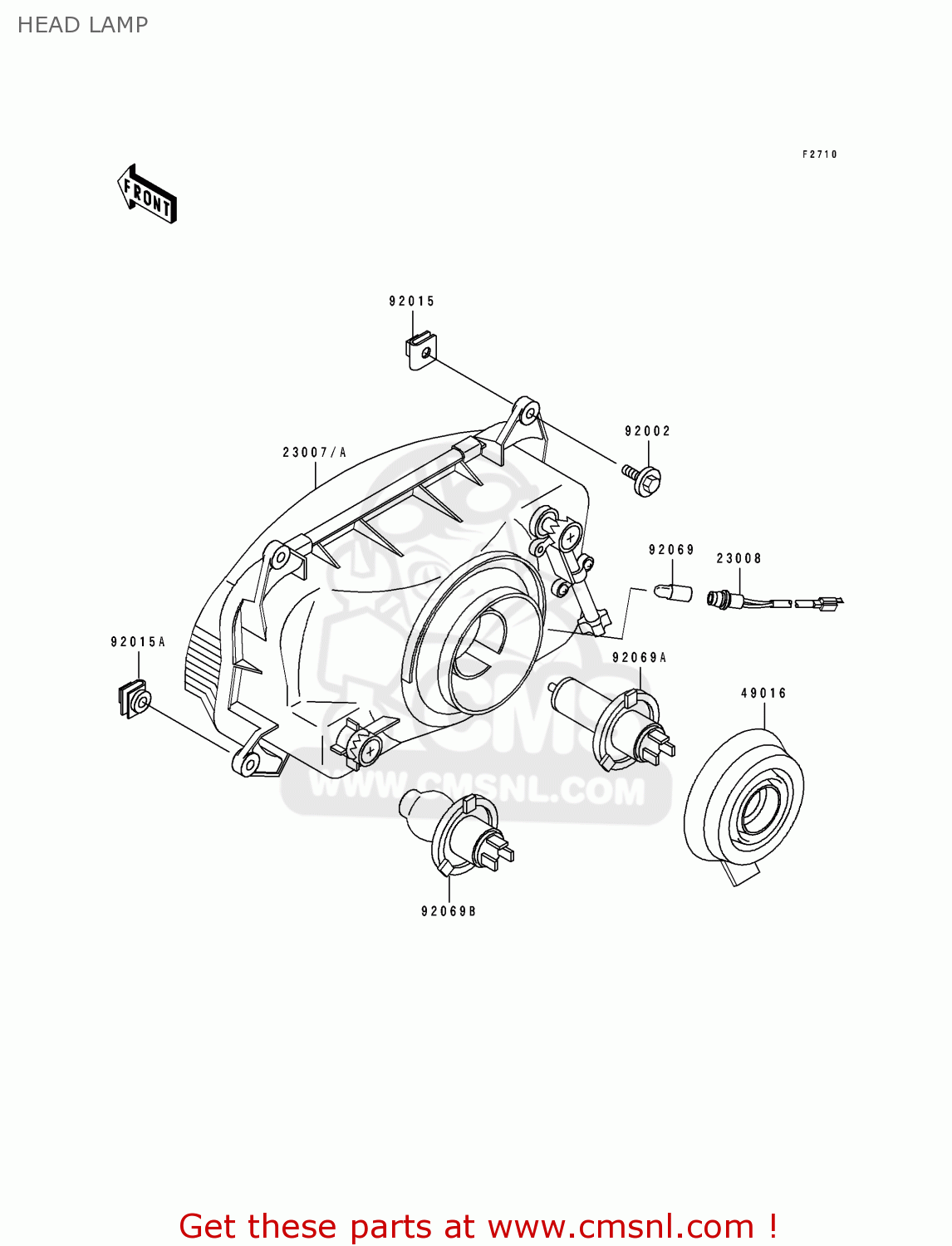

Head lamp diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

23007

230071229
ref: 23007
FG

LENS-COMP,HEAD LAMP

€ 233.50

23007A

230071230
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 341.00

23008

230081362
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021320
ref: 92002

BOLT,6X25

€ 3.00

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92015A

920151788
ref: 92015A

NUT,CLIP,6MM

€ 5.00

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A

BULB,12V-60155W

€ 15.00
