MUFFLER
ZX600D2A ZZR600 1991 UNITED KINGDOM FG

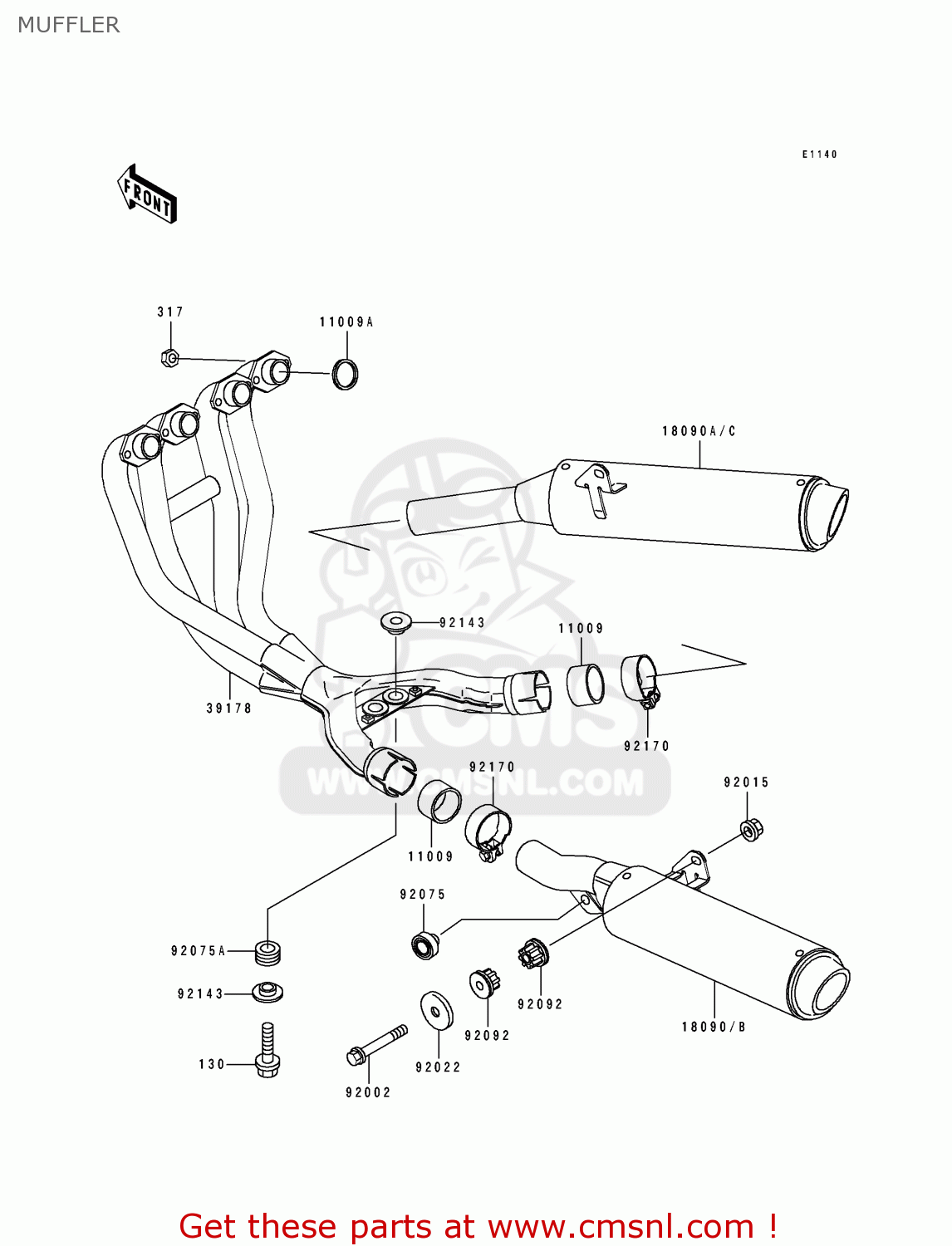

Muffler diagram ZX600D2A ZZR600 1991 UNITED KINGDOM FG
MUFFLER ZX600D2A ZZR600 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
130
130J1035
ref: 130
BOLT-FLANGED,10X35
€ 3.50
317
317J0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 2.50
11009
110091680
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 23.50
11009A
110091856
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 5.50
18090B
180901083
ref: 18090B
BODY-COMP-MUFFLER,LH
€ 260.50
18090C
180901084
ref: 18090C
BODY-COMP-MUFFLER,RH
€ 274.00
39178
391781158
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 912.50
92002
920021127
ref: 92002
BOLT,10X55
€ 6.00
92015
920151387
ref: 92015
NUT,FLANGED,10MM
€ 2.50
92022
92022289
ref: 92022
WASHER,PLAIN
€ 11.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
920751621
ref: 92075A
DAMPER,MUFFLER
€ 3.50
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
92143
921431395
ref: 92143
COLLAR
€ 4.50
92170
921701154
ref: 92170
CLAMP
€ 20.50
