TAILLIGHT(S)
ZL1000A2 1988 FRANCE FG NR

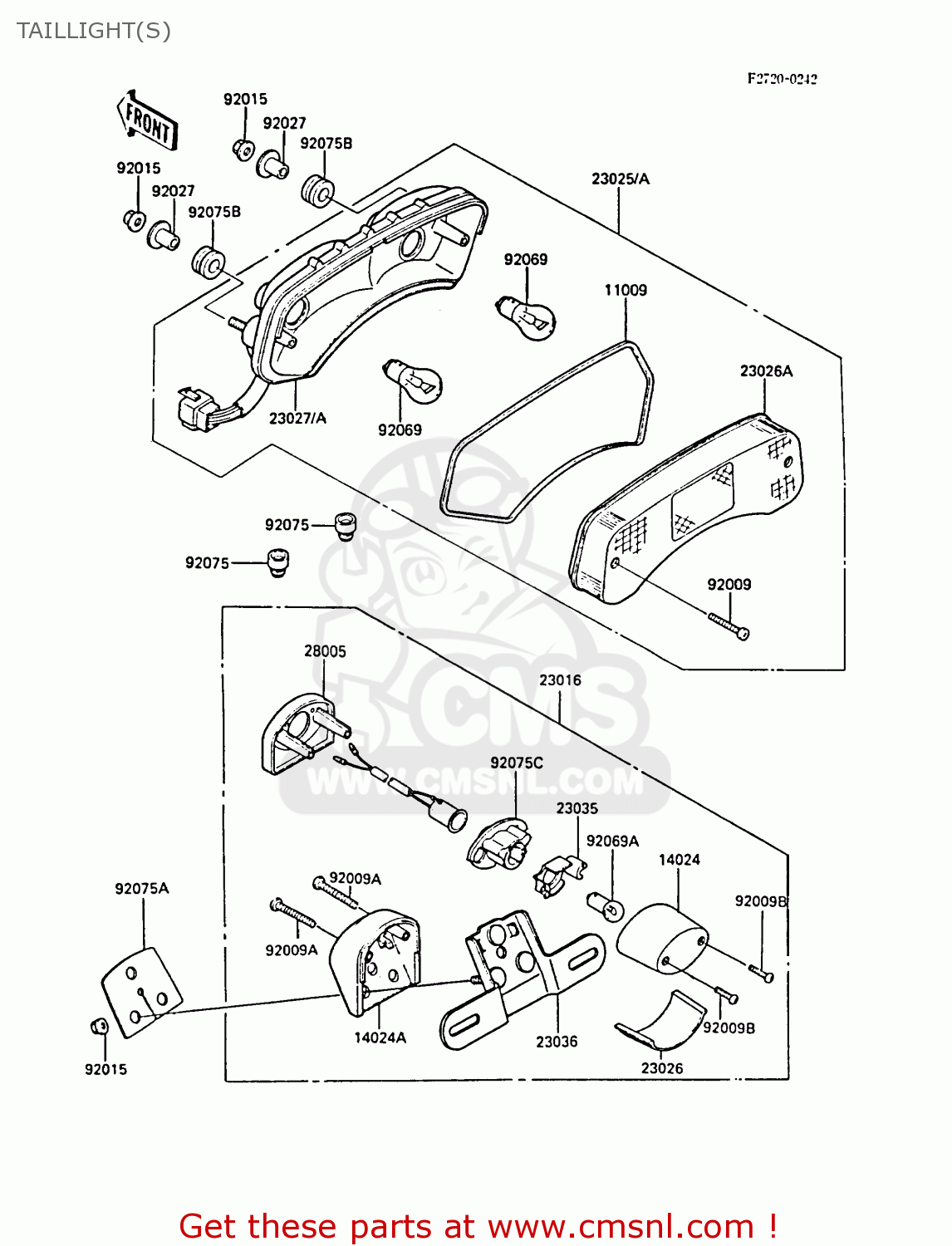

Taillight(s) diagram ZL1000A2 1988 FRANCE FG NR
TAILLIGHT(S) ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091524
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.00
14024
140251725
ref: 14024
COVER,LICENSE LAMP
€ 12.50
14024A
140251728
ref: 14024A
COVER,LICENSE LAMP
€ 43.00
23016
230161079
ref: 23016
LAMP-ASSY,LICENSE
€ 113.50
23025
230251160
ref: 23025
FR
LAMP-TAIL
€ 125.50
23025A
230251161
ref: 23025A
LAMP-TAIL
€ 125.50
23026
230261064
ref: 23026
LENS,LICENSE LAMP
€ 24.00
23026A
230261082
ref: 23026A
LENS,TAIL LAMP
€ 25.50
23027
230271080
ref: 23027
FR
BODY-COMP-TAIL LAMP
€ 83.50
23027A
230271081
ref: 23027A
BODY-COMP-TAIL LAMP
€ 125.50
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
€ 13.00
23036
230361107
ref: 23036
BRACKET-TAIL LAMP
€ 17.50
28005
280051051
ref: 28005
BODY-LAMP,LICENSE
€ 19.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92009A
920091263
ref: 92009A
SCREW,TAPPING,5X40
€ 2.50
92009B
920091378
ref: 92009B
SCREW,TAPPING,4X20
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075035
ref: 92075
DAMPER
€ 3.00
92075A
920751676
ref: 92075A
DAMPER,LICENSE LAMP
€ 5.50
92075B
920751690
ref: 92075B
DAMPER,10X24X12
€ 3.00
92075C
920751694
ref: 92075C
DAMPER,LICENSE LAMP
€ 12.00
