FUEL TANK
ZL1000A2 1988 FRANCE FG NR

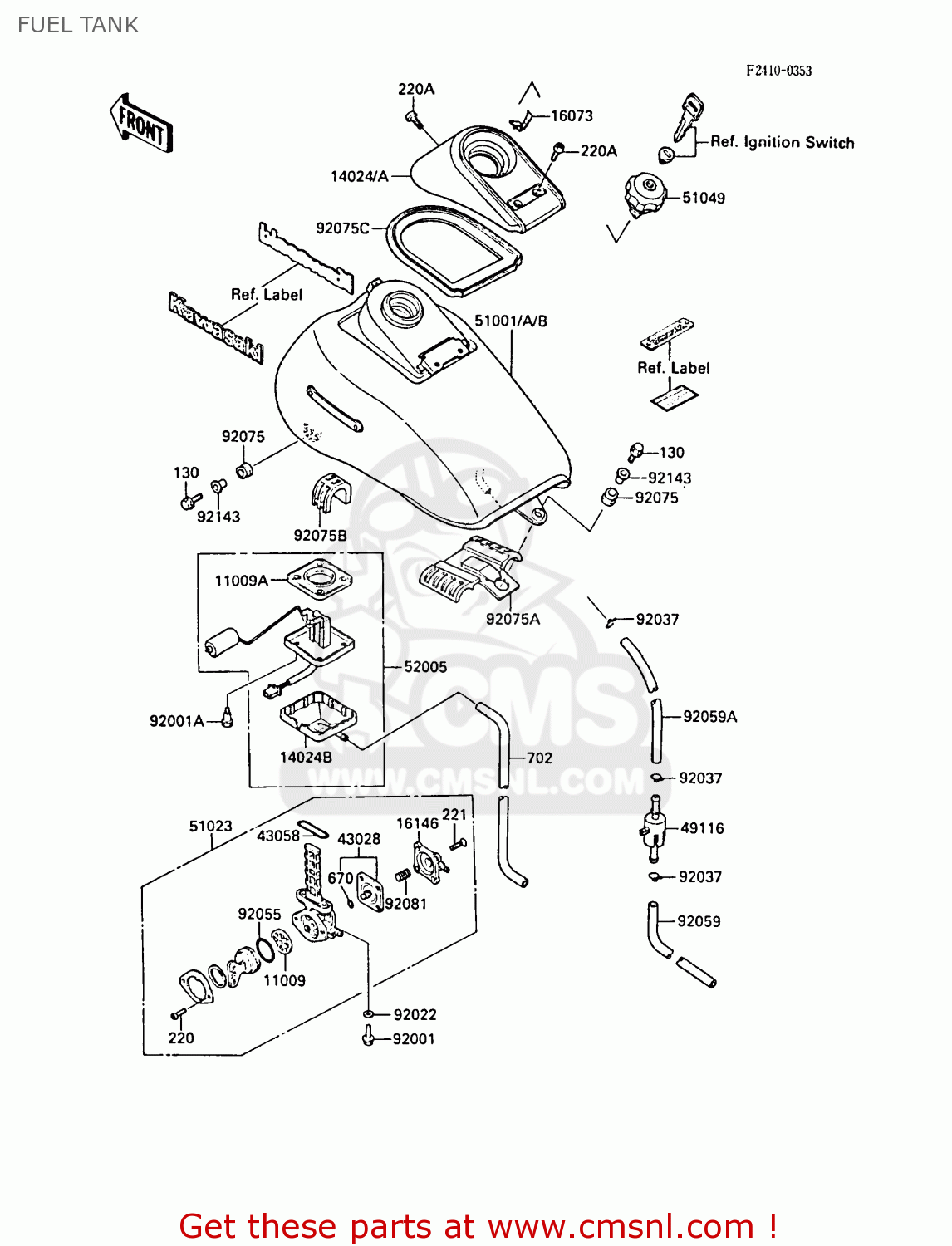

Fuel tank diagram ZL1000A2 1988 FRANCE FG NR
FUEL TANK ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091530
ref: 11009
GASKET,TAP VALVE (NAS)
€ 6.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
€ 14.50
14024
140241377H8
ref: 14024
FR
COVER,FUEL TANK,EBONY
€ 258.50
14024A
140245088H8
ref: 14024A
COVER,FUEL TANK,EBONY
€ 258.50
14024B
140251536
ref: 14024B
COVER,FUEL GAGE
€ 11.50
16073
160731061
ref: 16073
INSULATOR
€ 2.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 14.00
43028
430281015
ref: 43028
DIAPHRAGM,TAP
€ 14.50
43058
51039010
ref: 43058
RING,TAP FLANGED
€ 4.50
49116
491161063
ref: 49116
VALVE-ASSY,BREATHER
€ 19.50
51001
510011249CZ
ref: 51001
TANK-COMP-FUEL,C.G.BL
€ 654.50
51001B
510011249H8
ref: 51001B
FG
TANK-COMP-FUEL,EBONY
€ 941.00
51023
510231134
ref: 51023
TAP-ASSY,FUEL
€ 72.50
51049
510491087
ref: 51049
CAP-TANK,FUEL
€ 97.00
52005
520051077
ref: 52005
GAUGE,FUEL
€ 72.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
92055
920551027
ref: 92055
RING-O,TAP LEVER
€ 3.50
92059
920591625
ref: 92059
TUBE
€ 7.00
92059A
920591714
ref: 92059A
TUBE,5X8X320
€ 7.00
92075
920751057
ref: 92075
DAMPER
€ 3.00
92075A
920751846
ref: 92075A
DAMPER,FUEL TANK,RR
€ 28.50
92075B
920751862
ref: 92075B
DAMPER,FUEL TANK
€ 10.50
92075C
920751893
ref: 92075C
DAMPER,FUEL TANK COVE
€ 30.00
92081
920811171
ref: 92081
SPRING,TAP
€ 2.50
92143
921431041
ref: 92143
COLLAR,L=15.6
€ 5.50
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0510
ref: 220A
SCREW-PAN-CROS
€ 2.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07680
ref: 702
TUBE-RUBBER
€ 9.50
