CRANKCASE
ZL1000A2 1988 FRANCE FG NR

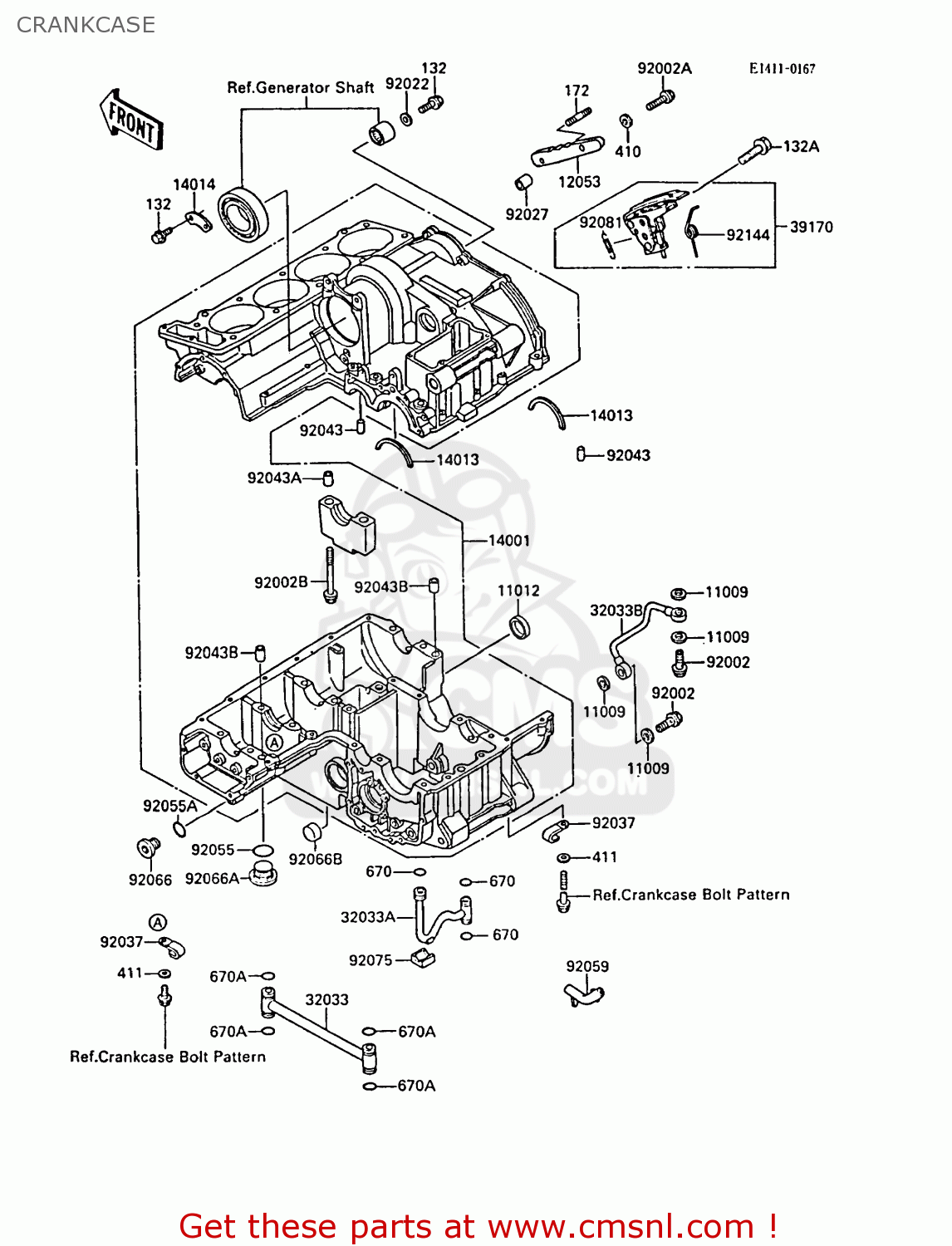

Crankcase diagram ZL1000A2 1988 FRANCE FG NR
CRANKCASE ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091376
ref: 11009
GASKET,12.5X18X1.5 (NAS)
€ 1.50
11012
110121454
ref: 11012
CAP
€ 6.50
12053
120531189
ref: 12053
GUIDE-CHAIN
€ 13.50
14001
140015214
ref: 14001
SET-CRANKCASE
€ 2,200.00
14013
140131005
ref: 14013
RING-POSITION
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
€ 9.50
32033
320331201
ref: 32033
PIPE,MAIN GALLARY
€ 37.50
32033A
320331202
ref: 32033A
PIPE
€ 27.50
32033B
320331961
ref: 32033B
PIPE
€ 37.00
39170
391701055
ref: 39170
TENSIONER-COMP
€ 177.00
92002
920011871
ref: 92002
BOLT,BANJO,12X23
€ 12.50
92002A
920021609
ref: 92002A
BOLT
€ 3.00
92002B
920021649
ref: 92002B
BOLT
€ 4.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92027
920271079
ref: 92027
COLLAR,8X15
€ 2.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
92042031
ref: 92043A
PIN,DOWEL,12X14
€ 4.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
€ 0.50
92055
920551136
ref: 92055
RING-O,OILPAN CAP
€ 3.00
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92059
920591508
ref: 92059
TUBE
€ 12.50
92066
920661096
ref: 92066
PLUG,MAIN GALLARY,18X
€ 7.50
92066A
920661161
ref: 92066A
PLUG,25X8
€ 7.00
92066B
920661204
ref: 92066B
PLUG,BALANCER
€ 3.00
92075
920751785
ref: 92075
DAMPER
€ 3.00
92081
920811668
ref: 92081
SPRING
€ 9.00
92144
920811971
ref: 92144
SPRING
€ 5.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
172
172G0616
ref: 172
STUD,6X16
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
670
670D1509
ref: 670
O RING,9MM
€ 3.00
670A
670D2016
ref: 670A
O RING,16MM
€ 1.00
