MUFFLER(S)
ZL1000A2 1988 FRANCE FG NR

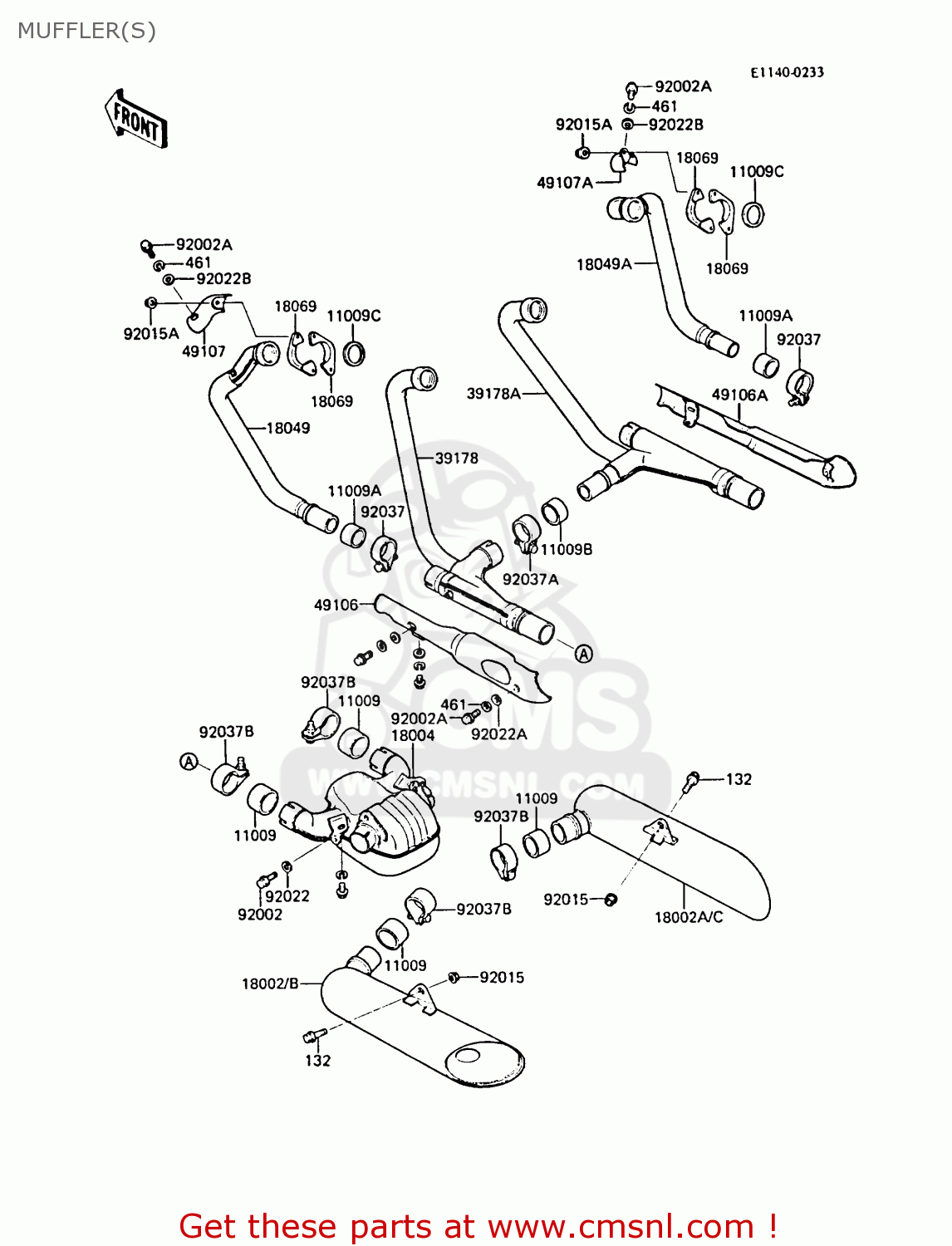

Muffler(s) diagram ZL1000A2 1988 FRANCE FG NR
MUFFLER(S) ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 20.50
11009A
110091667
ref: 11009A
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009B
110091668
ref: 11009B
GASKET,EXHAUST MANIFO (NAS)
€ 20.00
11009C
18067013
ref: 11009C
GASKET-EXHAUST PIPE (NAS)
€ 7.00
18002
180021749
ref: 18002
BODY-COMP-MUFFLER,LH
€ 338.00
18002A
180021750
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 338.00
18004
180041058
ref: 18004
CHAMBER-PREMUFFLER
€ 428.00
18049
180491409
ref: 18049
PIPE-EXHAUST,#1
€ 138.50
18049A
180491410
ref: 18049A
PIPE-EXHAUST,#4
€ 138.50
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
39178
391781120
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 189.00
39178A
391781121
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 189.00
49106
491061067
ref: 49106
COVER-MUFFLER,LH
€ 101.50
49106A
491061068
ref: 49106A
COVER-MUFFLER,RH
€ 101.50
49107
491071066
ref: 49107
COVER-EXHAUST PIPE,LH
€ 40.00
49107A
491071067
ref: 49107A
COVER-EXHAUST PIPE,RH
€ 40.00
92002
920021589
ref: 92002
BOLT,8X14
€ 3.00
92002A
920021608
ref: 92002A
BOLT
€ 3.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151380
ref: 92015A
NUT,LOCK,8MM
€ 3.00
92022
920221317
ref: 92022
WASHER,8.5X20X1.6,BLA
€ 2.00
92022A
920221716
ref: 92022A
WASHER
€ 2.50
92022B
92022193
ref: 92022B
WASHER,6.5X20X1.6,WHI
€ 3.50
92037
920371349
ref: 92037
CLAMP,42MM
€ 8.50
92037A
920371536
ref: 92037A
CLAMP,MUFFLER
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
€ 14.50
132
132E0835
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
461
461S0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
