CLUTCH
ZL1000A2 1988 FRANCE FG NR

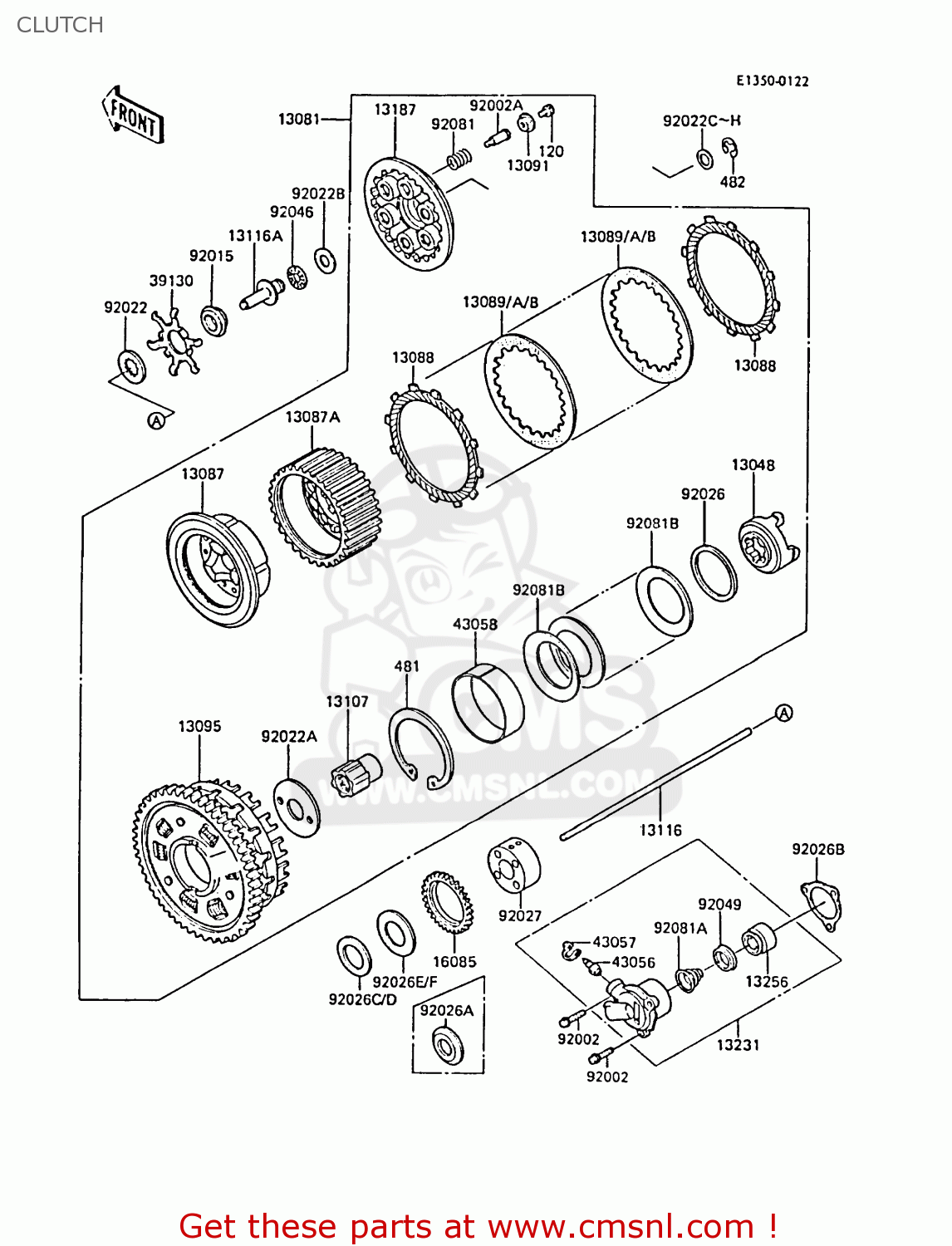

Clutch diagram ZL1000A2 1988 FRANCE FG NR
CLUTCH ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
13048
130481007
ref: 13048
CAM-DAMPER
€ 61.50
13081
130811236
ref: 13081
CLUTCH-ASSY
€ 517.50
13087
130871071
ref: 13087
HUB-CLUTCH
€ 164.50
13087A
130871072
ref: 13087A
HUB-CLUTCH
€ 378.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13089A
130891067
ref: 13089A
PLATE-CLUTCH,T=2.6 (NAS)
€ 7.00
13089B
130891068
ref: 13089B
PLATE-CLUTCH,T=2.0 (NAS)
€ 6.50
13091
130911041
ref: 13091
HOLDER CLUTCH SPRING
€ 8.50
13095
130951151
ref: 13095
HOUSING-COMP-CLUTCH
€ 348.00
13107
131071161
ref: 13107
SHAFT,BEVEL GEAR,FR
€ 60.50
13116
131161118
ref: 13116
ROD-PUSH,CLUTCH
€ 25.50
13116A
131161119
ref: 13116A
ROD-PUSH,CLUTCH
€ 23.50
13187
131871055
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 64.00
13231
132311056
ref: 13231
RELEASE-ASSY-CLUTCH
€ 108.50
13256
132561052
ref: 13256
PISTON
€ 43.50
16085
160851108
ref: 16085
GEAR,OIL PUMP
€ 117.00
39130
391301054
ref: 39130
SPRING-LEAF
€ 11.50
43056
430561052
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
€ 3.00
43058
430581059
ref: 43058
RING
€ 13.00
92002
920021613
ref: 92002
BOLT
€ 1.50
92002A
920021639
ref: 92002A
BOLT,CLUTCH
€ 7.50
92015
920151538
ref: 92015
NUT
€ 17.50
92022
920221114
ref: 92022
WASHER,TOOTHED,25X40X
€ 10.50
92022A
920221221
ref: 92022A
WASHER,CLUTCH THRUST
€ 10.50
92022B
920221463
ref: 92022B
WASHER,15.1X29X1.0
€ 3.00
92022C
920221750
ref: 92022C
WASHER,15.1X23X1.0
€ 5.50
92022D
920221751
ref: 92022D
WASHER,15.1X23X0.8
€ 6.00
92022E
920221752
ref: 92022E
WASHER,15.1X23X1.2
€ 6.00
92022F
920221753
ref: 92022F
WASHER,15.1X23X1.4
€ 5.50
92022G
920221754
ref: 92022G
WASHER,15.1X23X1.6
€ 5.50
92022H
920221755
ref: 92022H
WASHER
€ 5.50
92026
920261043
ref: 92026
SPACER,3.5X59X70
€ 19.00
92026B
920261263
ref: 92026B
SPACER,CLUTCH RELEASE
€ 11.50
92026C
920261306
ref: 92026C
SPACER
€ 12.50
92026E
920261307
ref: 92026E
SPACER
€ 12.50
92027
920271710
ref: 92027
COLLAR
€ 61.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92049
920491165
ref: 92049
SEAL-OIL,PISTON
€ 13.00
92081
920811114
ref: 92081
SPRING,CLUTCH
€ 4.50
92081A
920811644
ref: 92081A
SPRING,CLUTCH RELEASE
€ 5.50
92081B
920811906
ref: 92081B
SPRING
€ 24.00
120
120Q0616
ref: 120
BOLT,SOCKET,6X16
€ 4.50
481
481J9500
ref: 481
CIRCLIP
€ 16.00
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
