METER(S)
ZL1000A2 1988 FRANCE FG NR

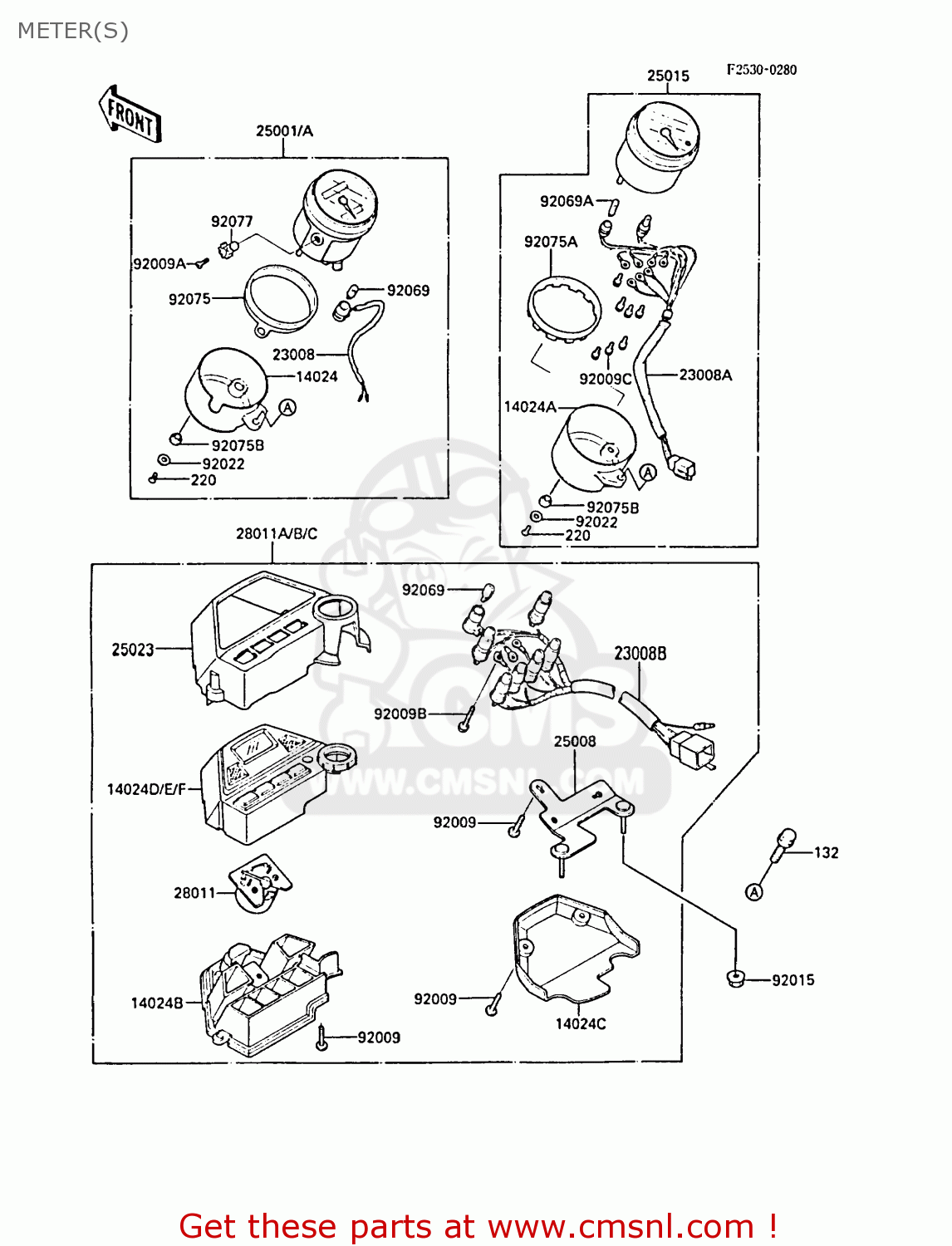

Meter(s) diagram ZL1000A2 1988 FRANCE FG NR
METER(S) ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
14024
140241096
ref: 14024
COVER,SPEEDOMETER
€ 112.50
14024A
140241097
ref: 14024A
COVER,TACHOMETER
€ 124.50
14024B
140241355
ref: 14024B
COVER,PILOT BOX,LWR
€ 42.00
14024C
140241356
ref: 14024C
COVER,PILOT BOX
€ 9.00
14024D
140241382
ref: 14024D
COVER,PILOT BOX,INNER
€ 67.00
14024E
140241383
ref: 14024E
FG
COVER,PILOT BOX,INNER
€ 64.00
23008
230081279
ref: 23008
SOCKET-ASSY,SPEEDOMET
€ 10.50
23008A
230081280
ref: 23008A
SOCKET-ASSY,TACHOMETE
€ 48.50
23008B
230081331
ref: 23008B
SOCKET-ASSY,PILOT BOX
€ 80.50
25001
250011662
ref: 25001
METER-ASSY,KPH
€ 457.50
25008
250081134
ref: 25008
BRACKET-METER,PILOT B
€ 27.50
25015
250151260
ref: 25015
TACHOMETER,X1000R/MIN
€ 319.50
25023
250231148
ref: 25023
COVER-METER CASE,UPP
€ 34.50
28011
280111090
ref: 28011
METER,FUEL
€ 54.00
28011A
280111094
ref: 28011A
METER,PILOT BOX
€ 668.50
28011B
280111095
ref: 28011B
FG
METER,PILOT BOX
€ 668.50
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92009C
920091406
ref: 92009C
SCREW,3X10
€ 2.50
92015
920151328
ref: 92015
NUT,FLANGED,5MM
€ 2.00
92022
920221822
ref: 92022
WASHER,4.5X10X0.8
€ 3.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92075
920751751
ref: 92075
DAMPER,SHOCK,METER
€ 10.50
92075A
920751752
ref: 92075A
DAMPER,SHOCK,METER
€ 10.50
92075B
920751753
ref: 92075B
DAMPER,METER FITTING
€ 3.50
92077
920771059
ref: 92077
KNOB,METER
€ 4.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
