FRAME

ZL1000A2 1988 FRANCE FG NR

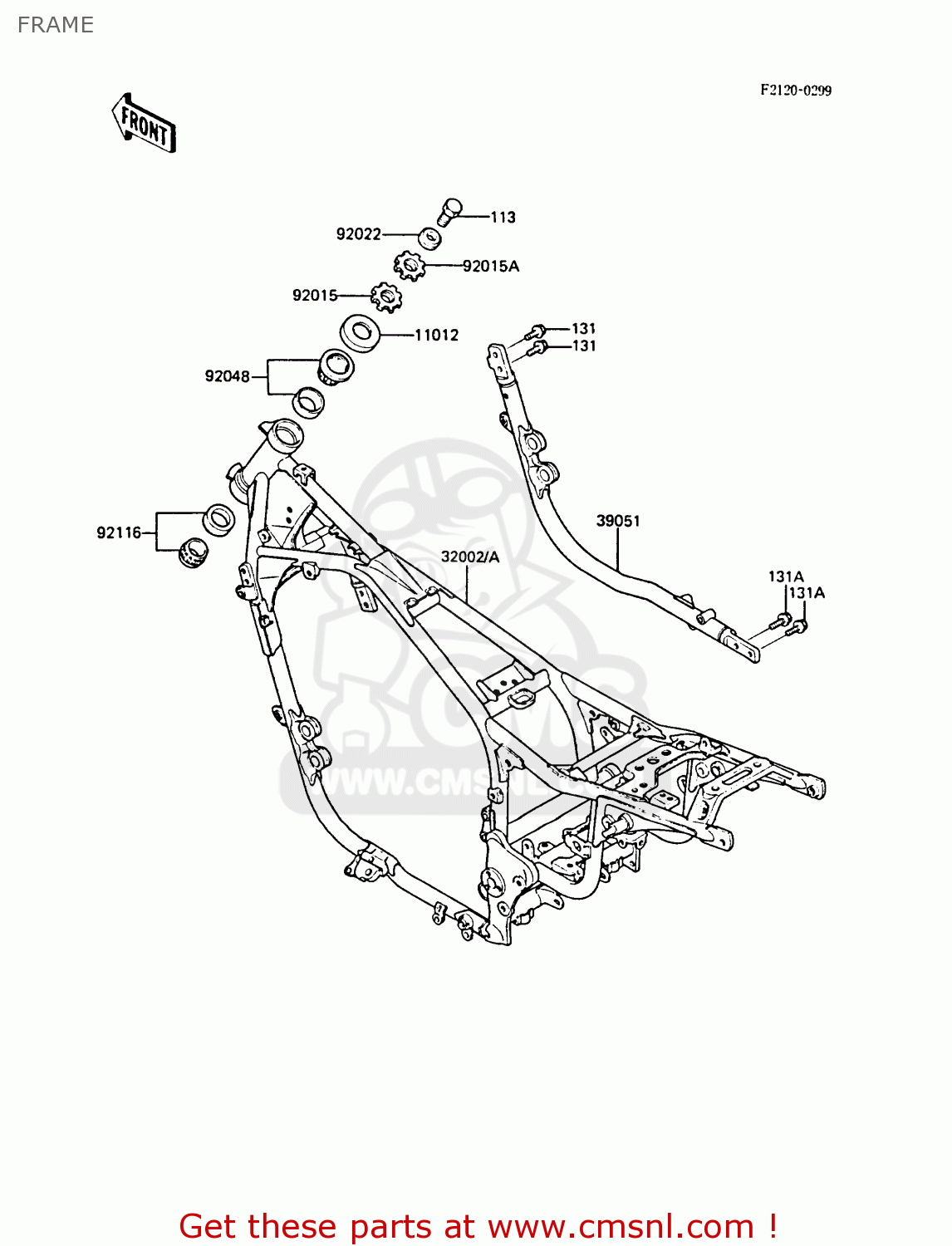

Frame diagram ZL1000A2 1988 FRANCE FG NR

prices are in EUR

ref

part #

description

quantity

11012

46098017
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021920
ref: 32002
FG

FRAME-COMP

€ 997.00

32002A

320021921
ref: 32002A

FRAME-COMP

€ 949.50

39051

390511051
ref: 39051

FRAME-COMP-SIDE

€ 226.50

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

131

131S0820
ref: 131

BOLT-FLANGED

€ 2.50

131A

131S0825
ref: 131A

BOLT-FLANGED

€ 2.00
