IGNITION SWITCH
ZL1000A2 1988 FRANCE FG NR

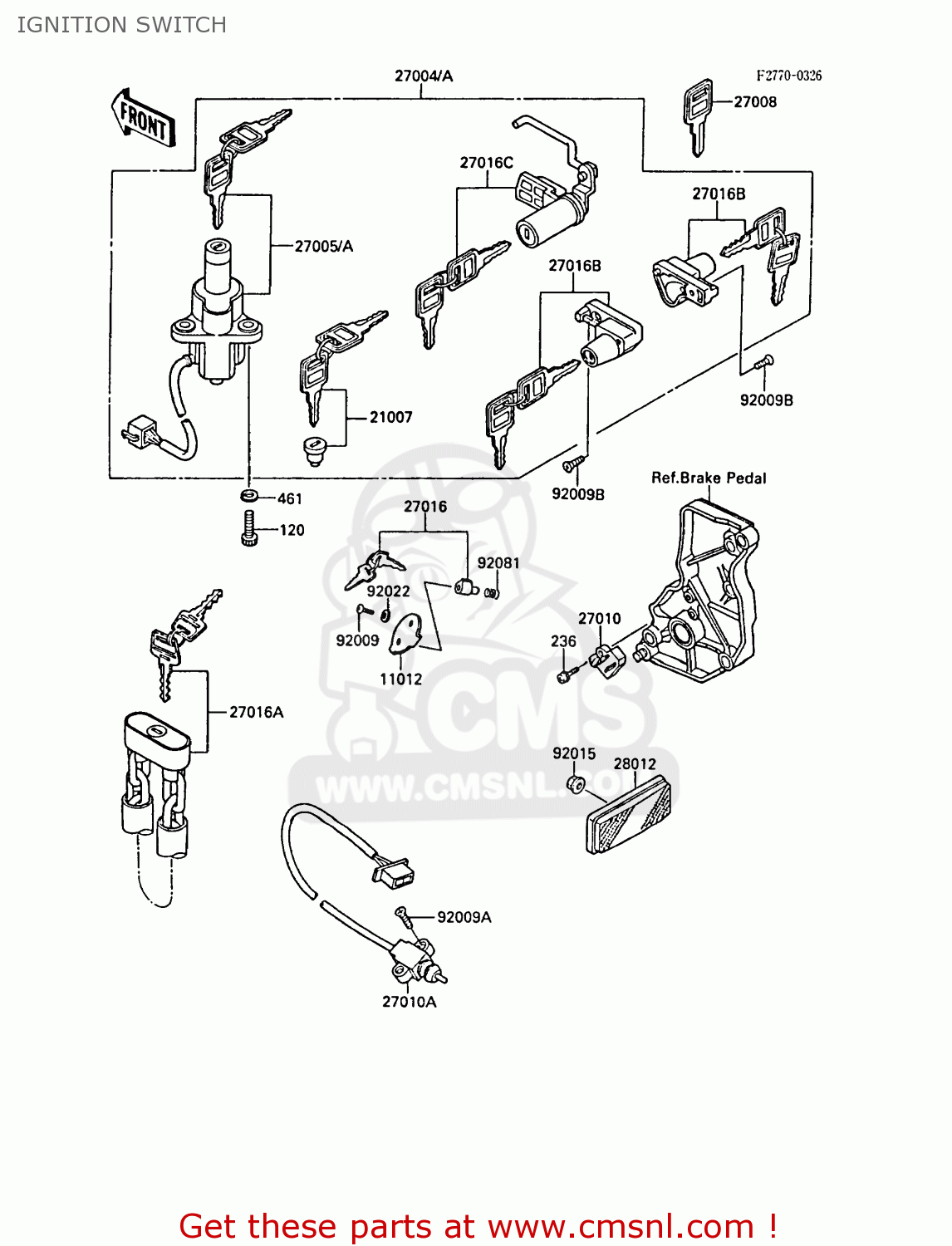

Ignition switch diagram ZL1000A2 1988 FRANCE FG NR
IGNITION SWITCH ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
FG
CAP,STEERING LOCK
€ 4.50
21007
210075005
ref: 21007
ROTOR,FUEL TANK
€ 71.00
27004
270045292
ref: 27004
SWITCH-ASSY
€ 275.50
27004A
270045299
ref: 27004A
FG
SWITCH-ASSY
€ 245.00
27005
270055045
ref: 27005
SWITCH-ASSY-IGNITION
€ 249.00
27005A
270055062
ref: 27005A
FG
SWITCH-ASSY-IGNITION
€ 151.50
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101185
ref: 27010
SWITCH,BRAKE/SIDE STA
€ 25.50
27010A
270101186
ref: 27010A
SWITCH,SIDE STAND
€ 43.00
27016
ref: 27016
FG
27016A
270161051
ref: 27016A
LOCK-ASSY,WHEEL
€ 104.50
27016B
270165060
ref: 27016B
LOCK-ASSY,HELMET
€ 71.50
27016C
270165117
ref: 27016C
LOCK-ASSY,SEAT
€ 66.50
28012
280121057
ref: 28012
REFLECTOR-REFLEX
€ 16.00
92009
92008007
ref: 92009
FG
SCREW-TAPPING
€ 2.50
92009A
920091359
ref: 92009A
SCREW
€ 2.50
92009B
920091401
ref: 92009B
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
92097003
ref: 92022
FG
WASHER
€ 2.50
92081
27032001
ref: 92081
FG
SPRING-STEERING LOCK
€ 3.50
120
120T0822
ref: 120
BOLT-SOCKET
€ 3.00
236
236B0416
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
461
461L0800
ref: 461
WASHER-SPRING
€ 0.50
