HEADLIGHT(S)
ZL1000A2 1988 FRANCE FG NR

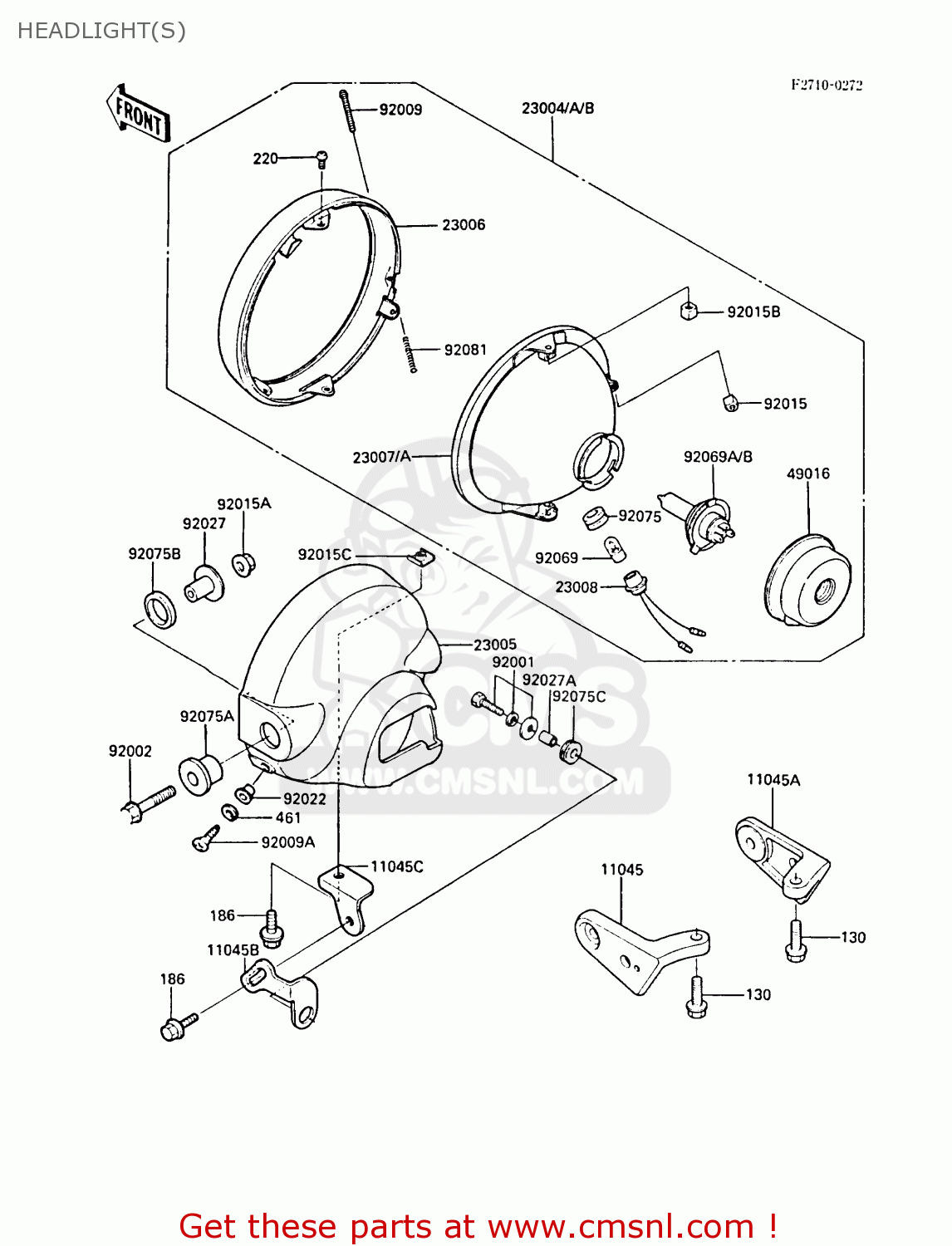

Headlight(s) diagram ZL1000A2 1988 FRANCE FG NR
HEADLIGHT(S) ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11045
110451153
ref: 11045
BRACKET,HEAD LAMP,LH
€ 51.50
11045A
110451154
ref: 11045A
BRACKET,HEAD LAMP,RH
€ 64.00
11045B
110451155
ref: 11045B
BRACKET,HEAD LAMP,LWR
€ 4.00
11045C
110451328
ref: 11045C
BRACKET,HEAD LAMP BOD
€ 14.00
23004
230041187
ref: 23004
FG
LAMP-HEAD
€ 451.50
23004A
230041189
ref: 23004A
LAMP-HEAD
€ 383.50
23005
230051058
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 72.50
23006
230061055
ref: 23006
RIM-LAMP
€ 55.00
23007
230071131
ref: 23007
LENS-COMP,HEAD LAMP
€ 108.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92001
920011852
ref: 92001
BOLT,6X25
€ 2.50
92002
920021503
ref: 92002
BOLT,FLANGED,8X40
€ 4.00
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
92011024
ref: 92009A
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
FG
BULB,12V-60155W
€ 15.00
92069B
920691004
ref: 92069B
BULB,12V 60/55W,H4,YE
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
920751109
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 4.00
92075B
920751110
ref: 92075B
DAMPER,HEAD LAMP FITT
€ 3.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
€ 3.00
130
130N0825
ref: 130
BOLT-FLANGED
€ 3.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
