ENGINE COVER(S)
ZL1000A2 1988 FRANCE FG NR

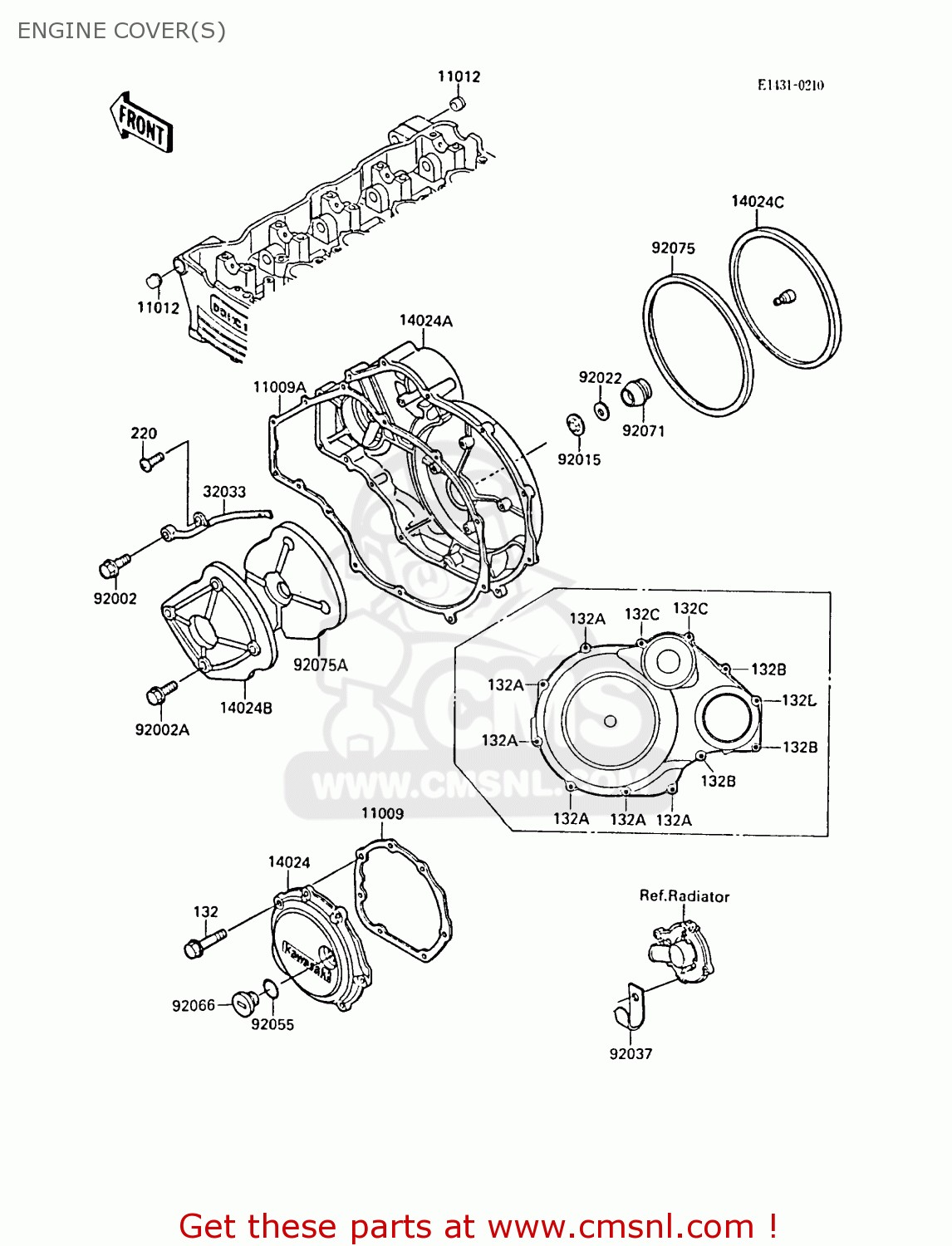

Engine cover(s) diagram ZL1000A2 1988 FRANCE FG NR
ENGINE COVER(S) ZL1000A2 1988 FRANCE FG NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091387
ref: 11009
GASKET,COVER,LH (MCA)
€ 6.50
11009A
110091388
ref: 11009A
GASKET,CLUTCH (MCA)
€ 9.50
11012
110121544
ref: 11012
CAP,HEAD
€ 3.00
14024
140241066
ref: 14024
COVER,LH
€ 90.00
14024A
140241067
ref: 14024A
COVER,CLUTCH
€ 238.50
14024B
140251740
ref: 14024B
COVER,SOUND ARRESTER
€ 14.00
14024C
140251814
ref: 14024C
COVER,CLUTCH COVER
€ 33.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
€ 20.50
92002
920011855
ref: 92002
BOLT,BANJO,8X20
€ 5.50
92002A
920021449
ref: 92002A
BOLT,6X10
€ 2.50
92015
92018004
ref: 92015
NUT,SPEED,5MM
€ 2.50
92022
92022104
ref: 92022
WASHER-SPEEDMETR FIT
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92055
920551146
ref: 92055
RING-O
€ 5.50
92066
920661218
ref: 92066
PLUG,COVER,LH
€ 10.00
92071
920711108
ref: 92071
GROMMET,CLUTCH COVER
€ 3.50
92075
920751594
ref: 92075
DAMPER,CLUTCH COVER
€ 16.50
92075A
920751708
ref: 92075A
DAMPER,SOUND ARRESTER
€ 83.00
132
132W0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132W0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0640
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132W0655
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
