TRANSMISSION
Z440D6 1984 EUROPE UK SD WG

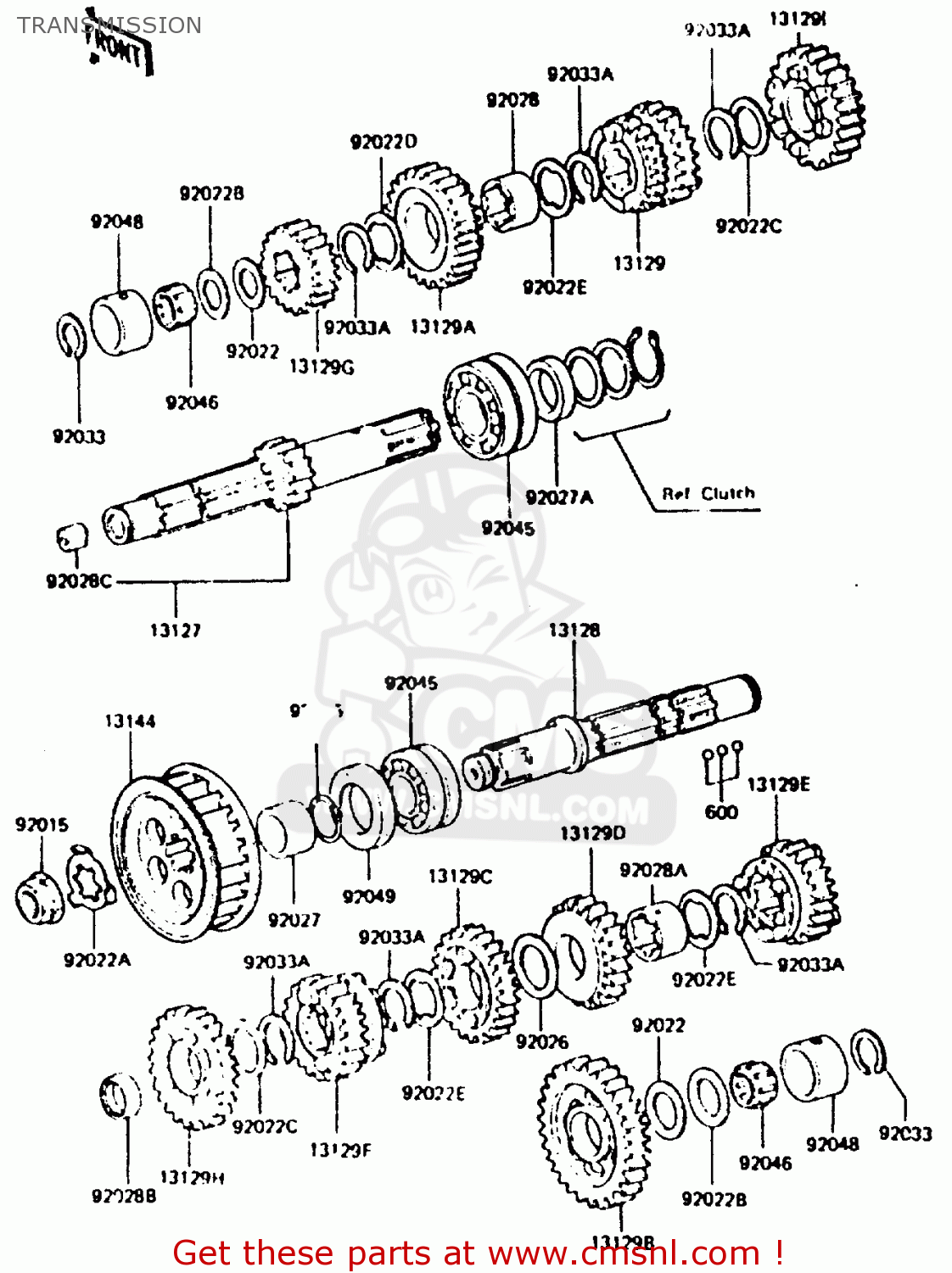

Transmission diagram Z440D6 1984 EUROPE UK SD WG
TRANSMISSION Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
13127
131271004
ref: 13127
SHAFT,DRIVE,13T
€ 109.50
13128
131281015
ref: 13128
SHAFT-TRANSMISSION OU
€ 256.50
13129
131291054
ref: 13129
3RD-4TH GEAR,DRIVE
€ 80.50
13129A
131291055
ref: 13129A
TOP GEAR,DRIVE SHAFT
€ 65.00
13129B
131291056
ref: 13129B
LOW GEAR,OUTPUT SHAFT
€ 61.00
13129C
131291058
ref: 13129C
3RD GEAR,OUTPUT SHAFT
€ 62.00
13129D
131291059
ref: 13129D
4TH GEAR OUTPUT
€ 47.50
13129E
131291060
ref: 13129E
5TH GEAR,OUTPUT SHAFT
€ 67.50
13129F
131291061
ref: 13129F
TOP GEAR,OUTPUT SHAFT
€ 40.00
13129G
131291062
ref: 13129G
2ND GEAR,DRIVE SHAFT
€ 30.00
13129H
131291172
ref: 13129H
2ND GEAR,OUTPUT,28T
€ 56.00
13129I
131291277
ref: 13129I
GEAR,INPUT5TH,23T
€ 67.00
13144
131441065
ref: 13144
SPROCKET-OUTPUT,24T
€ 67.50
92015
920151254
ref: 92015
NUT,20MM
€ 10.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
920221170
ref: 92022A
WASHER,CLAW
€ 3.50
92022B
92022144
ref: 92022B
SHIM-KICK SHAFT
€ 4.50
92022C
92022159
ref: 92022C
WASHER-THRUST,25MM
€ 5.50
92022D
92024033
ref: 92022D
WASHER,TOOTHED,25.5X3
€ 4.50
92022E
92024038
ref: 92022E
WASHER-LOCK
€ 4.00
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92027
92027288
ref: 92027
COLLAR,25X32X23.5
€ 22.50
92027A
92027289
ref: 92027A
COLLAR
€ 10.00
92028
920281002
ref: 92028
BUSHING,TOP DRIVE
€ 26.00
92028A
920281016
ref: 92028A
BUSHING,OUTPUT SHAFT
€ 21.00
92028B
920281177
ref: 92028B
BUSHING,2ND GEAR
€ 10.00
92028C
92028155
ref: 92028C
BUSHING,DRIVE SHAFT
€ 9.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92045
92045031
ref: 92045
BEARING-BALL,5205ANX4
€ 49.50
92046
92046044
ref: 92046
BEARING-NEEDLE,20R251
€ 23.00
92048
920481001
ref: 92048
RACE,OUTPUT AND DRIVE
€ 13.00
92049
92050024
ref: 92049
OIL SEAL SC325210
€ 5.00
92055
92055035
ref: 92055
O RING
€ 3.00
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
