HANDLEBAR
Z440D6 1984 EUROPE UK SD WG

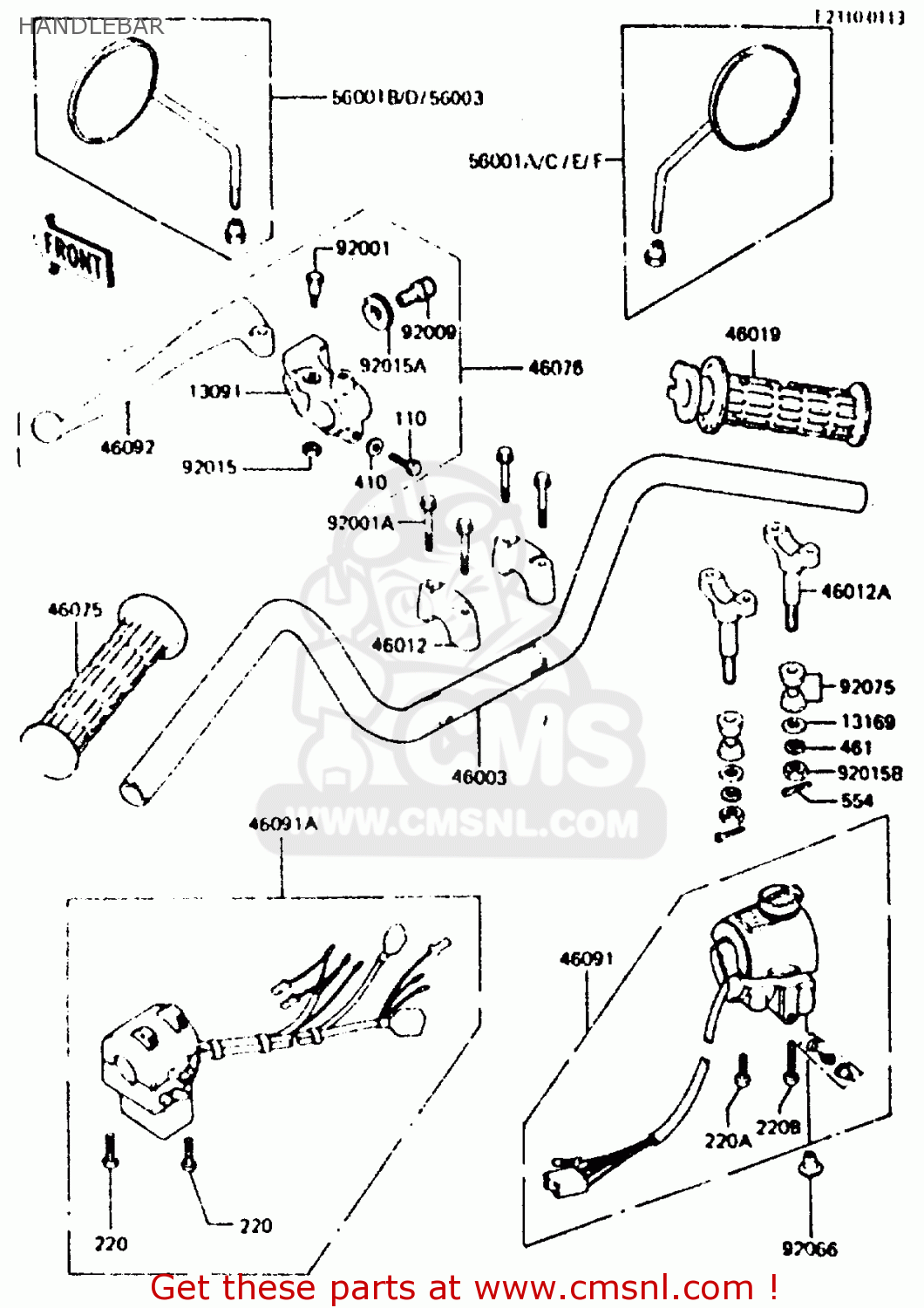

Handlebar diagram Z440D6 1984 EUROPE UK SD WG
HANDLEBAR Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
13091
130911046
ref: 13091
HOLDER,CLUTCH LEVER,F
€ 37.00
13169
46016003
ref: 13169
PLATE,HANDLE HOLDER
€ 3.50
46003
460031088
ref: 46003
HANDLE
€ 72.50
46012
46012008
ref: 46012
HOLDER-HANDLE,UPP
€ 23.00
46012A
46012010
ref: 46012A
HOLDER-HANDLE,LWR
€ 20.00
46019
460191017
ref: 46019
GRIP-ASSY,THROTTLE
€ 24.50
46075
460751022
ref: 46075
GRIP,LH
€ 8.50
46076
460761036
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 50.00
46091
460911325
ref: 46091
HOUSING-ASSY-CONTROL,
€ 82.50
46091A
460911327
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 192.50
46092
460921041
ref: 46092
LEVER-GRIP,CLUTCH,BLA
€ 12.50
56001
560011007
ref: 56001
EU
MIRROR-ASSY,LH
€ 36.50
56001A
560011008
ref: 56001A
EU
MIRROR-ASSY,RH
€ 36.50
56001B
560011021
ref: 56001B
UK
MIRROR-ASSY,LH
€ 62.50
56001C
560011022
ref: 56001C
UK
MIRROR-ASSY,RH
€ 58.50
56001D
560011023
ref: 56001D
WG
MIRROR-ASSY,LH
€ 78.50
56001E
560011024
ref: 56001E
WG
MIRROR-ASSY,RH
€ 71.50
56001F
56002022
ref: 56001F
SD
MIRROR-ASSY,RH
€ 64.00
56003
56003014
ref: 56003
SD
MIRROR-ASSY,LH
€ 43.50
92001
920011548
ref: 92001
BOLT,CLUTCH LEVER,BLA
€ 5.50
92001A
920011910
ref: 92001A
BOLT,FLANGED,8X35
€ 4.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92015B
920151414
ref: 92015B
NUT,10MM
€ 2.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92075
92075039
ref: 92075
DAMPER RUBBER-HANDLE
€ 3.00
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
220
220B0525
ref: 220
SCREW-PAN-CROS,5X25
€ 2.50
220A
220B0530
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220B0540
ref: 220B
SCREW-PAN-CROS
€ 2.00
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
461
461L1000
ref: 461
WASHER-SPRING
€ 0.50
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
