CARBURETOR PARTS
Z440D6 1984 EUROPE UK SD WG

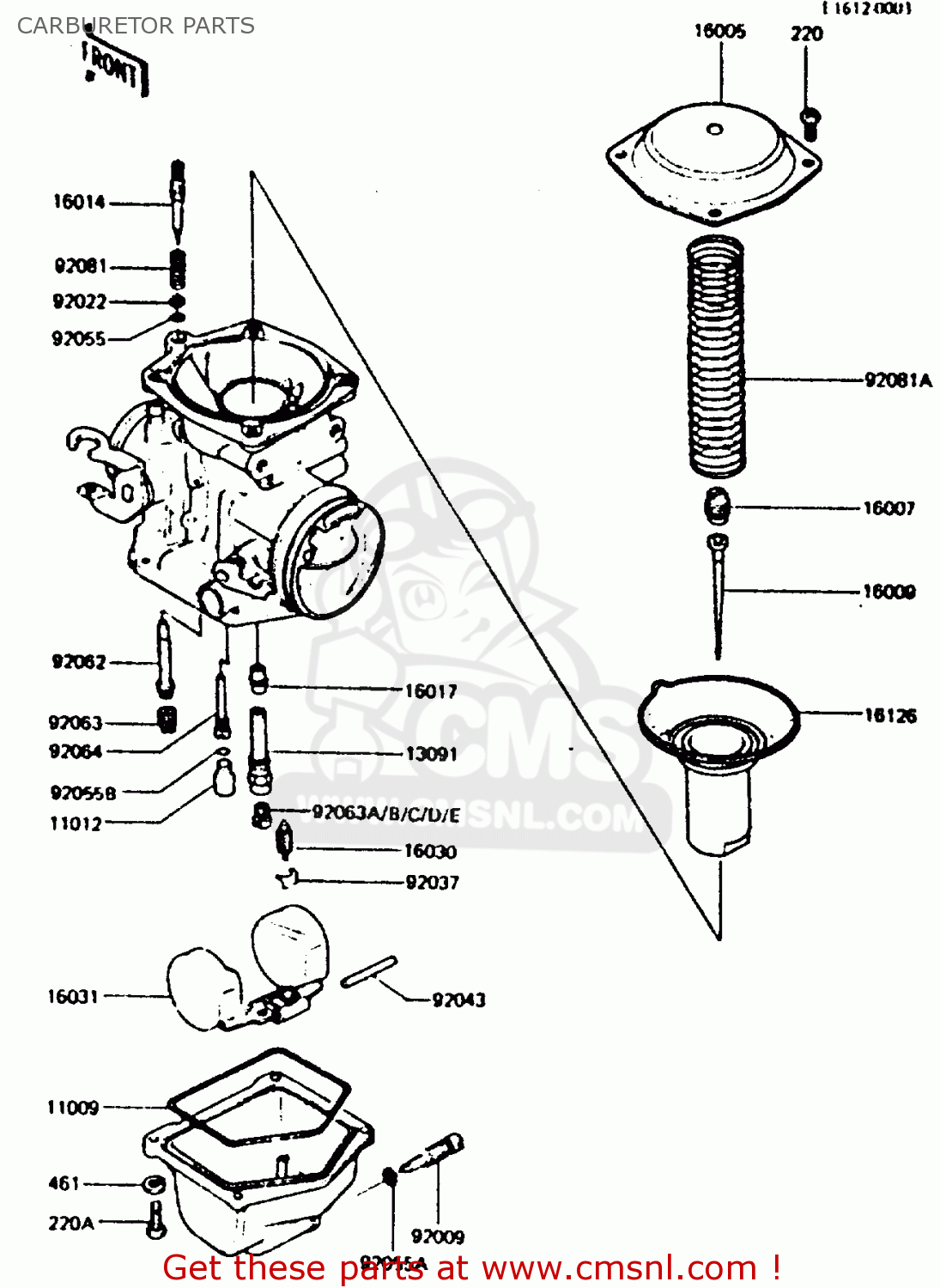

Carburetor parts diagram Z440D6 1984 EUROPE UK SD WG
CARBURETOR PARTS Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
EU, SD, UK
O RING,FLOAT CHAMBER
€ 15.00
11012
110121128
ref: 11012
EU, SD, UK
CAP,POLYACETAL
€ 13.50
13091
130911050
ref: 13091
EU, SD, UK
HOLDER,NEEDLE JET,N41
€ 16.00
16005
160051012
ref: 16005
EU, SD, UK
TOP-CHAMBER,MIXING
€ 24.00
16007
160071022
ref: 16007
EU, SD, UK
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091064
ref: 16009
EU, SD, UK
NEEDLE-JET,#N02A
€ 24.50
16014
160141011
ref: 16014
EU, SD, UK
SCREW-PILOT AIR
€ 9.00
16017
160171059
ref: 16017
EU, SD, UK
JET-NEEDLE
€ 33.00
16030
160301007
ref: 16030
EU, SD, UK
FLOAT VALVE ASSY
€ 37.00
16031
160311001
ref: 16031
EU, SD, UK
FLOAT
€ 38.50
16126
161261023
ref: 16126
EU, SD, UK
VACUUM,PISTON
€ 322.00
92009
920091095
ref: 92009
EU, SD, UK
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
EU, SD, UK
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
EU, SD, UK
CLIP, FLOAT VALVE
€ 4.00
92043
920431002
ref: 92043
EU, SD, UK
PIN,FLOAT
€ 3.50
92055
920551002
ref: 92055
EU, SD, UK
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
EU, SD, UK
O RING,DRAIN SCREW
€ 3.00
92055B
920551088
ref: 92055B
EU, SD, UK
RING-O
€ 12.50
92062
920621001
ref: 92062
EU, SD, UK
NOZZLE,MAIN
€ 15.50
92063
920631002
ref: 92063
EU, SD, UK
JET-MAIN,PRI,#70
€ 10.00
92063A
920631003
ref: 92063A
EU, SD, UK (RACING U
MAIN JET, 2ND, # 90
€ 9.50
92063B
920631023
ref: 92063B
EU, SD, UK
JET-MAIN,#85
€ 9.50
92063C
920631024
ref: 92063C
EU, SD, UK (RACING U
JET-MAIN,#88
€ 10.00
92063D
920631037
ref: 92063D
EU, SD, UK (RACING U
JET-MAIN,#80
€ 9.00
92063E
920631044
ref: 92063E
EU, SD, UK (RACING U
JET-MAIN,#82
€ 10.00
92064
920641001
ref: 92064
EU, SD, UK
JET-PILOT,#35
€ 14.00
92081
920811002
ref: 92081
EU, SD, UK
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811257
ref: 92081A
EU, SD, UK
SPRING
€ 21.00
220
220B0408
ref: 220
EU, SD, UK
SCREW-PAN-CROS
€ 0.50
220A
220B0412
ref: 220A
EU, SD, UK
SCREW-PAN CROS 4X12
€ 0.50
461
461F0400
ref: 461
EU, SD, UK
WASHER-SPRING,4MM
€ 0.50
