CARBURETOR PARTS "A"
Z440D6 1984 EUROPE UK SD WG

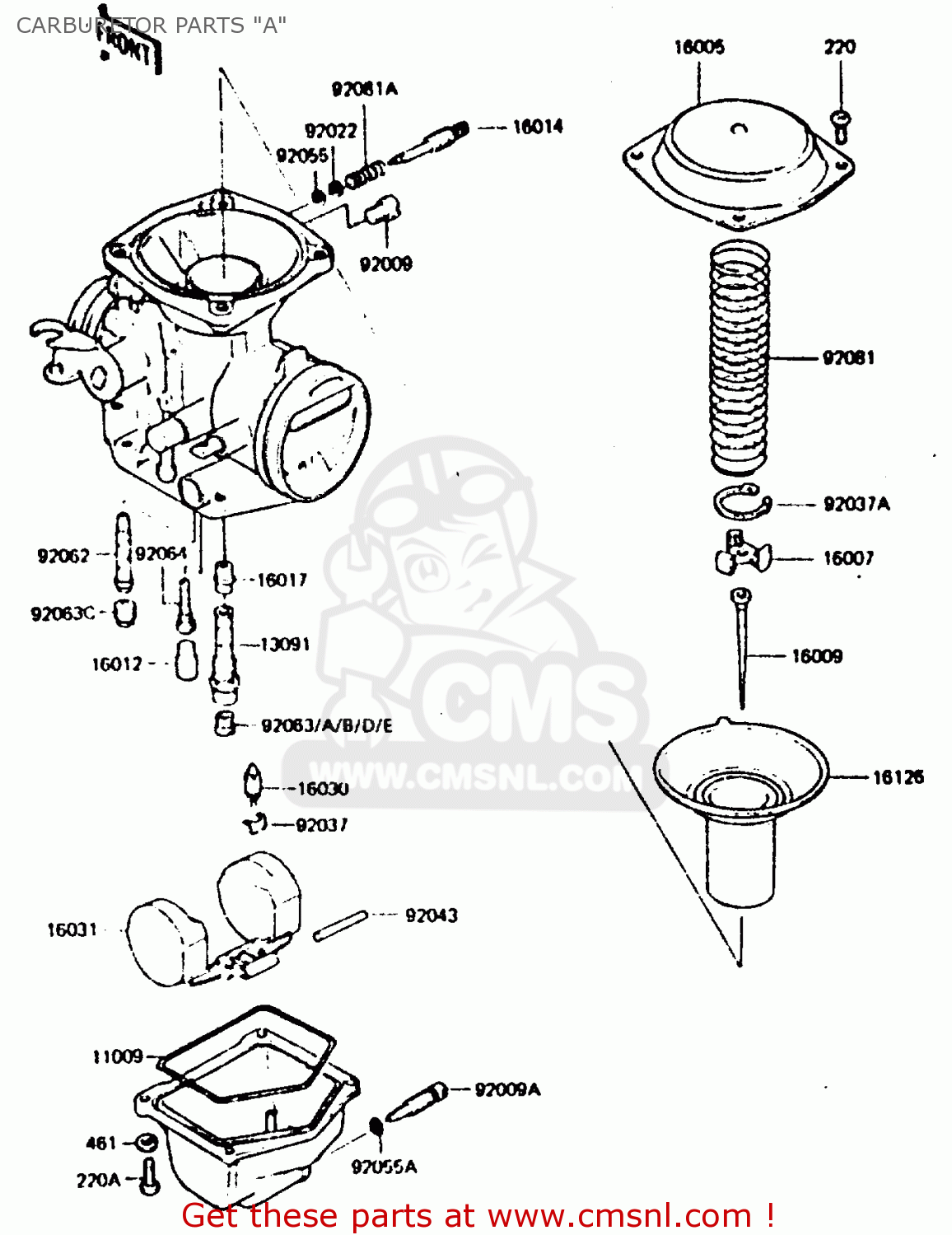

Carburetor parts "a" diagram Z440D6 1984 EUROPE UK SD WG
CARBURETOR PARTS "A" Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
WG
O RING,FLOAT CHAMBER
€ 15.00
13091
130911047
ref: 13091
WG
HOLDER N413-02000
€ 13.00
16005
160051001
ref: 16005
WG
TOP-CHAMBER,MIXING
€ 23.50
16007
160071001
ref: 16007
WG
SEAT-SPRING,THROTTLE
€ 8.00
16009
160091039
ref: 16009
WG
NEEDLE-JET,#003002
€ 24.50
16012
160121001
ref: 16012
WG
CAP,RUBBER
€ 3.50
16014
160141009
ref: 16014
WG
SCREW-PILOT AIR
€ 12.00
16017
160171001
ref: 16017
WG
JET-NEEDLE
€ 26.50
16030
160301007
ref: 16030
WG
FLOAT VALVE ASSY
€ 37.00
16031
160311001
ref: 16031
WG
FLOAT
€ 38.50
16126
161261034
ref: 16126
WG
VALVE,VACUUM
€ 177.50
92009
920091004
ref: 92009
WG
SCREW, PLUG
€ 5.50
92009A
920091095
ref: 92009A
WG
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WG
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
WG
CLIP, FLOAT VALVE
€ 4.00
92037A
920371005
ref: 92037A
WG
CLAMP
€ 5.50
92043
920431002
ref: 92043
WG
PIN,FLOAT
€ 3.50
92055
920551002
ref: 92055
WG
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
WG
O RING,DRAIN SCREW
€ 3.00
92062
920621001
ref: 92062
WG
NOZZLE,MAIN
€ 15.50
92063
920631036
ref: 92063
WG (RACING USE ONLY)
JET-MAIN,#75
€ 9.00
92063A
920631043
ref: 92063A
WG (RACING USE ONLY)
JET-MAIN,#78
€ 7.50
92063B
920631091
ref: 92063B
WG
MAIN JET,2ND,#72
€ 7.50
92063C
920631092
ref: 92063C
WG
MAIN JET,PRI,#78
€ 6.50
92063D
920631093
ref: 92063D
WG (RACING USE ONLY)
MAIN JET,2ND,#68
€ 8.00
92063E
920631094
ref: 92063E
WG (RACING USE ONLY)
JET-MAIN,#70
€ 8.00
92064
920641001
ref: 92064
WG
JET-PILOT,#35
€ 14.00
92081
920811001
ref: 92081
WG
SPRING
€ 10.00
92081A
920811002
ref: 92081A
WG
SPRING,PIROT ADJ SCRW
€ 3.50
220
220B0408
ref: 220
WG
SCREW-PAN-CROS
€ 0.50
220A
220B0412
ref: 220A
WG
SCREW-PAN CROS 4X12
€ 0.50
461
461F0400
ref: 461
WG
WASHER-SPRING,4MM
€ 0.50
