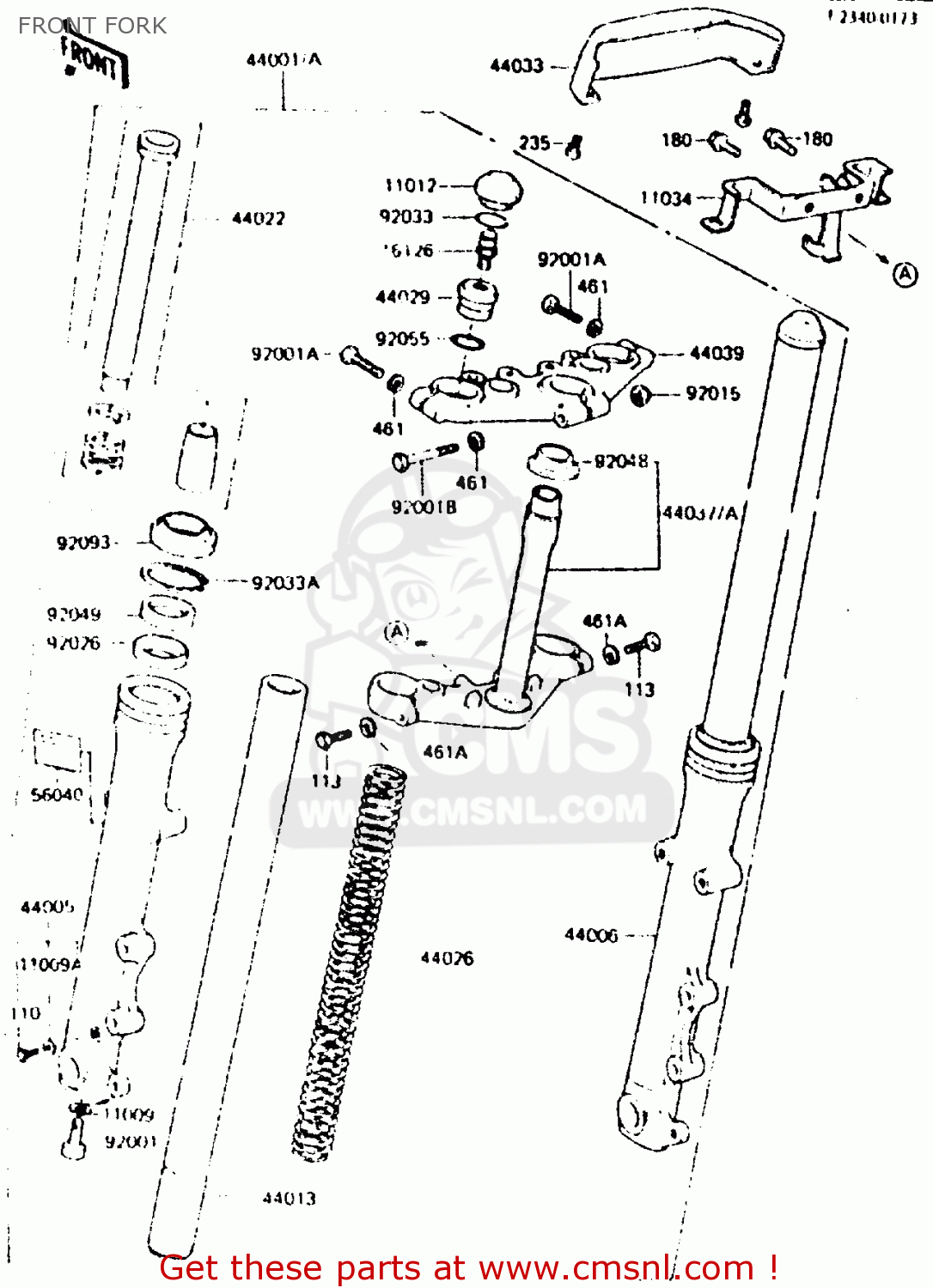

FRONT FORK

ref

part #

description

quantity

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

11009A

44045052
ref: 11009A

GASKET,DRAIN PLUG (NAS)

€ 6.00

11012

110121196
ref: 11012

CAP,RUBBER,FORK TOP

€ 8.00

11034

110341758
ref: 11034

BRACKET,FORK COVER

€ 17.00

16126

161261025
ref: 16126

VALVE,AIR

€ 19.00

44001

440011374
ref: 44001
EU, UK

FORK-FRONT

€ 898.50

44001A

440011375
ref: 44001A
SD, WG

FORK-FRONT

€ 1,321.50

44005

440051103
ref: 44005

PIPE-LEFT FORK OUTER

€ 193.00

44006

440061103
ref: 44006

PIPE-RIGHT FORK OUTER

€ 193.00

44013

440131025
ref: 44013

PIPE-FORK INNER

€ 124.00

44022

440221028
ref: 44022

CYLINDER,FORK

€ 71.50

44026

440261118
ref: 44026

SPRING-FRONT FORK

€ 32.50

44029

440291027
ref: 44029

SEAT-FORK SPRING

€ 7.50

44033

440331062
ref: 44033

COVER-FORK

€ 20.00

44037

440371014
ref: 44037
EU, UK

STEM,STEERING

€ 267.00

44037A

440371053
ref: 44037A
SD, WG

STEM,STEERING,GMN

€ 267.00

44039

440391023
ref: 44039

HEAD,STEERING STEM

€ 99.00

56040

560401024
ref: 56040

LABEL-WARNING

€ 2.00

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011739
ref: 92001A

BOLT,8X40

€ 3.50

92001B

920011740
ref: 92001B

BOLT,8X55

€ 5.50

92015

920151235
ref: 92015

NUT,8MM

€ 3.00

92026

920261119
ref: 92026

SPACER,FORK

€ 6.50

92053

44044023
ref: 92053

CIRCLIP

€ 3.50

92033A

920331070
ref: 92033A

RING-SNAP

€ 3.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92049

920491077
ref: 92049

OIL SEAL,FORK

€ 13.50

92055

44046025
ref: 92055

'O' RING, FORK

€ 4.00

92093

920931084
ref: 92093

SEAL,FORK

€ 14.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

113

113B1035
ref: 113

BOLT-HEX HEAD,10X35

€ 3.50

180

180B0612
ref: 180

BOLT-UPSET-WS,6X12

€ 2.50

235

235B0410
ref: 235

SCREW-PAN-WP-CROS

€ 2.00

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50
