CHANGE DRUM/SHIFT FORK
Z440D6 1984 EUROPE UK SD WG

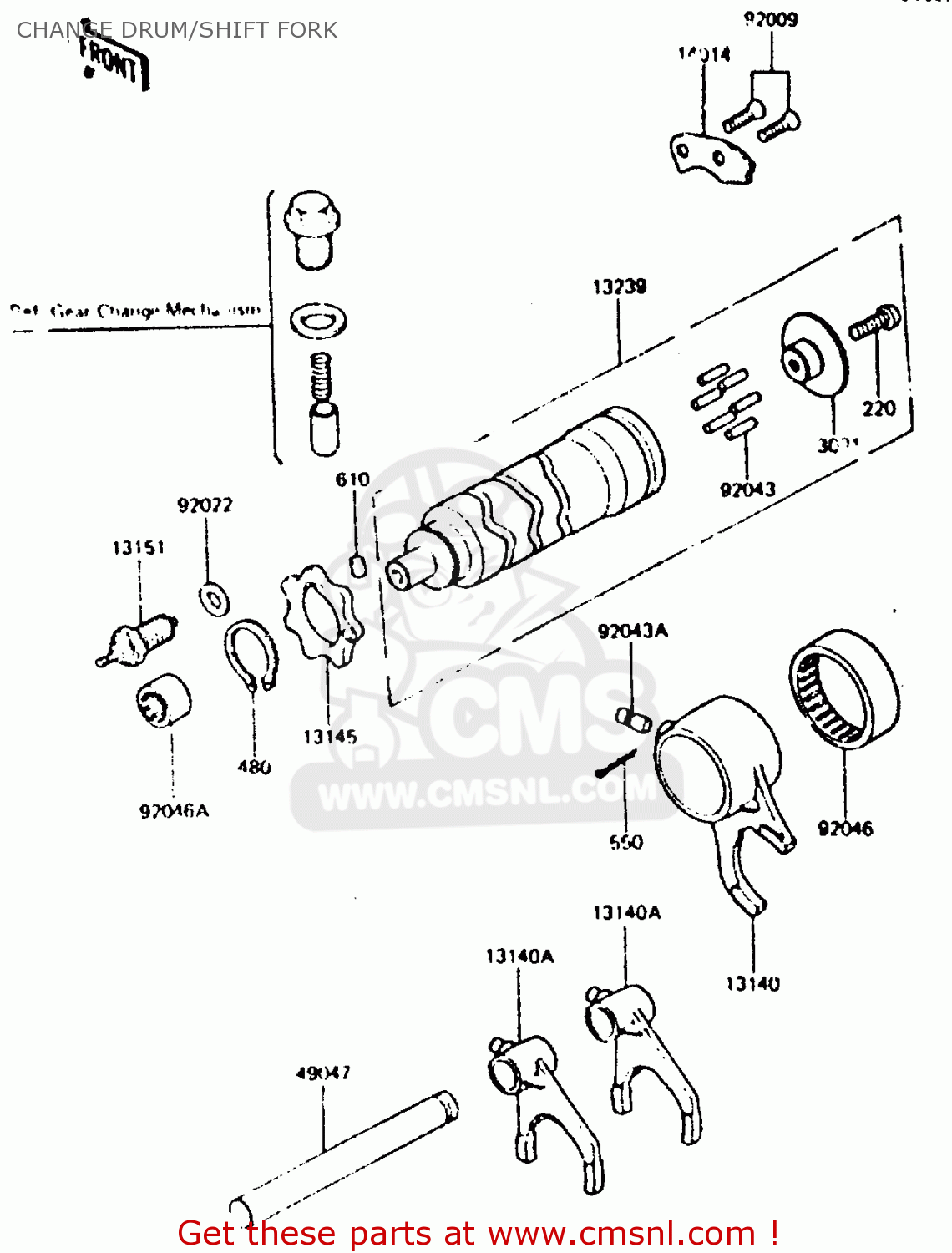

Change drum/shift fork diagram Z440D6 1984 EUROPE UK SD WG
CHANGE DRUM/SHIFT FORK Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
13091
13142016
ref: 13091
PLATE,SHIFT DRUM PIN
€ 26.00
13140
131401053
ref: 13140
FORK-SHIFT,5TH&TOP
€ 35.50
13140A
131401067
ref: 13140A
FORK-SHIFT,1,4&2,3
€ 51.00
13145
131451001
ref: 13145
CAM-CHANGE DRUM
€ 11.50
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
13239
132391011
ref: 13239
DRUM ASSY,CHANGE
€ 127.00
14014
140141001
ref: 14014
PLATE,SFT DRUM POSTON
€ 8.50
49047
13209022
ref: 49047
ROD,SHIFT
€ 8.00
92009
920091007
ref: 92009
SCREW,CSK,6X16
€ 2.00
92022
920221208
ref: 92022
WASHER,PLAIN
€ 2.50
92043
92042014
ref: 92043
PIN-GEAR CHANGE DRUM
€ 0.50
92043A
92042021
ref: 92043A
PIN,DOWEL,8X18
€ 7.00
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
€ 23.00
92046A
920461010
ref: 92046A
BEARING-NEEDLE,HK1210
€ 17.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
550
550D3020
ref: 550
PIN-COTTER,3.0X20
€ 2.00
610
610A0406
ref: 610
ROLLER,4X6
€ 2.50
