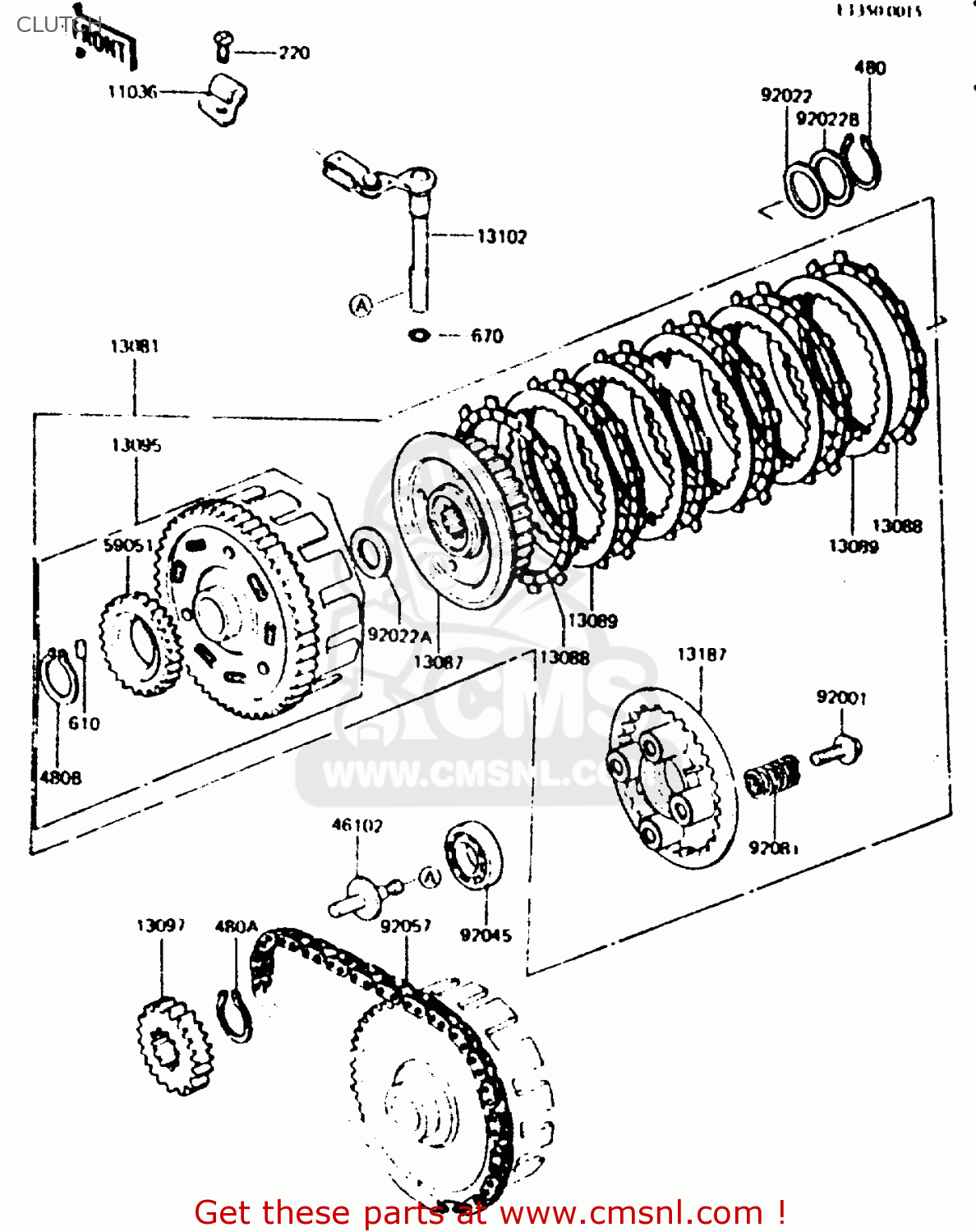

CLUTCH

ref

part #

description

quantity

11036

110361125
ref: 11036

BRACKET-A,CLUTCH RELE

€ 3.00

13081

130811067
ref: 13081

CLUTCH-ASSY

€ 471.00

13087

13087040
ref: 13087

HUB,CLUTCH

€ 56.00

13088

130881001
ref: 13088

PLATE-FRICTION (NAS)

€ 11.50

13089

13089026
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13095

130951008
ref: 13095

HOUSING-COMP-CLUTCH

€ 237.50

13097

13121030
ref: 13097

SPROCKET,PRIMARY

€ 38.50

13102

131021009
ref: 13102

RELEASE-COMP-CLUTCH

€ 32.50

13187

131871007
ref: 13187

PLATE-CLUTCH OPERATIN

€ 36.50

46102

461021031
ref: 46102

ROD,CLUTCH

€ 13.00

59051

590511001
ref: 59051

GEAR OIL PUMP,34T

€ 32.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92022

92022225
ref: 92022

WASHER-THRUST

€ 3.50

92022A

92022288
ref: 92022A

WASHER,CLUTCH THRUST

€ 9.00

92022B

92022302
ref: 92022B

WASHER,CLUTCH THRUST

€ 3.50

92045

920451045
ref: 92045

BEARING-BALL,16005

€ 27.00

92057

13122005A
ref: 92057

CHAIN,63-139X74L(TUBA

€ 208.00

92081

920811033
ref: 92081

SPRING,CLUTCH

€ 6.50

220

220X0616
ref: 220

SCREW-PAN-CROS

€ 2.00

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.50

480A

480J3000
ref: 480A

CIRCLIP-TYPE-C,30MM

€ 3.50

480B

480J3800
ref: 480B

CIRCLIP-TYPE-C,38MM

€ 3.50

610

610A0606
ref: 610

PIN,DOWEL,6X6

€ 1.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00
