CAMSHAFT/TENSIONER
Z440D6 1984 EUROPE UK SD WG

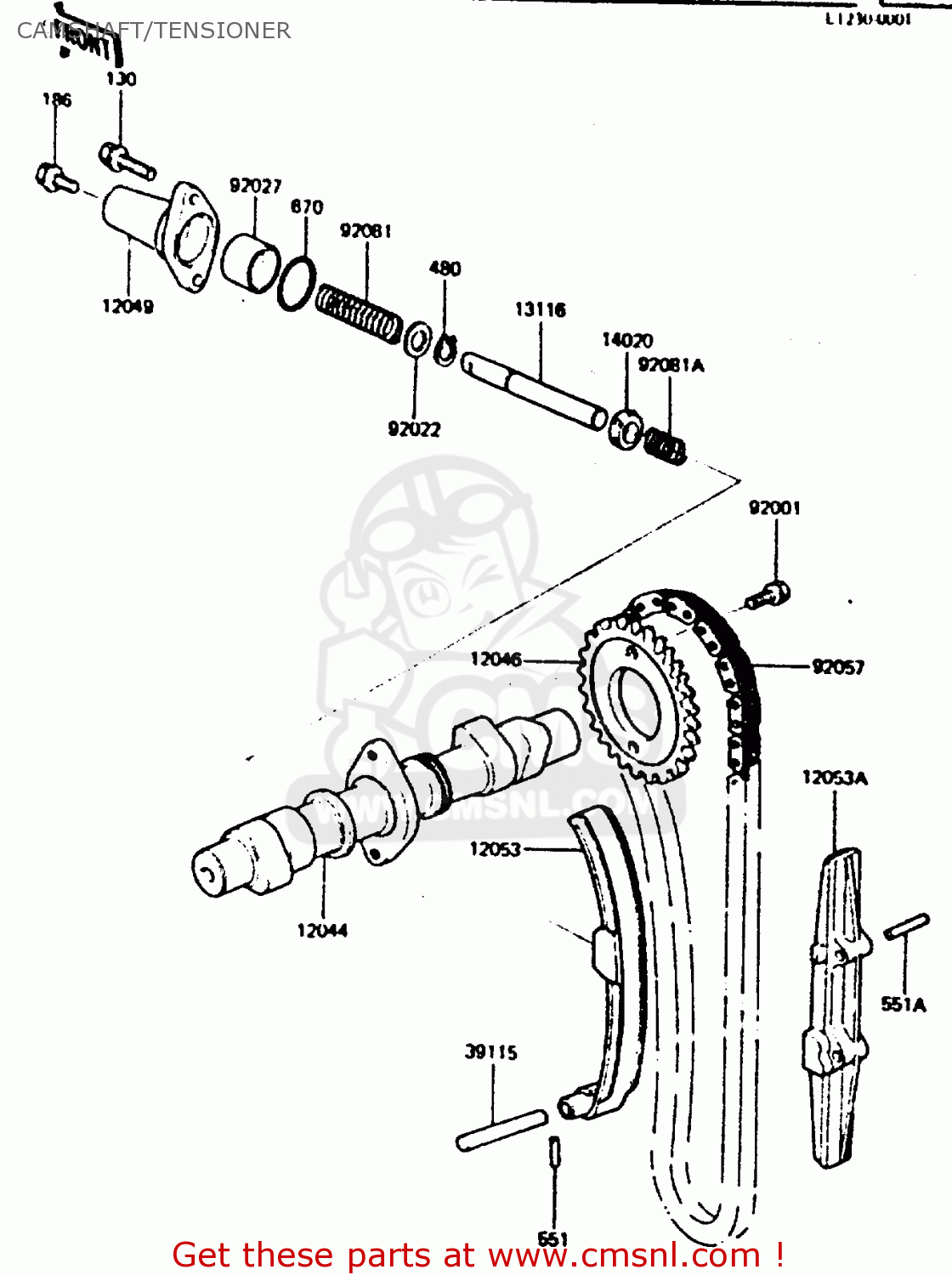

Camshaft/tensioner diagram Z440D6 1984 EUROPE UK SD WG
CAMSHAFT/TENSIONER Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
12044
120445001
ref: 12044
CAMSHAFT,VALVE
€ 114.50
12046
120461022
ref: 12046
SPROCKET,CAM,46T
€ 47.50
12049
120491010
ref: 12049
BRACKET,TENSIONER
€ 16.00
12053
120531041
ref: 12053
GUIDE-CHAIN,FR
€ 45.50
12053A
120531042
ref: 12053A
GUIDE,CAM CHAIN REAR
€ 25.50
13116
131161022
ref: 13116
ROD-PUSH,TENSIONER
€ 11.50
14020
140201002
ref: 14020
RETAINER,TENSIONER
€ 10.50
39115
391151001
ref: 39115
SHAFT,IDLER,9X55
€ 2.50
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
€ 2.50
92027
920271240
ref: 92027
COLLAR,TENSIONER
€ 10.00
92057
920571038
ref: 92057
CHAIN,CAMSHAFT,114L
€ 21.50
92081
920811206
ref: 92081
SPRING,TENSIONER
€ 3.00
92081A
920811206
ref: 92081A
SPRING,TENSIONER
€ 3.00
130
130Y0620
ref: 130
BOLT-FLANGED
€ 2.50
186
186X0614
ref: 186
BOLT-UPSET-WP
€ 2.00
480
480J1000
ref: 480
CIRCLIP-TYPE-C,10MM
€ 0.50
551
551A0325
ref: 551
PIN,DOWEL,3X25
€ 2.00
551A
551A0532
ref: 551A
PIN,DOWEL,5X32
€ 2.00
670
670B2021
ref: 670
O RING,21MM
€ 3.00
