OIL PUMP
Z440D6 1984 EUROPE UK SD WG

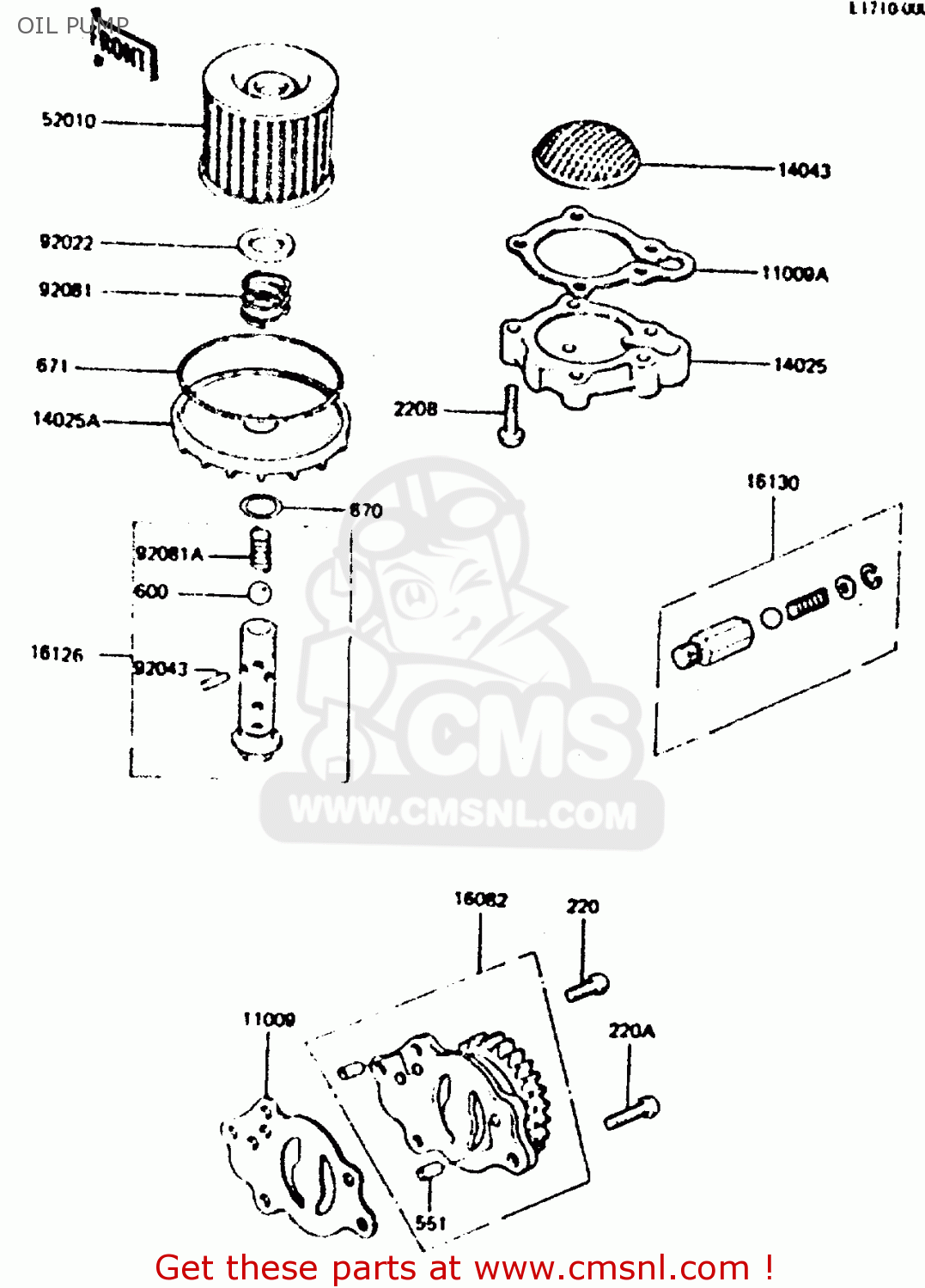

Oil pump diagram Z440D6 1984 EUROPE UK SD WG
OIL PUMP Z440D6 1984 EUROPE UK SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
110091014
ref: 11009
GASKET,OIL PUMP (MCA)
€ 2.50
11009A
16112003
ref: 11009A
GASKET,OIL STRNR COV (MCA)
€ 4.50
14025
16101003
ref: 14025
COVER,OIL STRAINER
€ 12.50
14025A
16101004
ref: 14025A
COVER,OIL FILTER
€ 31.00
14045
16111003
ref: 14045
STRAINER,OIL
€ 10.00
16082
160821001
ref: 16082
OIL PUMP ASSY
€ 87.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
52010
16099003
ref: 52010
FILTER,OIL
€ 6.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92043
92043111
ref: 92043
SPRING PIN
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
220B
220D0630
ref: 220B
SCREW-PAN-CROS
€ 2.00
551
551A0612
ref: 551
PIN-DOWEL,6X12
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
