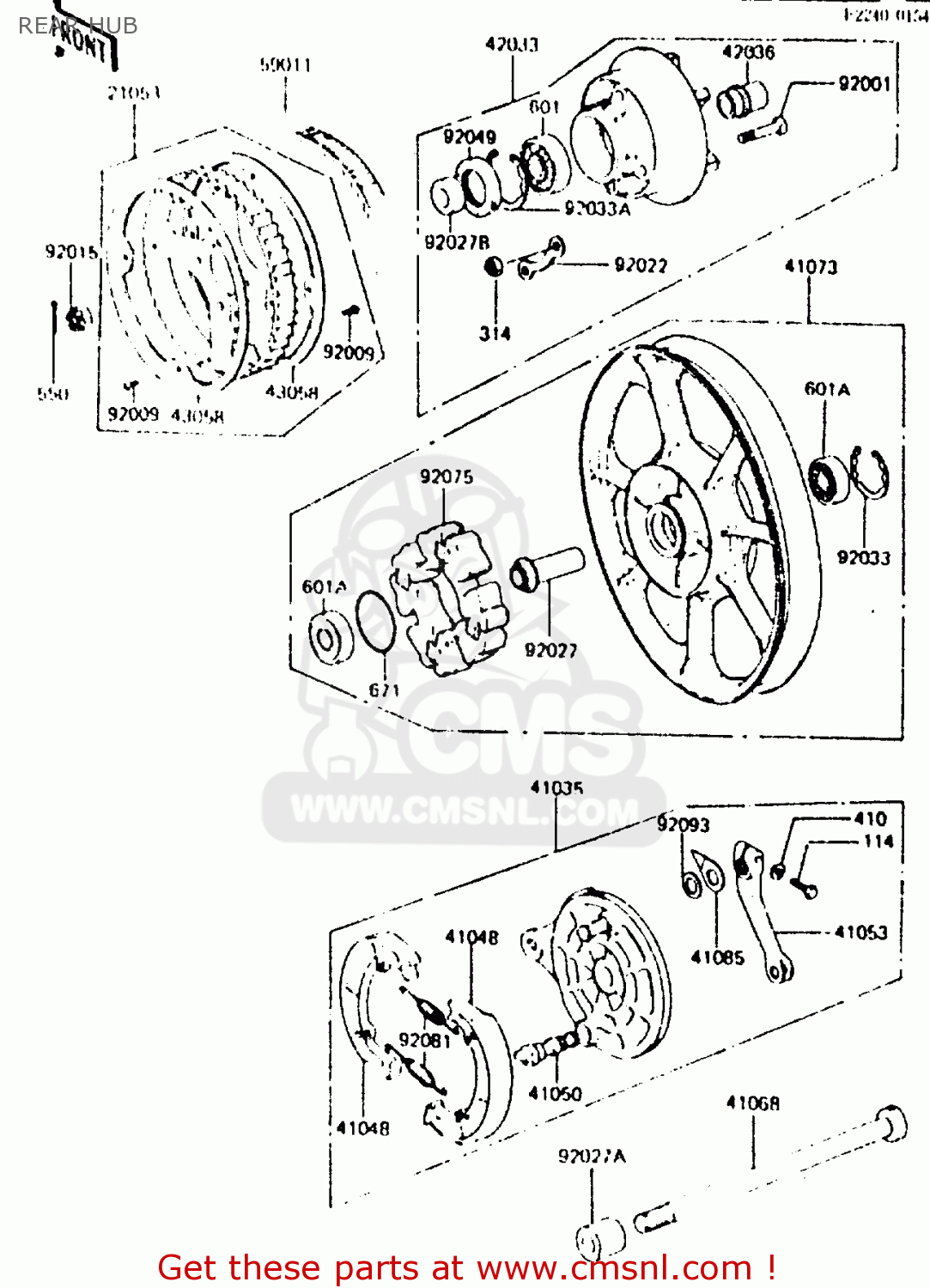

REAR HUB

ref

part #

description

quantity

21053

210531009
ref: 21053

SPROCKET-ASSY,RR HUB

€ 300.50

41035

410351088
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 212.50

41048

41048020
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501001
ref: 41050

CAM-BRAKE

€ 24.00

41053

410531001
ref: 41053

LEVER,BRAKE CAM

€ 27.50

41068

410681084
ref: 41068

AXLE,RR,L=286

€ 33.00

41073

41073117421
ref: 41073

WHEEL-ASSY,RR,SOLID,F

€ 480.00

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331040
ref: 42033

COUPLING-ASSY,RR HUB

€ 154.00

42036

420361002
ref: 42036

SLEEVE,COUPLING

€ 27.50

43058

430581018
ref: 43058

RING,HUB SPROCKET

€ 53.50

59011

590111009
ref: 59011

BELT,DRIVE,129T

€ 349.00

92001

92003156
ref: 92001

BOLT,RR SPROCKET FIT

€ 6.50

92009

920091167
ref: 92009

SCREW,5X10

€ 4.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92022

92088005
ref: 92022

WASHER,SPROCKET LOCK

€ 4.00

92027

920271196
ref: 92027

COLLAR,L=74

€ 10.00

92027A

920271198
ref: 92027A

COLLAR,RR AXLE,R.H.

€ 8.50

92027B

920271348
ref: 92027B

COLLAR,17X35X31.5

€ 11.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

92052006
ref: 92049

OIL SEAL WTC35527

€ 6.50

92075

920751008
ref: 92075

DAMPER,REAR HUB SHOCK

€ 53.50

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

601A

601B6303Z
ref: 601A

BEARING-BALL,#6303ZC3

€ 17.50

671

671B2560
ref: 671

O RING,60MM

€ 1.50

all assemblies
