STARTER MOTOR
VN800A5 1999 NETHERLANDS FG GR NR SD

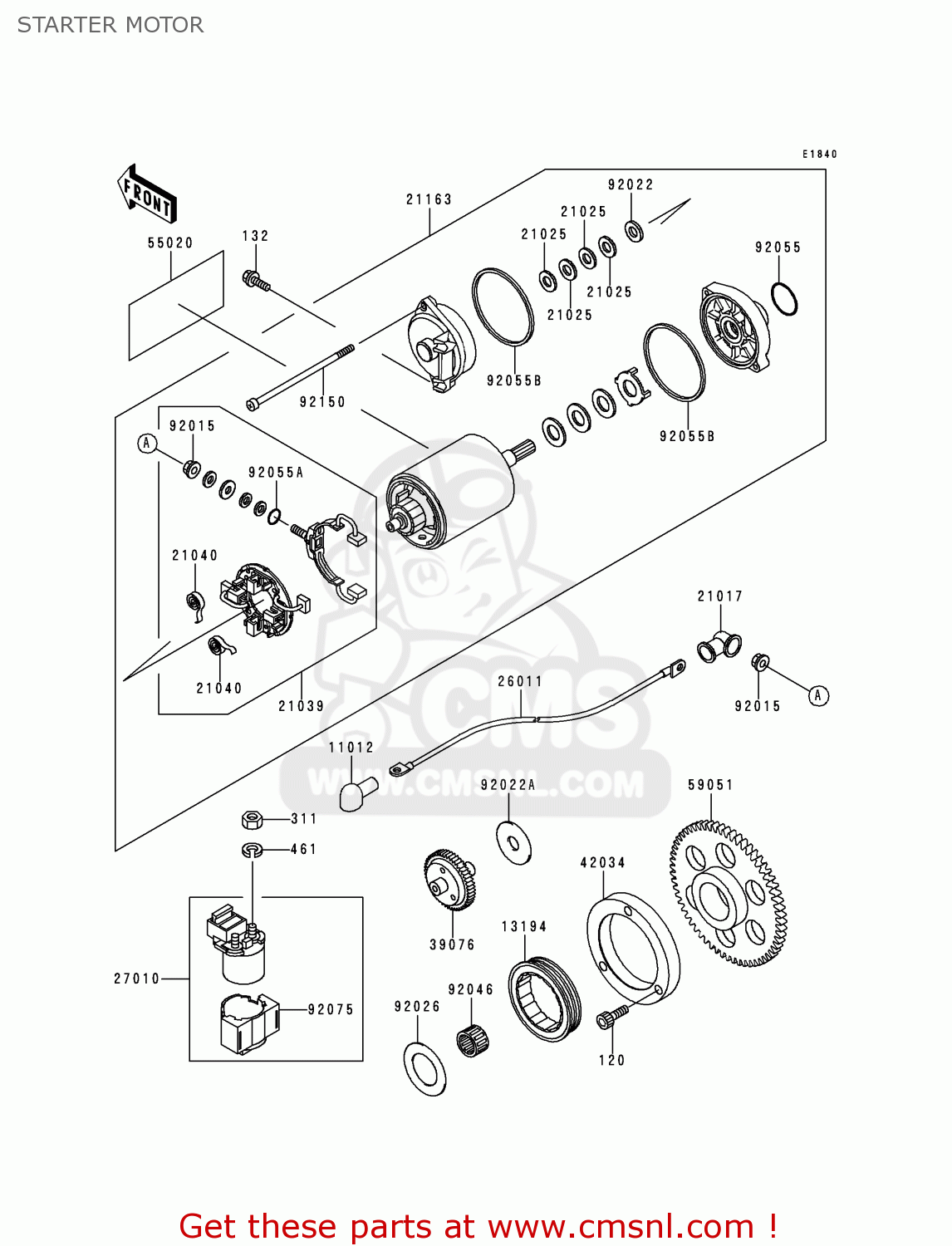

Starter motor diagram VN800A5 1999 NETHERLANDS FG GR NR SD
STARTER MOTOR VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
120
120Q0820
ref: 120
BOLT,ALLEN,8X20
€ 2.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13194
131941085
ref: 13194
CLUTCH-ONEWAY
€ 138.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
€ 5.50
21163
211631263
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111628
ref: 26011
WIRE-LEAD
€ 59.50
27010
270101281
ref: 27010
SWITCH,MAGNETIC
€ 111.00
39076
390761070
ref: 39076
LIMITER,STARTER IDLE
€ 90.50
42034
420341143
ref: 42034
COUPLING
€ 103.00
55020
550201589
ref: 55020
GUARD,STARTER MOTER
€ 4.50
59051
590511130
ref: 59051
GEAR-SPUR,STARTER,63T
€ 138.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92022A
920221664
ref: 92022A
WASHER,12.3X38X2.0
€ 4.50
92026
92026087
ref: 92026
SPACER,CONNECTING ROD
€ 6.50
92046
920461137
ref: 92046
BEARING-NEEDLE
€ 29.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92150
921501913
ref: 92150
BOLT,STARTER MOTOR
€ 6.50
