SIDE COVERS/CHAIN COVER

VN800A5 1999 NETHERLANDS FG GR NR SD

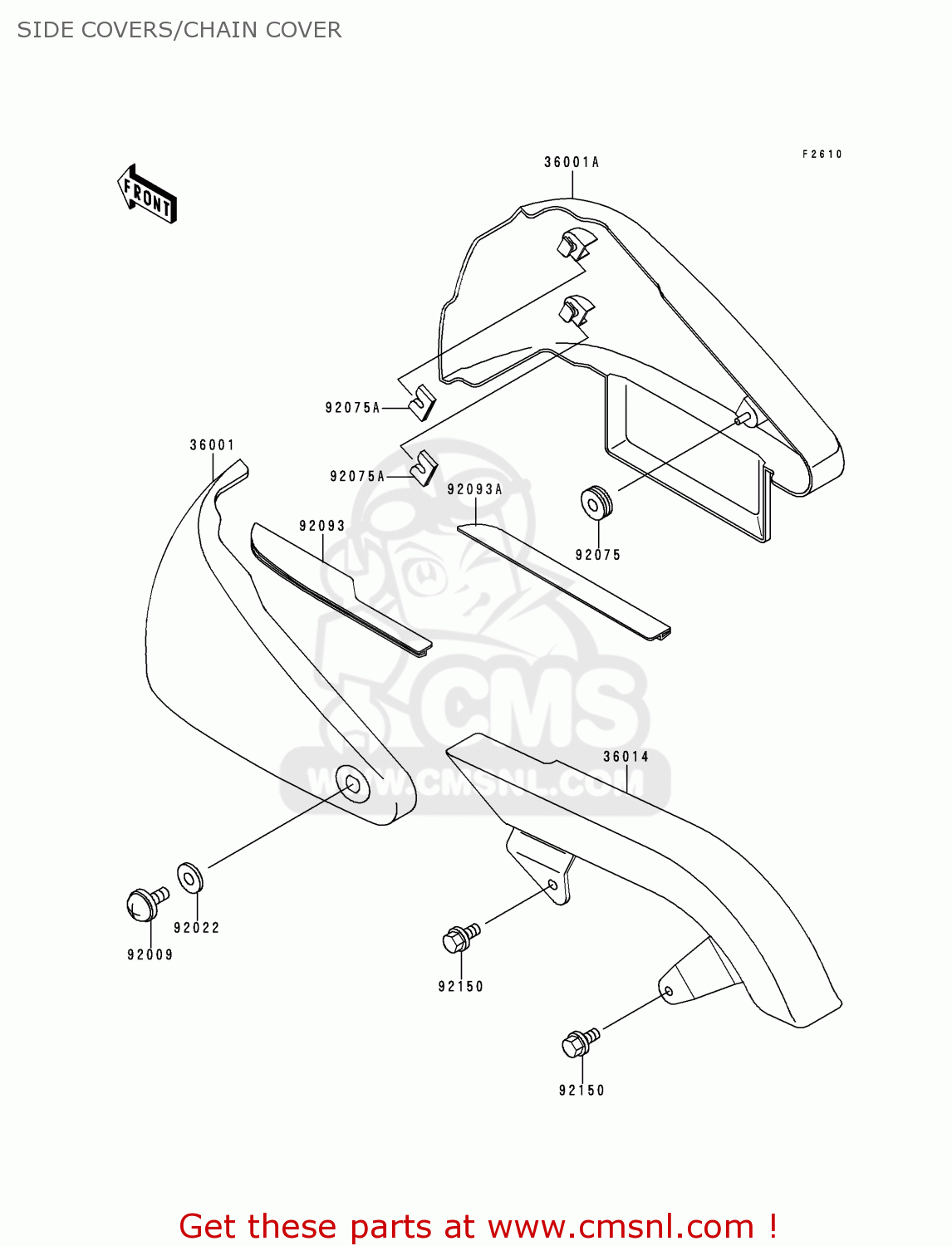

Side covers/chain cover diagram VN800A5 1999 NETHERLANDS FG GR NR SD

prices are in EUR

ref

part #

description

quantity

36001

360011550H8
ref: 36001

COVER-SIDE,LH,EBONY

€ 121.50

36001A

360011551H8
ref: 36001A

COVER-SIDE,RH,EBONY

€ 121.50

36014

360141198
ref: 36014

CASE-CHAIN

€ 79.50

92009

920091663
ref: 92009

SCREW

€ 2.50

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92075

920751629
ref: 92075

DAMPER,SEAT COVER KIT

€ 3.00

92075A

920751967
ref: 92075A

DAMPER

€ 3.50

92093

920931405
ref: 92093

SEAL,SIDE COVER,LH

€ 7.50

92093A

920931406
ref: 92093A

SEAL,SIDE COVER,RH

€ 7.50

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00

SIDE COVERS/CHAIN COVER

all assemblies
