FENDERS
VN800A5 1999 NETHERLANDS FG GR NR SD

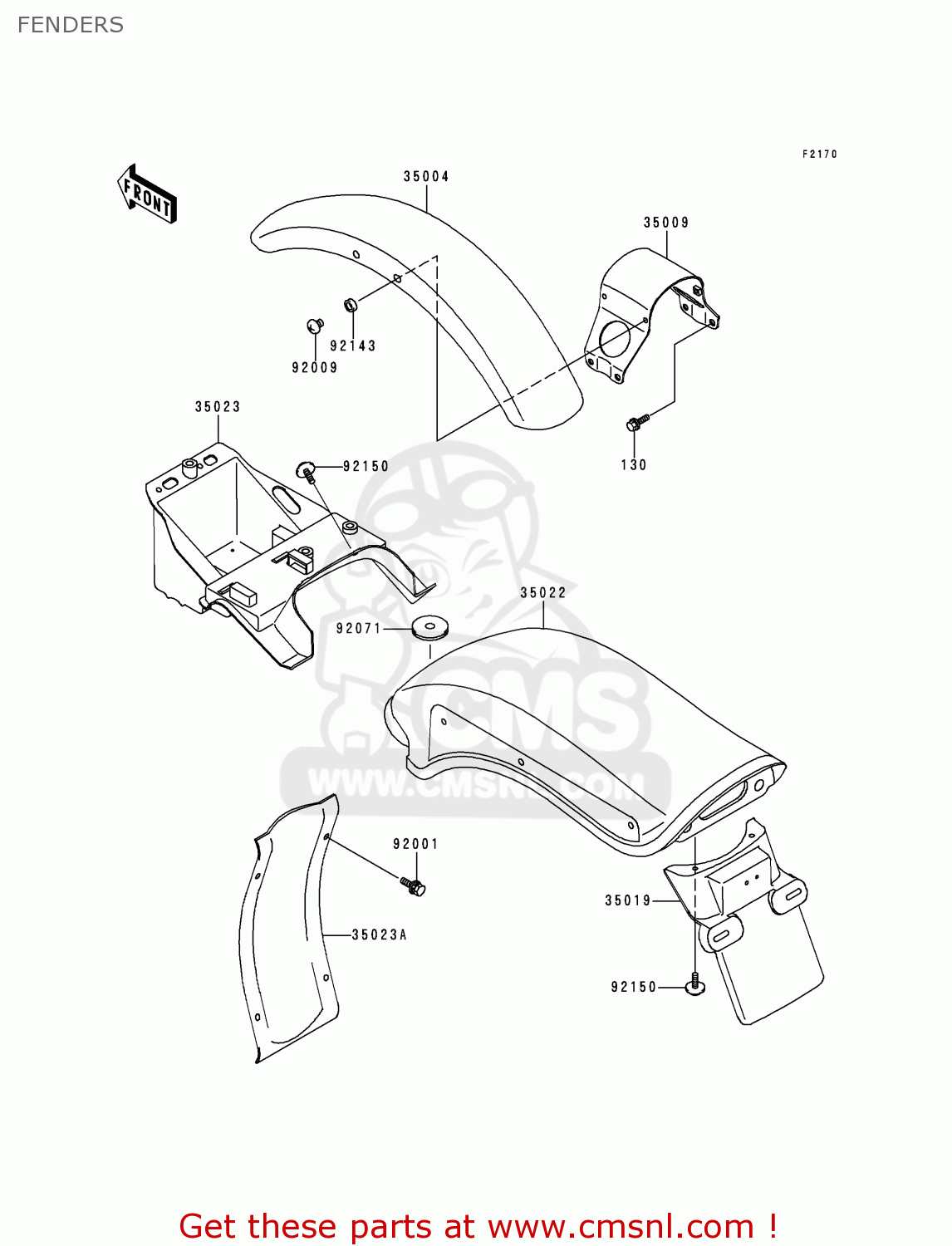

Fenders diagram VN800A5 1999 NETHERLANDS FG GR NR SD
FENDERS VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
130
130J0814
ref: 130
BOLT-FLANGED,8X14
€ 2.50
35004
350041329B1
ref: 35004
FENDER-FRONT,F.RED
€ 124.00
35009
350091106B1
ref: 35009
BRACE,FRONT FENDER,F.
€ 50.50
35019
350191341
ref: 35019
FLAP,RR
€ 34.50
35022
350221318B1
ref: 35022
FENDER-COMP-REAR,RR,F
€ 306.00
35023
350231407
ref: 35023
FENDER-REAR,FR
€ 52.50
35023A
350231417
ref: 35023A
FENDER-REAR
€ 14.50
92001
920011765
ref: 92001
BOLT,6X20
€ 3.00
92009
920091744
ref: 92009
SCREW,6X12
€ 2.00
92071
920711228
ref: 92071
GROMMET
€ 4.00
92143
921431307
ref: 92143
COLLAR
€ 2.00
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
