BRAKE PEDAL
VN800A5 1999 NETHERLANDS FG GR NR SD

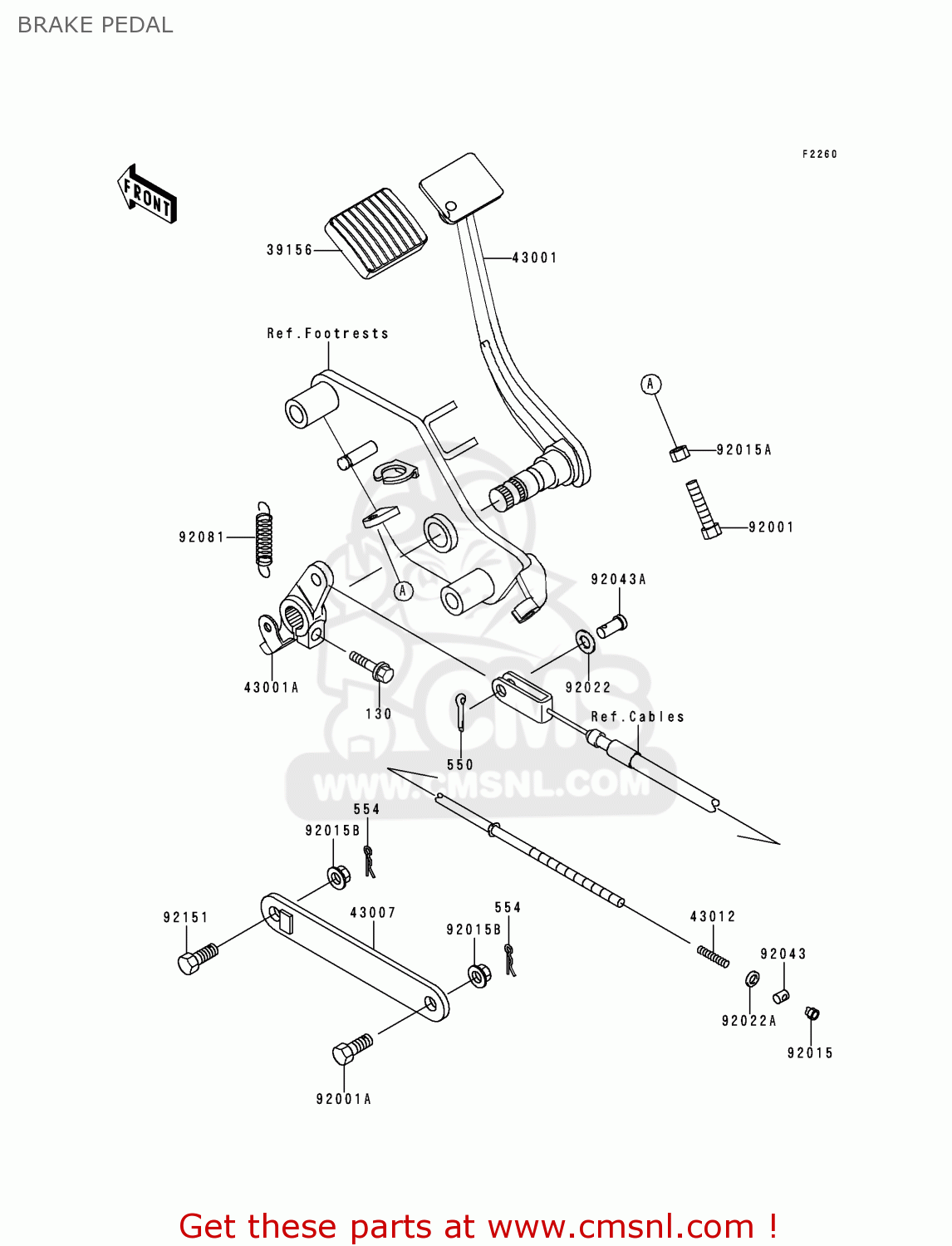

Brake pedal diagram VN800A5 1999 NETHERLANDS FG GR NR SD
BRAKE PEDAL VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
39156
391561071
ref: 39156
PAD,BRAKE PEDAL
€ 7.50
43001
430011222
ref: 43001
LEVER-BRAKE,PEDAL
€ 83.50
43001A
430011356
ref: 43001A
LEVER-BRAKE
€ 26.00
43007
430071179
ref: 43007
ROD-TORQUE
€ 11.50
43012
43012001
ref: 43012
SPRING,BRAKE ROD
€ 3.00
92001
920011090
ref: 92001
BOLT,HEX HEAD,6X25
€ 2.50
92001A
920011519
ref: 92001A
BOLT,10X37
€ 4.50
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92015A
920151391
ref: 92015A
NUT,6MM
€ 2.00
92015B
920151428
ref: 92015B
NUT,FLANGED,10MM
€ 3.00
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92022A
920221588
ref: 92022A
WASHER,6.3X10.2X1.6
€ 2.50
92043
92043065
ref: 92043
PIN-BRAKE ROD
€ 3.50
92043A
920431013
ref: 92043A
PIN
€ 6.50
92081
920811845
ref: 92081
SPRING,BRAKE PEDAL
€ 6.50
92151
921511125
ref: 92151
BOLT
€ 4.00
