GEAR CHANGE DRUM/SHIFT FORK(S)

VN800A5 1999 NETHERLANDS FG GR NR SD

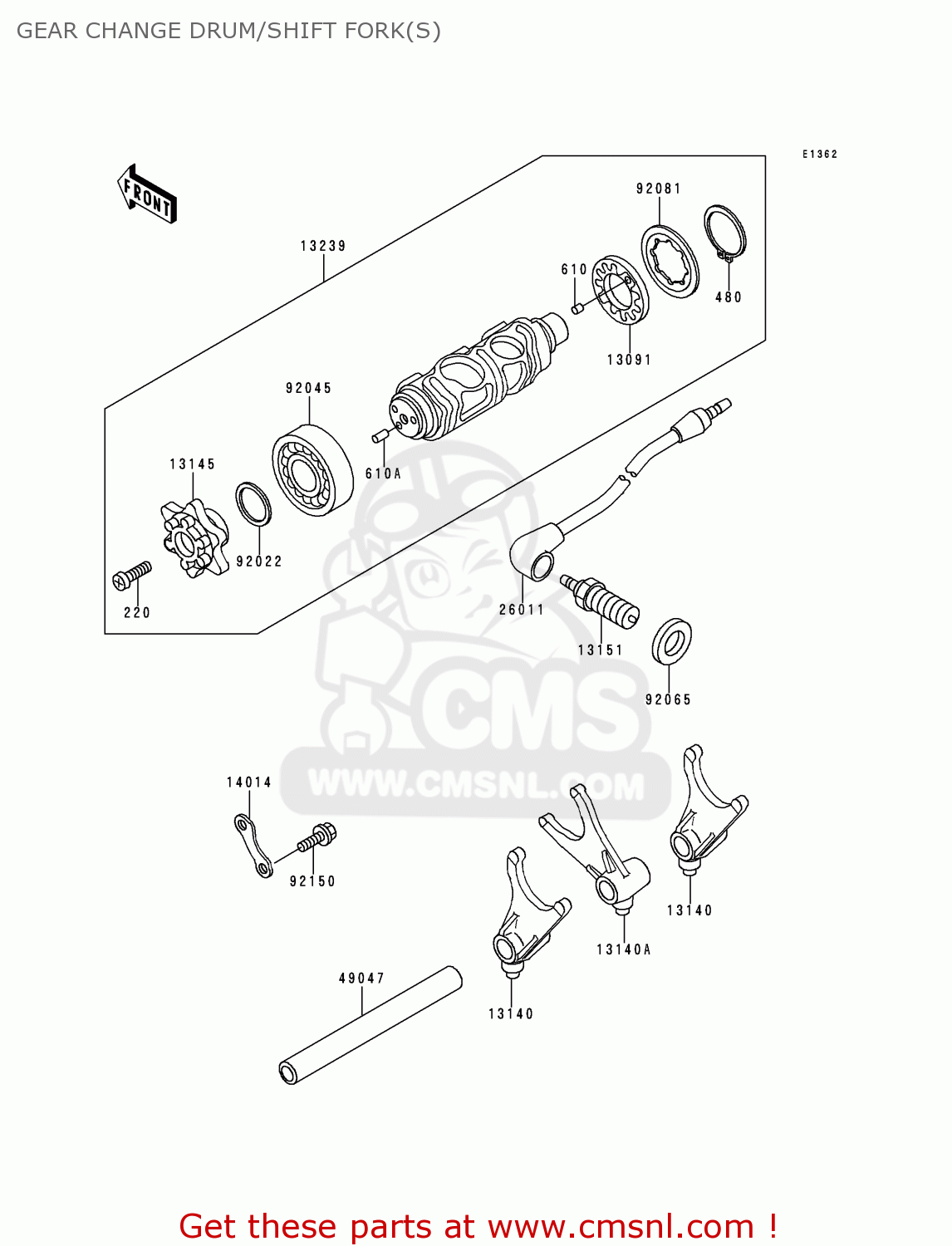

Gear change drum/shift fork(s) diagram VN800A5 1999 NETHERLANDS FG GR NR SD

prices are in EUR

ref

part #

description

quantity

220

220B0630
ref: 220

SCREW-PAN HEAD,6X30

€ 2.50

480

480J2200
ref: 480

CIRCLIP-TYPE-C,22MM

€ 3.00

610

610A0404
ref: 610

ROLLER,4X4

€ 2.50

610A

610A0410
ref: 610A

ROLLER,4X10

€ 2.50

13091

130911389
ref: 13091

HOLDER,CHANGE DRUM

€ 16.00

13140

131401126
ref: 13140

FORK-SHIFT

€ 66.50

13140A

131401138
ref: 13140A

FORK-SHIFT

€ 76.00

13145

131451051
ref: 13145

CAM-CHANGE DRUM

€ 36.00

13151

131511085
ref: 13151

SWITCH-COMP

€ 16.00

13239

132391126
ref: 13239

DRUM-ASSY-CHANGE

€ 189.00

14014

140141014
ref: 14014

PLATE-POSITION

€ 2.50

26011

260111627
ref: 26011

WIRE-LEAD

€ 6.50

49047

490471059
ref: 49047

ROD-SHIFT

€ 26.00

92022

92022161
ref: 92022

WASHER-THRUST,25MM

€ 7.00

92045

920451030
ref: 92045

BEARING-BALL,16005

€ 27.00

92065

92065058
ref: 92065

GASKET, 10,5X16X1 (NAS)

€ 2.50

92081

920811895
ref: 92081

SPRING

€ 6.50

92150

921501868
ref: 92150

BOLT,6X12

€ 2.00
