CRANKCASE BOLT PATTERN

VN800A5 1999 NETHERLANDS FG GR NR SD

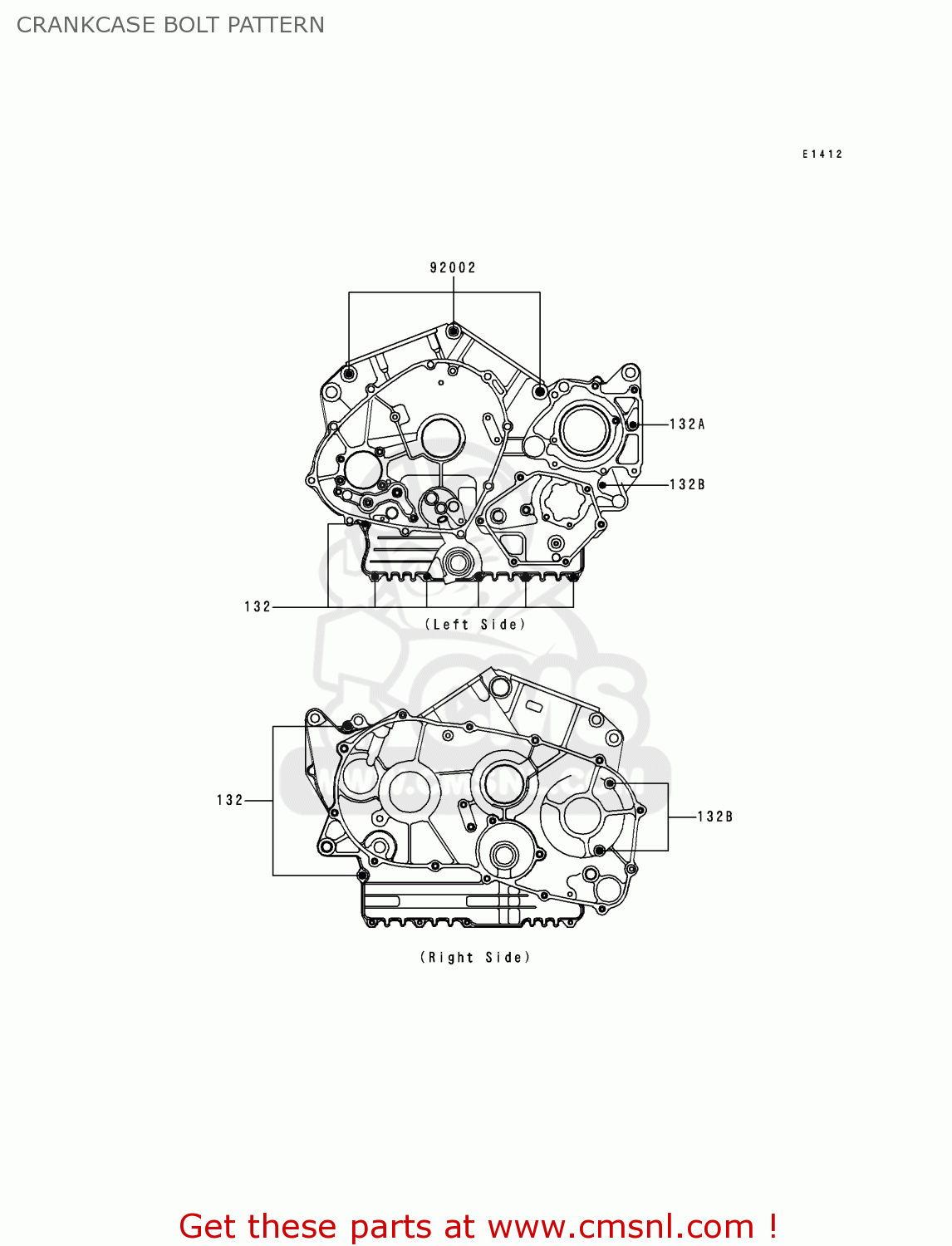

Crankcase bolt pattern diagram VN800A5 1999 NETHERLANDS FG GR NR SD

CRANKCASE BOLT PATTERN VN800A5 1999 NETHERLANDS FG GR NR SD

CRANKCASE BOLT PATTERN VN800A5 1999 NETHERLANDS FG GR NR SD

prices are in EUR

ref

part #

description

quantity

132

132J0630
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0640
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132J0660
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

92002

920021542
ref: 92002

BOLT,10X80

€ 6.50
