RIGHT ENGINE COVER(S)

VN800A5 1999 NETHERLANDS FG GR NR SD

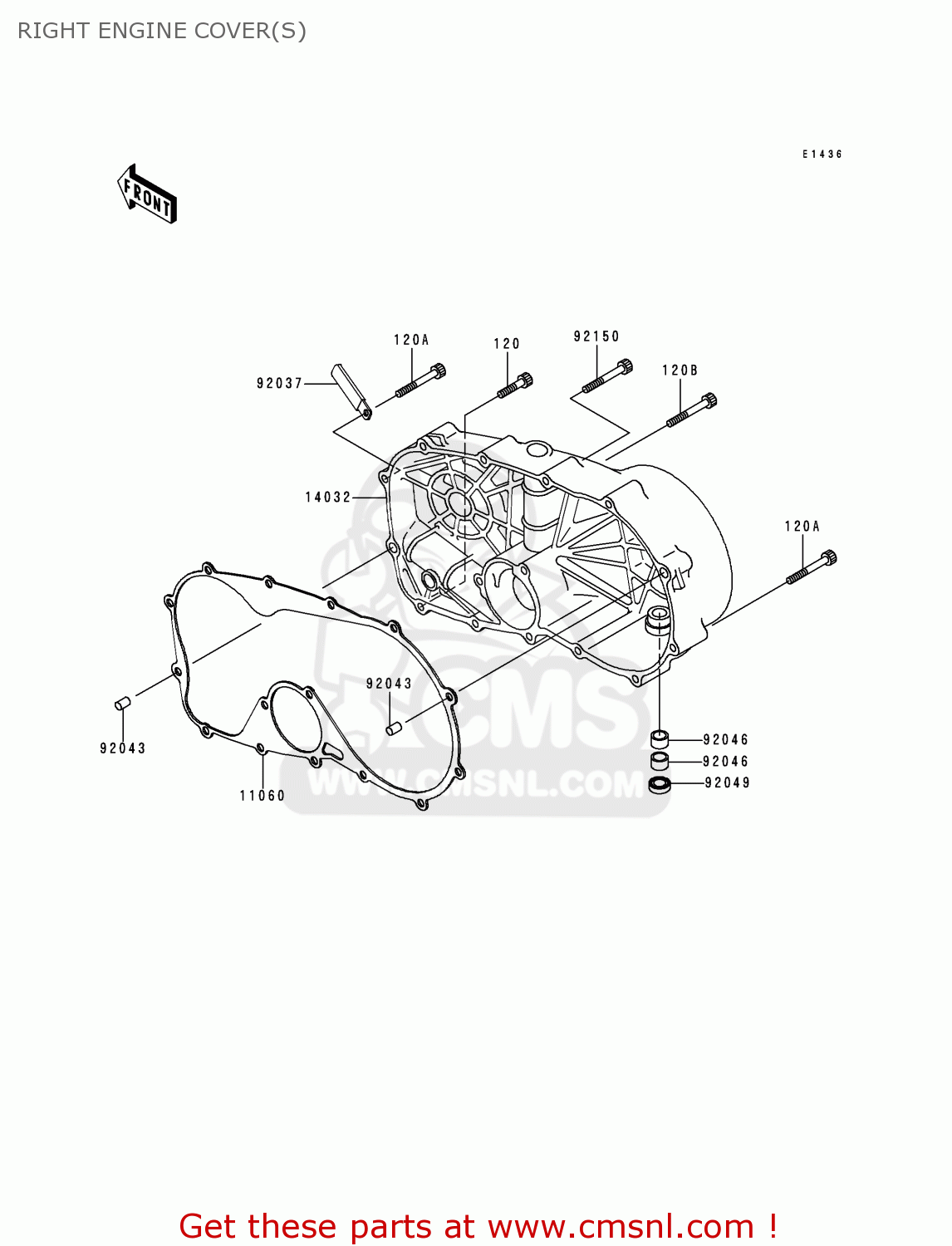

Right engine cover(s) diagram VN800A5 1999 NETHERLANDS FG GR NR SD

prices are in EUR

ref

part #

description

quantity

120

120R0630
ref: 120

BOLT-SOCKET

€ 2.50

120A

120R0650
ref: 120A

BOLT-SOCKET

€ 3.00

120B

120R0665
ref: 120B

BOLT-SOCKET

€ 4.50

11060

110601090
ref: 11060

GASKET,CLUTCH COVER (NAS)

€ 31.50

14032

140321403
ref: 14032

COVER-CLUTCH

€ 318.50

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92046

920461010
ref: 92046

BEARING-NEEDLE,HK1210

€ 17.00

92049

920491271
ref: 92049

SEAL, OIL

€ 7.00

92150

921501436
ref: 92150

BOLT,SOCKET,6X50

€ 3.50
