HANDLEBAR
VN800A5 1999 NETHERLANDS FG GR NR SD

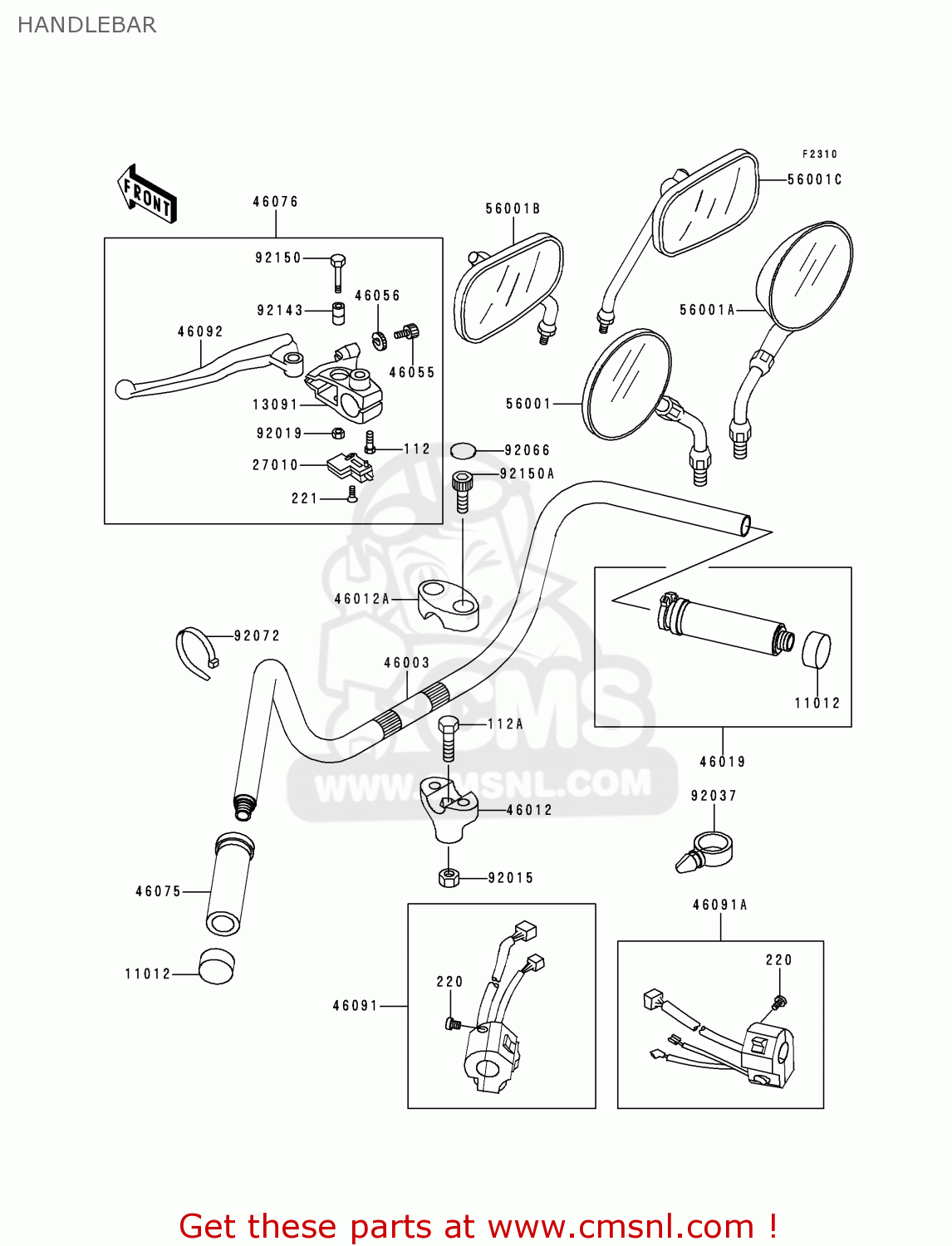

Handlebar diagram VN800A5 1999 NETHERLANDS FG GR NR SD
HANDLEBAR VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
112
112G0620
ref: 112
BOLT 6X20
€ 1.00
112A
112H1065
ref: 112A
BOLT-UPSET,10X65
€ 5.00
220
220E0516
ref: 220
SCREW-PAN-CROS
€ 2.50
221
221B0320
ref: 221
SCREW-CSK-CROS,3X20
€ 3.50
11012
110121975
ref: 11012
CAP,GRIP END
€ 14.00
13091
130911671
ref: 13091
HOLDER,CLUTCH LEVER
€ 41.50
27010
270101268
ref: 27010
SWITCH,CLUTCH
€ 20.50
46003
460031459
ref: 46003
HANDLE
€ 99.00
46012
460121272
ref: 46012
HOLDER-HANDLE,LWR
€ 84.50
46012A
460121273
ref: 46012A
HOLDER-HANDLE,UPP
€ 50.00
46019
460191086
ref: 46019
GRIP-ASSY,THROTTLE
€ 51.50
46055
46055003
ref: 46055
SCREW-CABLE ADJUST
€ 11.50
46056
46056005
ref: 46056
NUT-LOCK
€ 6.00
46075
460751074
ref: 46075
GRIP,LH
€ 20.50
46076
460761174
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 99.00
46091
460911638
ref: 46091
HOUSING-ASSY-CONTROL,
€ 224.00
46091A
460911639
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 166.00
46092
460921164
ref: 46092
LEVER-GRIP,CLUTCH
€ 22.50
56001
560011269
ref: 56001
FGNLSD
MIRROR-ASSY,LH
€ 71.50
56001A
560011270
ref: 56001A
FGNLSD
MIRROR-ASSY,RH
€ 71.50
56001B
560011407
ref: 56001B
GRNR
MIRROR-ASSY,LH
€ 71.50
56001C
560011408
ref: 56001C
GRNR
MIRROR-ASSY,RH
€ 71.50
92015
920151717
ref: 92015
NUT,LOCK,FLANGED,10MM
€ 6.50
92019
92019008
ref: 92019
NUT-LOCK,6MM
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
€ 5.00
92066
920661285
ref: 92066
PLUG
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92143
921431351
ref: 92143
COLLAR
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
€ 9.00
92150A
921501942
ref: 92150A
BOLT,SOCKET,10X23
€ 4.50
