FRONT HUB
VN800A5 1999 NETHERLANDS FG GR NR SD

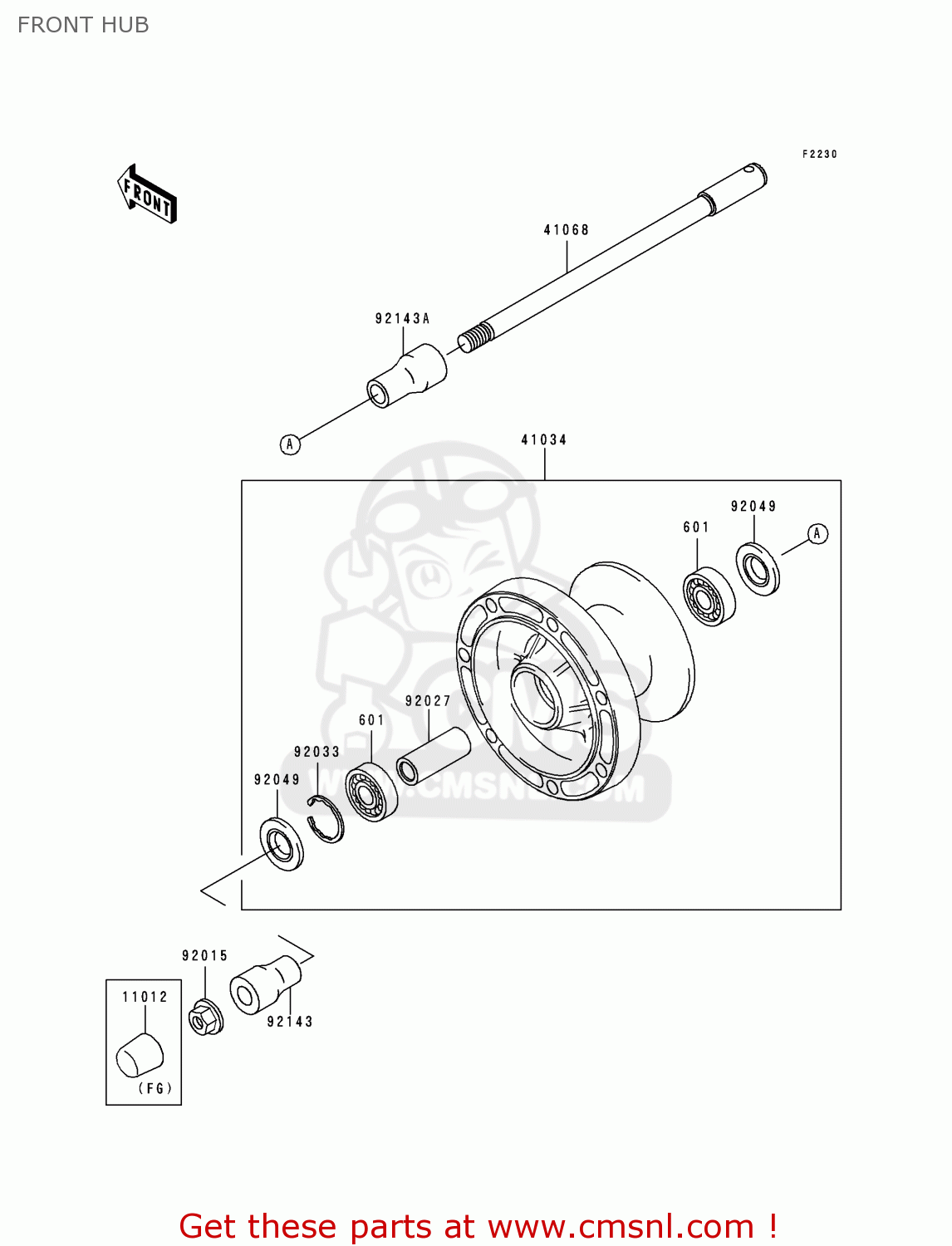

Front hub diagram VN800A5 1999 NETHERLANDS FG GR NR SD
FRONT HUB VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
11012
110121591
ref: 11012
FG
CAP,AXLE NUT
€ 3.00
41034
410341247
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 493.50
41068
410681243
ref: 41068
AXLE,FR
€ 63.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92027
920271866
ref: 92027
COLLAR,L=70
€ 14.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491058
ref: 92049
OIL SEAL,BJN22425
€ 7.50
92143
921431737
ref: 92143
COLLAR,FR AXLE,LH,L=4
€ 23.00
92143A
921431738
ref: 92143A
COLLAR,FR AXLE,RH,L=5
€ 20.50
