CARBURETOR
VN800A5 1999 NETHERLANDS FG GR NR SD

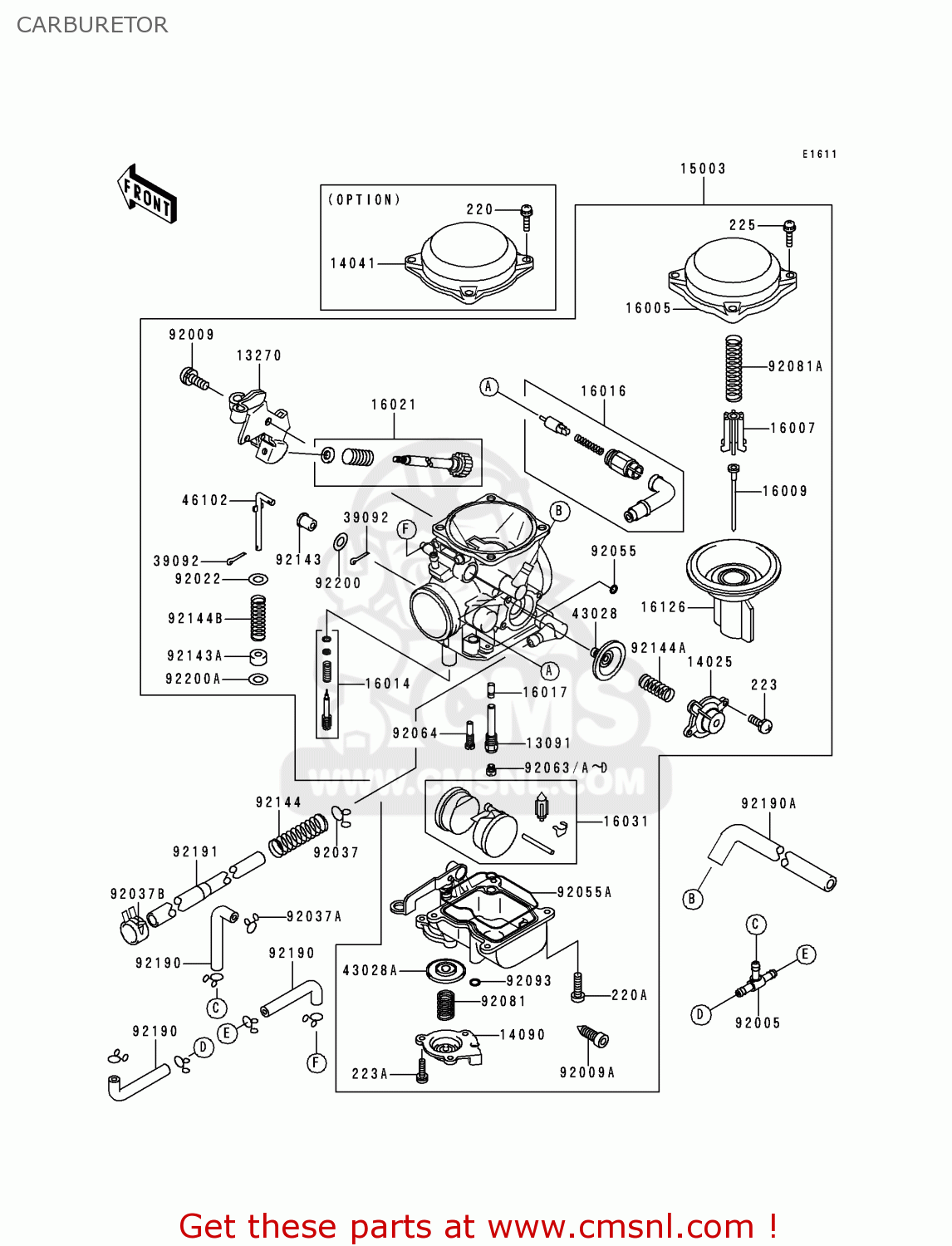

Carburetor diagram VN800A5 1999 NETHERLANDS FG GR NR SD
CARBURETOR VN800A5 1999 NETHERLANDS FG GR NR SD
×
prices are in EUR
ref
part #
description
quantity
13091
130911930
ref: 13091
HOLDER
€ 20.50
13270
132701513
ref: 13270
PLATE
€ 31.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
14041
140411076
ref: 14041
TOP-CHAMBER
€ 68.00
14090
140901635
ref: 14090
COVER,ACCELERATOR
€ 40.50
15003
150031127
ref: 15003
CARBURETOR-ASSY
€ 1,024.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091861
ref: 16009
NEEDLE-JET
€ 26.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161100
ref: 16016
PLUNGER,STARTER
€ 32.00
16017
160171378
ref: 16017
JET-NEEDLE
€ 28.50
16021
160211207
ref: 16021
SCREW-THROTTLE STOP
€ 83.00
16031
160311089
ref: 16031
FLOAT
€ 47.50
16126
161261170
ref: 16126
VALVE,VACUUM
€ 168.00
39092
390921058
ref: 39092
PIN-HAIR
€ 2.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
43028A
430281077
ref: 43028A
DIAPHRAGM
€ 62.50
46102
461021385
ref: 46102
ROD
€ 13.00
92005
920051017
ref: 92005
FITTING,TUBE
€ 6.50
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221480
ref: 92022
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371104
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
920371610
ref: 92037A
CLAMP
€ 1.50
92037B
920372082
ref: 92037B
CLAMP
€ 1.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92055A
920551518
ref: 92055A
RING-O,FLOAT CHAMBER
€ 15.00
92063
920631013
ref: 92063
MAIN JET,#140
€ 9.00
92063A
920631014
ref: 92063A
MAIN JET,#135
€ 9.50
92063B
920631015
ref: 92063B
MAIN JET,#138
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641174
ref: 92064
JET-PILOT
€ 12.50
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
€ 8.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
223
223C0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223D0410
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
92081A
920811826
ref: 92081A
SPRING,VACUUM VALVE
€ 16.50
92093
920931046
ref: 92093
SEAL-"U"RING
€ 4.00
92143
921431790
ref: 92143
COLLAR
€ 1.50
92143A
921431791
ref: 92143A
COLLAR
€ 5.50
92144
921441874
ref: 92144
SPRING
€ 4.50
92144A
921441885
ref: 92144A
SPRING
€ 7.50
92144B
921441886
ref: 92144B
SPRING
€ 6.00
92190
921901610
ref: 92190
TUBE,4X9X80
€ 3.00
92190A
921901619
ref: 92190A
TUBE,7X12X540,GREEN
€ 17.50
92191
921911041
ref: 92191
TUBE
€ 10.50
92200
922001274
ref: 92200
WASHER
€ 1.50
92200A
922001275
ref: 92200A
WASHER
€ 1.50
