TRANSMISSION ('82-'83 A3/A4)
KZ550A4 1983 USA CANADA

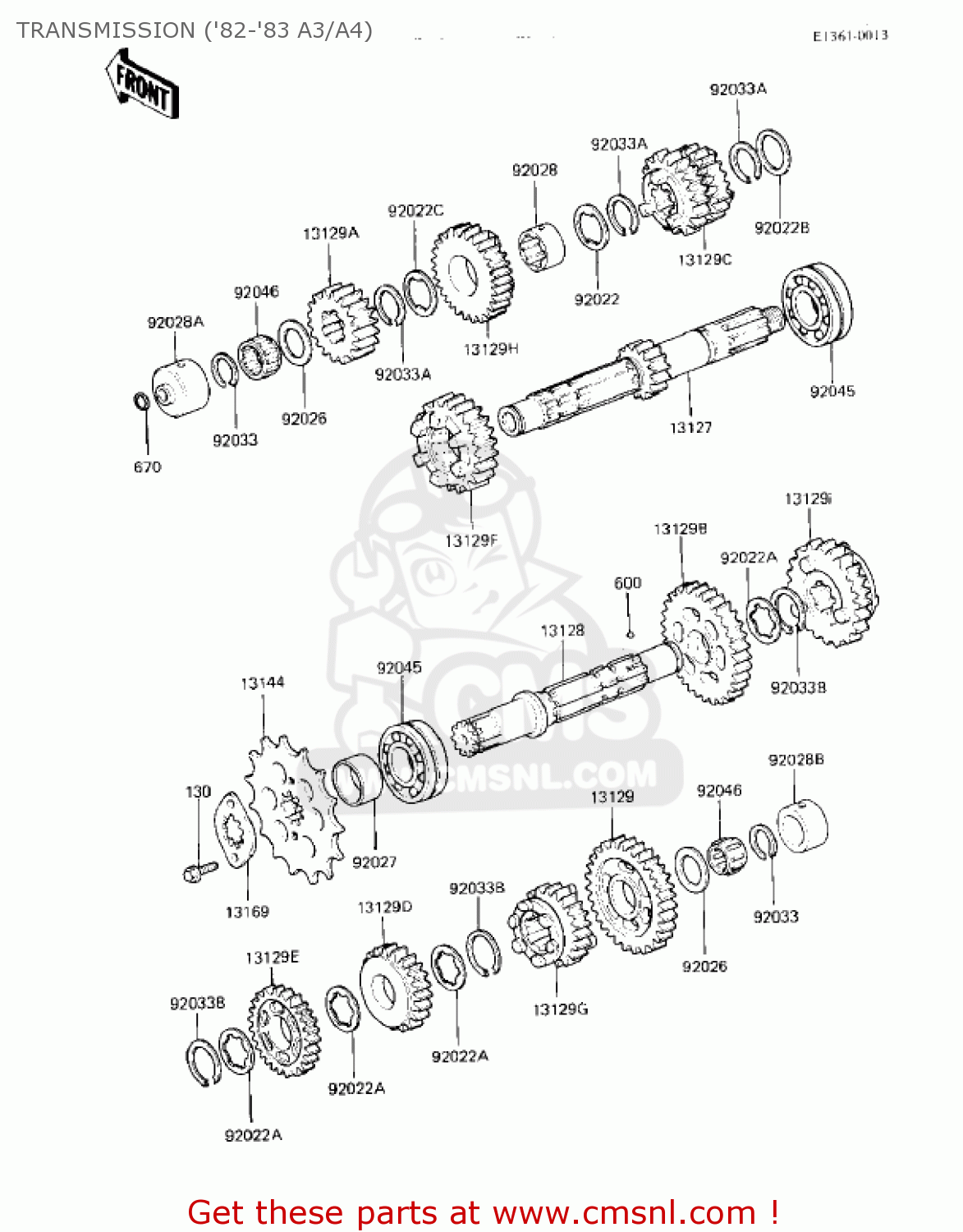

Transmission ('82-'83 a3/a4) diagram KZ550A4 1983 USA CANADA
TRANSMISSION ('82-'83 A3/A4) KZ550A4 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271008
ref: 13127
SHAFT,DRIVE,14T
€ 265.00
13128
131281009
ref: 13128
SHAFT-TRANSMISSION OU
€ 163.00
13129
131291076
ref: 13129
GEAR,OUTPUT LOW,36T
€ 148.50
13129A
131291077
ref: 13129A
2ND GEAR,DRIVE,18T
€ 79.50
13129B
131291078
ref: 13129B
2ND GEAR,OUTPUT,32T
€ 75.50
13129C
132601195
ref: 13129C
GEAR,INPUT 3RD&4TH,21
€ 103.00
13129D
131291080
ref: 13129D
GEAR,OUTPUT 3RD,29T
€ 111.50
13129E
131291081
ref: 13129E
4TH GEAR,OUTPUT,27T
€ 101.00
13129F
131291082
ref: 13129F
5TH GEAR,DRIVE,26T
€ 56.50
13129G
131291083
ref: 13129G
GEAR,OUTPUT 5TH,25T
€ 114.50
13129H
131291658
ref: 13129H
GEAR,INPUT TOP,27T
€ 107.00
131291
131291662
ref: 131291
GEAR,OUTPUT TOP,23T
€ 45.00
13144
131441016
ref: 13144
SPROCKET-OUTPUT,16T
€ 26.50
13169
132701060
ref: 13169
PLATE,SPROCKET
€ 5.50
92022
920221072
ref: 92022
WASHER,TOOTHED,25.3X3
€ 2.00
92022A
920221139
ref: 92022A
WASHER,TOOTHED,28.3X3
€ 4.00
92022B
92022161
ref: 92022B
WASHER-THRUST,25MM
€ 7.00
92022C
92024033
ref: 92022C
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92027
920271106
ref: 92027
COLLAR,25X32X23.5
€ 8.00
92028
920281552
ref: 92028
BUSHING,INPUT TOP GEA
€ 17.50
92028A
920281032
ref: 92028A
BUSHING,INPUT SHAFT
€ 56.00
92028B
92028180
ref: 92028B
BUSHING,OUTPUT SFT
€ 21.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461030
ref: 92046
BEARING-NEEDLE,VS20/1
€ 23.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
670
670B1508
ref: 670
O RING,8MM
€ 1.00
